Microphone preamp with high pass filter
FetHead Filter is a high quality, phantom powered in-line preamp. It has a built-in high pass filter at 220Hz cutoff (other frequencies are available on request), this reduces the excessive low frequency/proximity effects
that some microphones exhibit, such as long motor ribbon mics. The filter elements are not directly in the signal path but are applied to the components which set the gain of the FetHead Filter's amplifier. This ensures frequency dependence and that the sonic characteristics of the FetHead Filter are preserved.
Which microphones benefit
Proximity effect is a phenomenon that leads to an increase in low frequency response as you move the mic closer to the source. The closer you get, the bigger the bass boost. This effect might be cool to achieve a very deep radio voice, but on other sources it might be problematic. Our Fethead Filter helps to tame excessive low frequency buildup and guarantees clear sound.
Operation

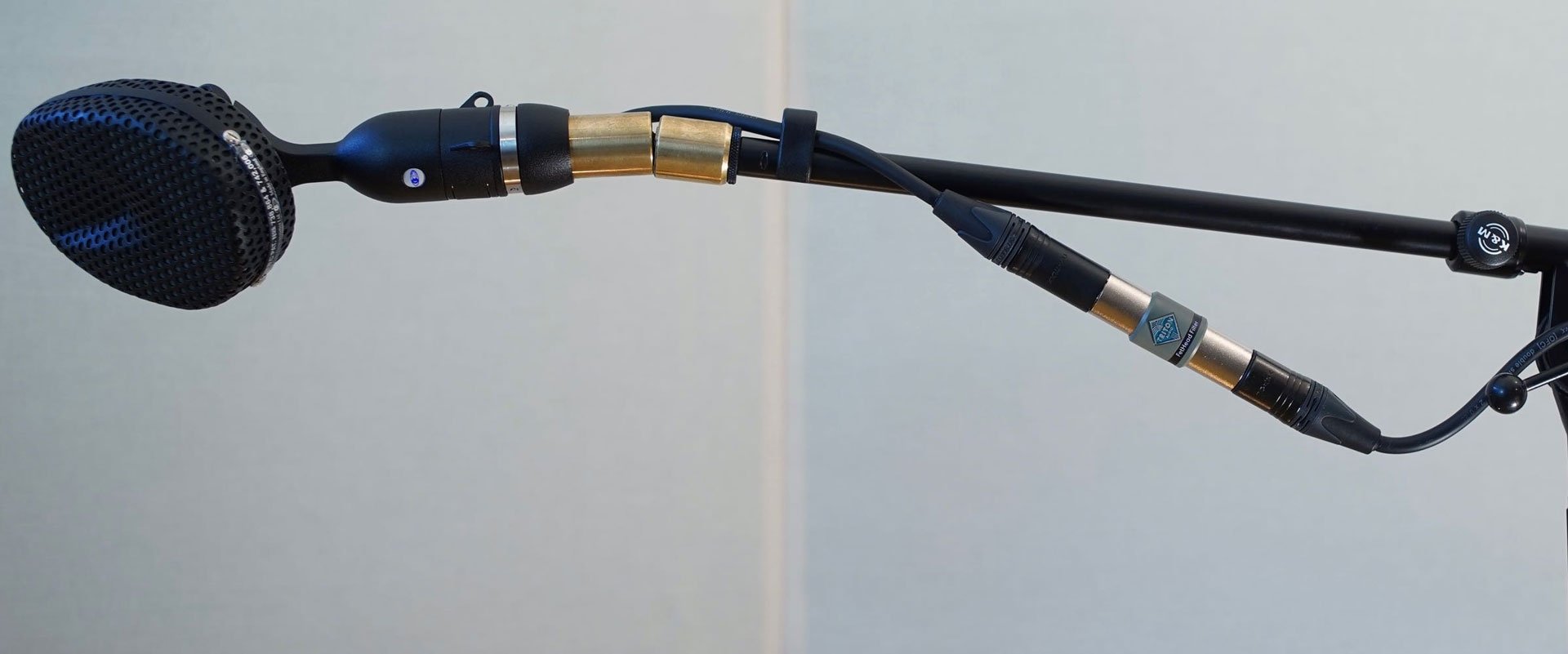

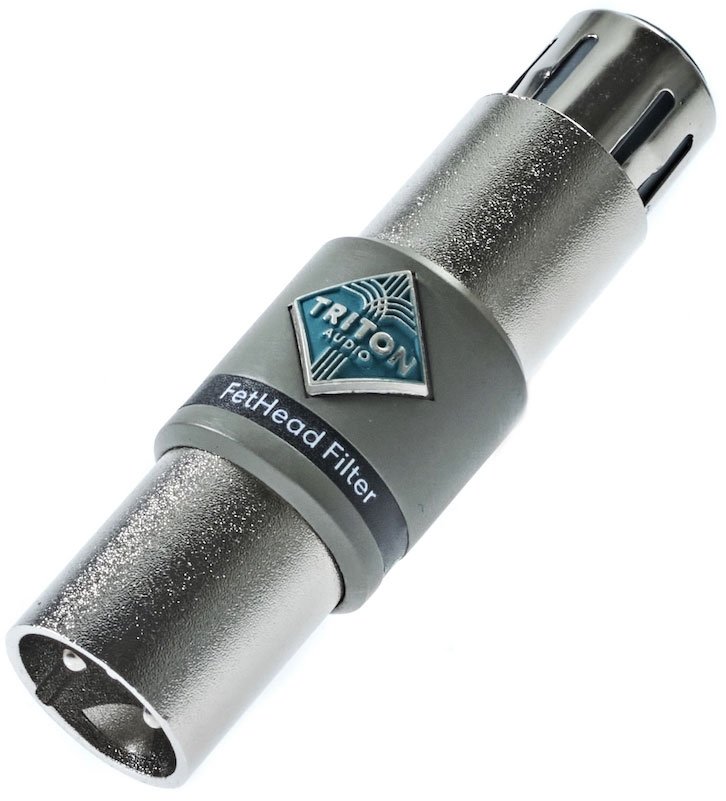

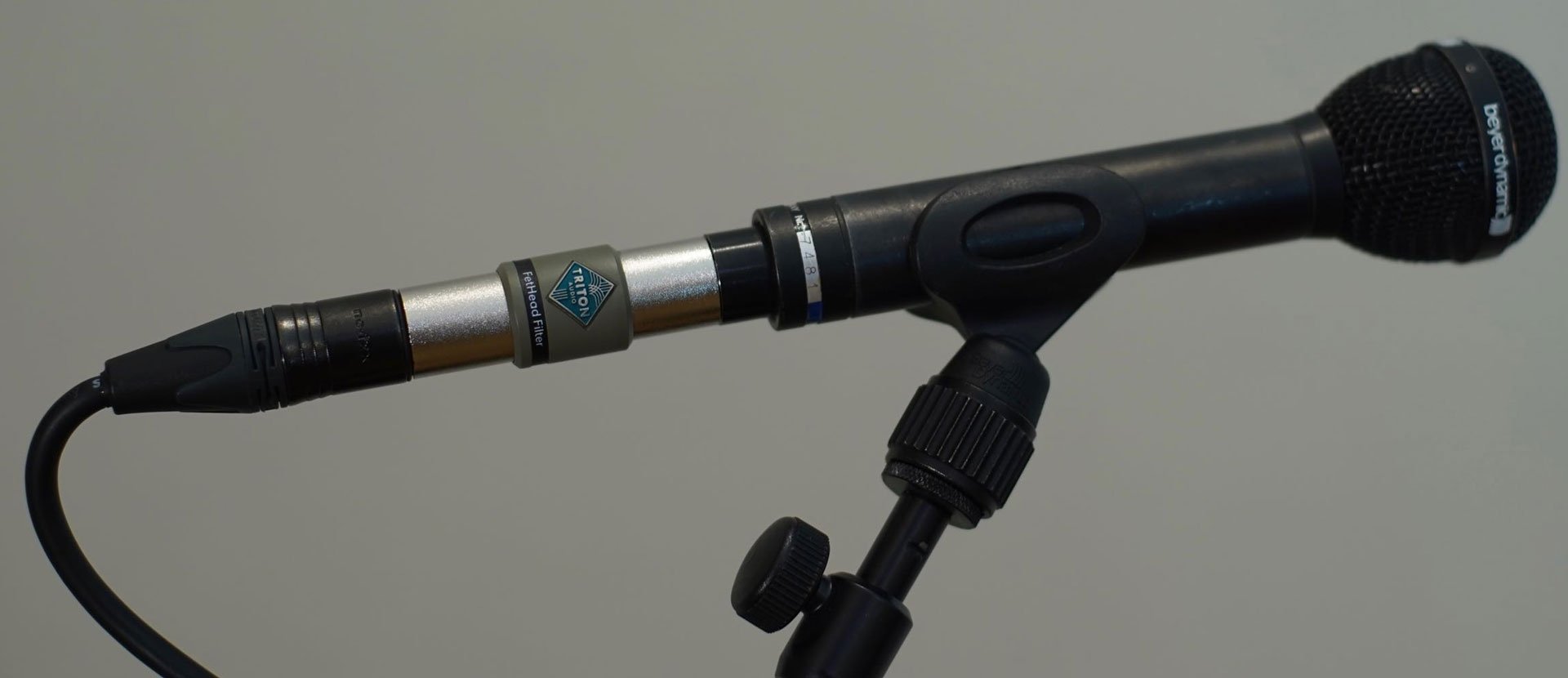

Your Fethead Filter will latch straight onto any XLR equipped microphone, or anywhere else in the signal path between microphone and preamp/mixer. The electronics are housed in a robust metal chassis with a balanced female XLR input and a balanced male XLR output, rugged enough for use at home, in the studio or on tour.
Protects the microphone
Some older ribbon microphones do not tolerate phantom power. Fethead Filter uses phantom power to power its circuitry, but doesn’t pass phantom power to the microphone, so rest assured your ribbon mics are safe.
Features:
- For ribbon and dynamic microphones
- Adds 27dB of clean gain
- 6dB per octave high pass filter
- Reduce extreme proximity effect
Spec:
- For ribbon and dynamic microphones
- Low noise Class A FET amplifier
- 27 dB amplification (@3000 Ohm load)
- Balanced XLR input/output
- 6dB per octave high-pass filter
- Corner frequency of 220Hz (custom frequencies on request)
- frequency response 30hz-100khz (+/- 1dB)
- Z-in 22 kΩ
- Circuit is powered with 48V phantom power
