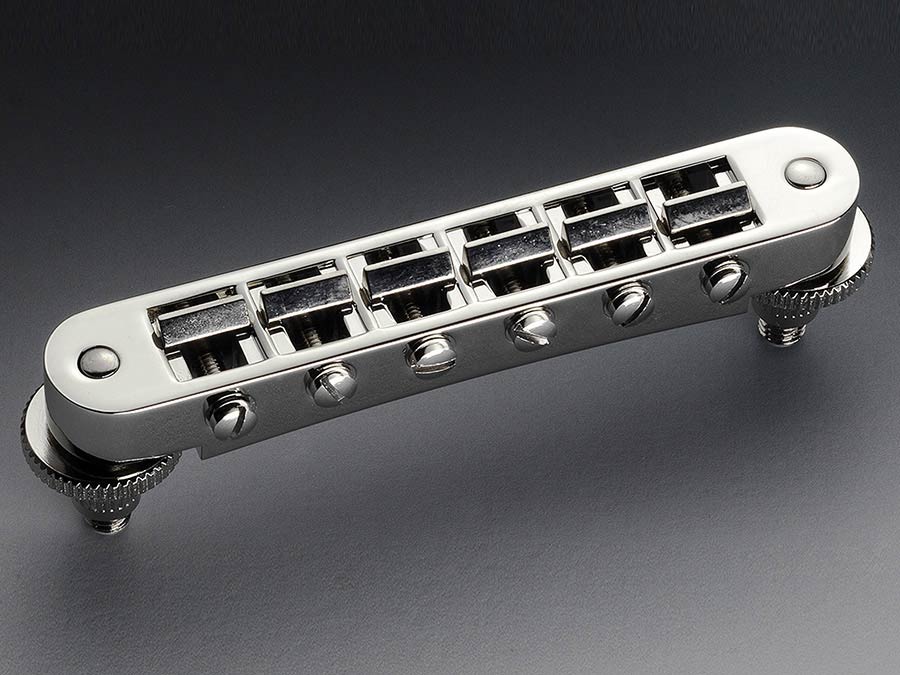

Schaller GTM Tune-O-Matic Guitar Bridge - Nickel

High-quality Tune-o-matic bridge for all Les Paul™* type guitars

Compatible with post spacings from 74.0 - 74.5 mm

Features special retainer springs to prevent bridge rattle or string buzz

Saddles supplied without preconfigured string grooves allowing for individual string spacing

Saddles are from brass

Slant angle to be determined by guitarmaker based on scale length and string gauge.

Installation: the screws have to show to the tailpiece.

(*Les Paul is a protected trademark owned by Gibson Musical Instruments Corporation).

technical specification

distance height adjustment screws 74 - 74,5mm, string radius 12“ (usable for fretboard 12-16 inch), minimal G/d string height above body 13,7mm, weight 53g (70g with accessories), for lefty: yes
