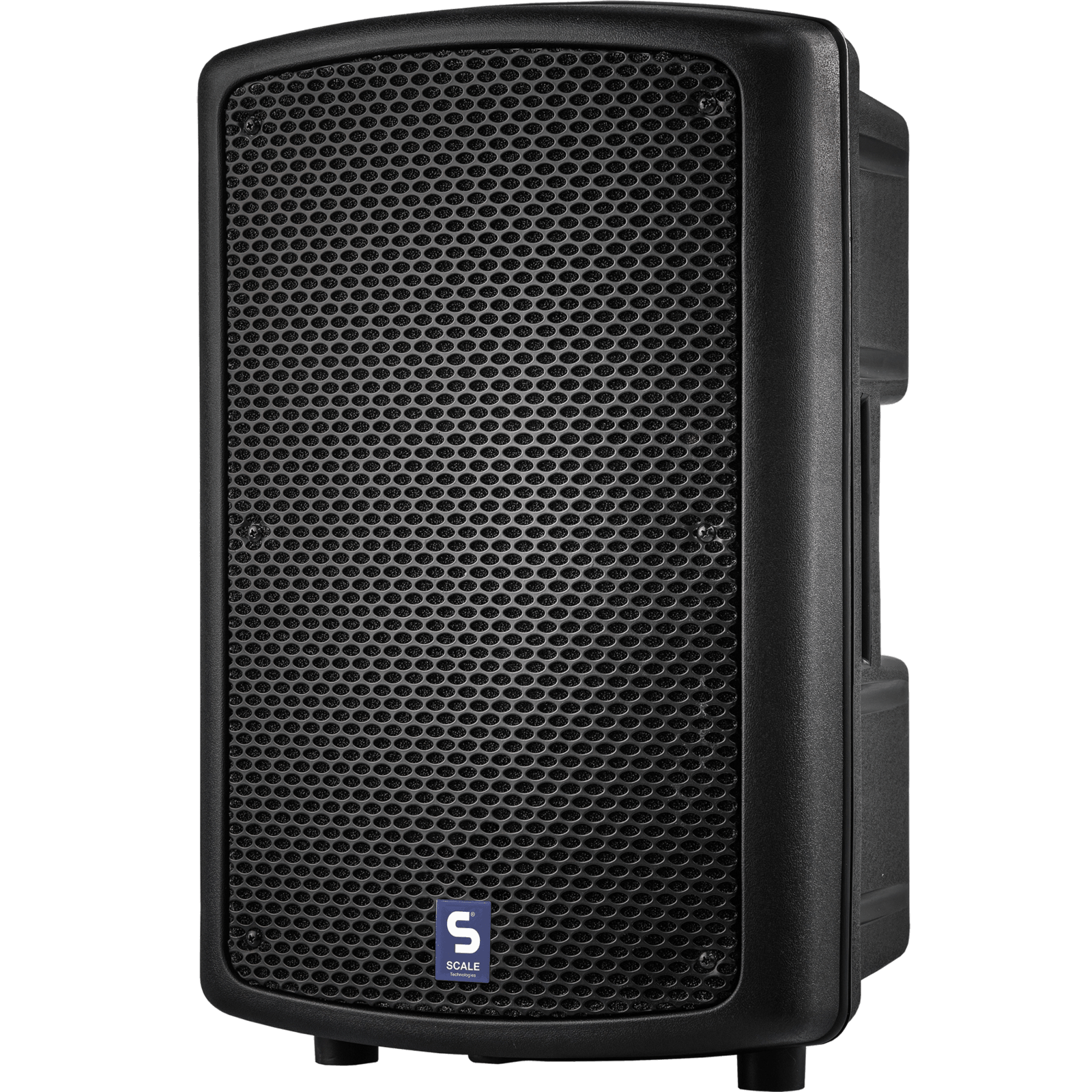

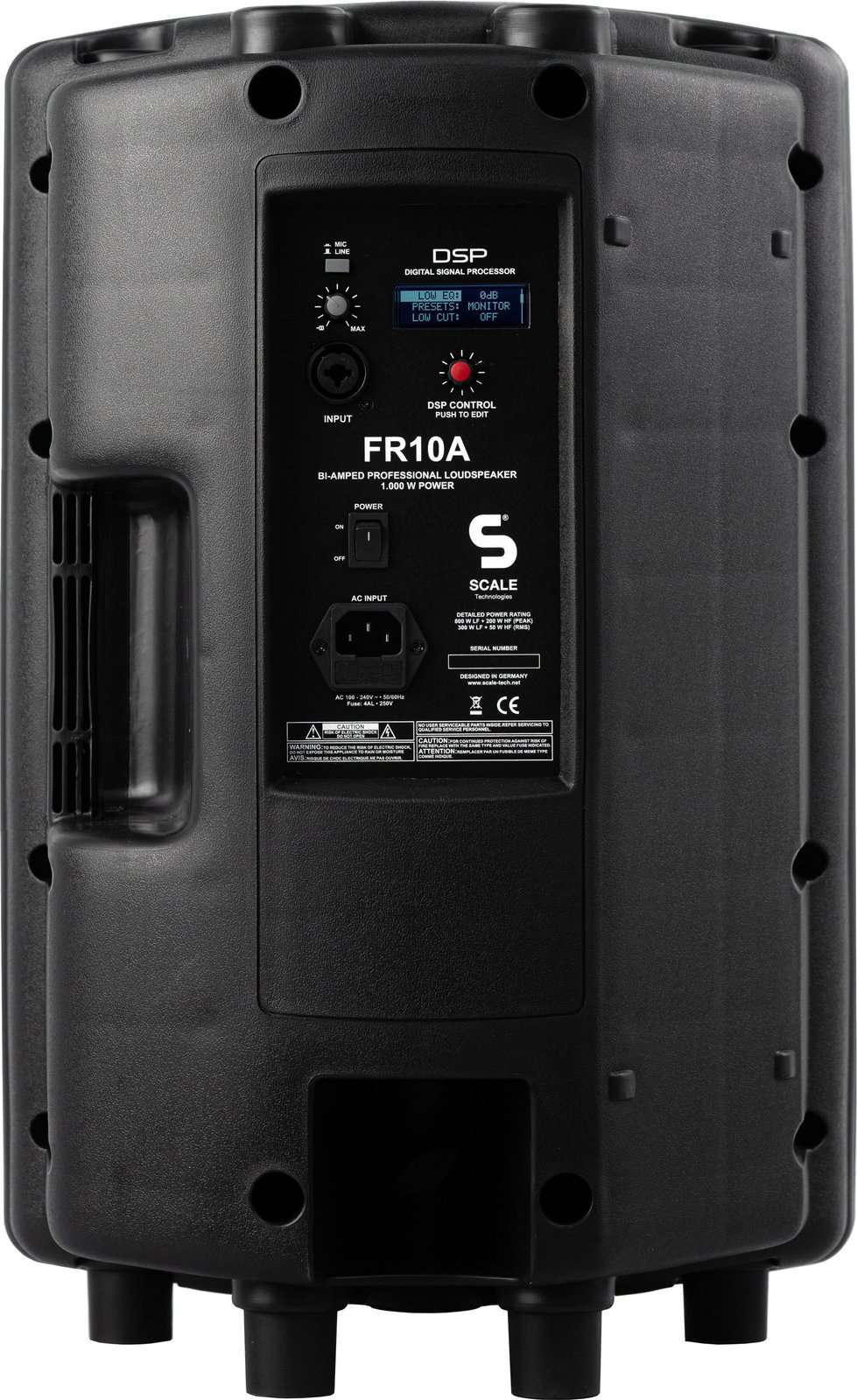

The FR series self-powered cabinets bring leading sound quality, precision control and stunning performance to a new level and offer best value. FR speakers are the perfect solution for DJs, musicians, clubs and basic installations. The multipurpose design enables the use as monitors as well. FR series are the ideal speakers when an exceptional full range, outstanding bass reproduction and accurate high frequency delivery are required.
YOUR PROFESSIONAL MATE ON STAGE
Every FR model can be used in the standard or stage monitor configuration. FR series speakers are ideal for the musician or sound provider. Cabinets are molded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From molding to the final texture, FR series offers maximum reliability and strength for intensive use.
POWERFUL CLASS D AMPLIFIERS / DSP powered
Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation but helps the fan-less heat dissipation. The integrated DSP manages all loudspeaker processing in 24bit, FiR processing, crossover, EQ, soft limiter, and dynamic bass boost.
Features:
- The 10″ speaker sounds punchy and loud
- The 1.35″ HF driver let the FR10A sound crystal clear
- Advanced housing material makes the FR10A super lightweight and rugged for rough everyday use
- Whether in your band room, on stage or wherever you want :The FR10A is ready-to-use within second
- Two Way Performance PA Loudspeaker
- 1000 watts with DSP w/Fast Scroll Control
- Newest Class D amplification ensures high efficiency, low noise floor, light weight and high power. 24 bit DSP processing.
- Light weight, ++++ enclosure built for travel.
- DSP PRESET: Music, Live, Voice, DJ’s.
Applications:
- Live sound
- Education
- Mobile DJ
- Bars and Pubs
- Install sound
- Rehearsal
- Conferences / Voice
Specification:
- Amplifier power LF/MF (RMS) 300 W
- Amplifier power HF (RMS) 50 W
- Amplifier power TOTAL (Peak) 1.000 W
- Amplifier type LF/MF Class-D
- Amplifiers type HF Class-D
- DSP Channels 1
- Analog input channels 1
- Input connectors 1 x combo XLR / TS
- Link connectors NO
- High driver 1 x 1.35″ compression driver (Scale FRC10v1)
- Low/mid transducer 1 x 10″ woofer (SCALE FRW10v1)
- Coverage HxV nominal 90° x 60°
- SPL max. 123 dB
- Frequency response (-10dB) 65Hz-20kHz
- Factory reset function Yes

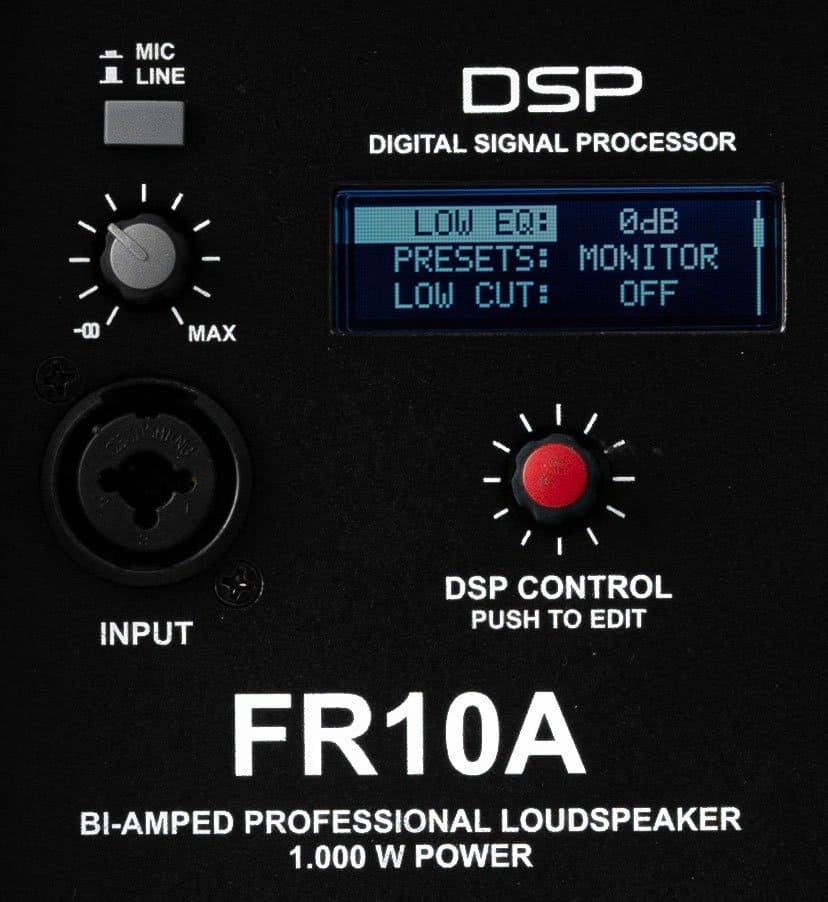

- Digital master level 70 steps (-60/+10)
- Low Cut functionality 80Hz, 100Hz, 120Hz, 150Hz, OFF
- DSP master settings / presets Music, Live, Voice, DJ
- DSP EQ modes high EQ (+/-12dB), mid EQ (+/-12dB), low EQ (+/-12dB)
- MIC / LINE switch 1
- Weight (net) 12.5 kg
- Dimensions W/D/H 347 x 310 x 530 mm
