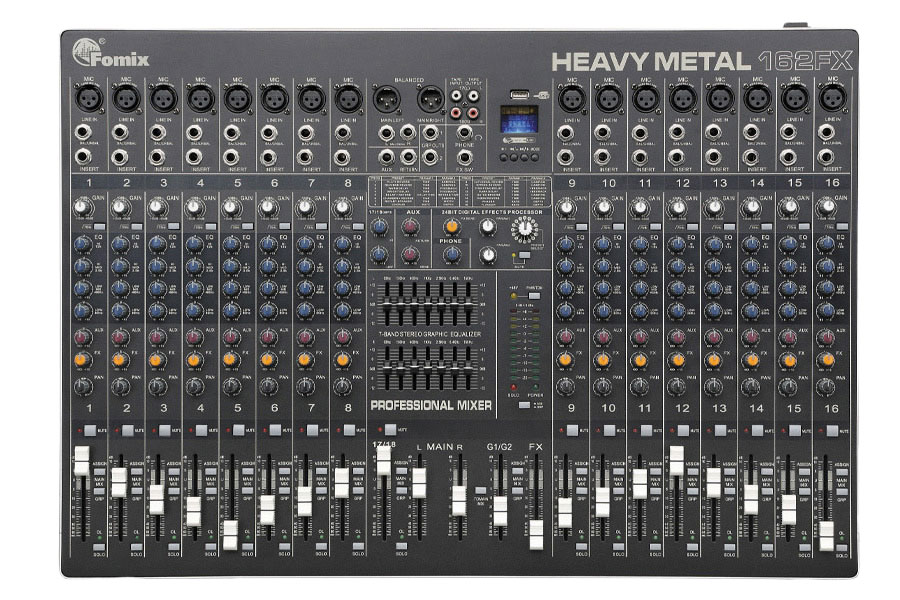

FOMIX MIX HM 162FX

Professional 16 channel compact mixer with USB

.Bulit in 24bit fomix digital effects processor
.2 Bus outputs design
.Precision 7-band graphic EQ for tuning Mains or Monitors
.60 mm long-wearing logarithmic-taper faders

mixeren har bryter for phantom-matning.

Maximum levels
Mic Input:30 dBu
Line Input:21 dBu
All other input: 22 dBu

Mixer Rated Output
Main outs: +4 dBu
All other outs: +4 dBu
Maximum output: 22 dBu

Frequency response
Mic input to main output
+0, -1 dB,<10Hz to 80kHz
+0,-3 dB,<10Hz to 120kHz

Connection Impedance
Mic inputs:2k ohms
Line inputs: >10k ohms
Outputs: >100 ohms
EQ(each band): ±15dB

Mono Channel EQ
High:12kHz
High mid: 2.5kHz
Low mid: 400Hz
Low: 80Hz

Stereo Channel
Low:80 Hz
High: 12kHz

Størrelse:
B 68 * H m/knapper 13 * D 46
