NOTHING COMPARES

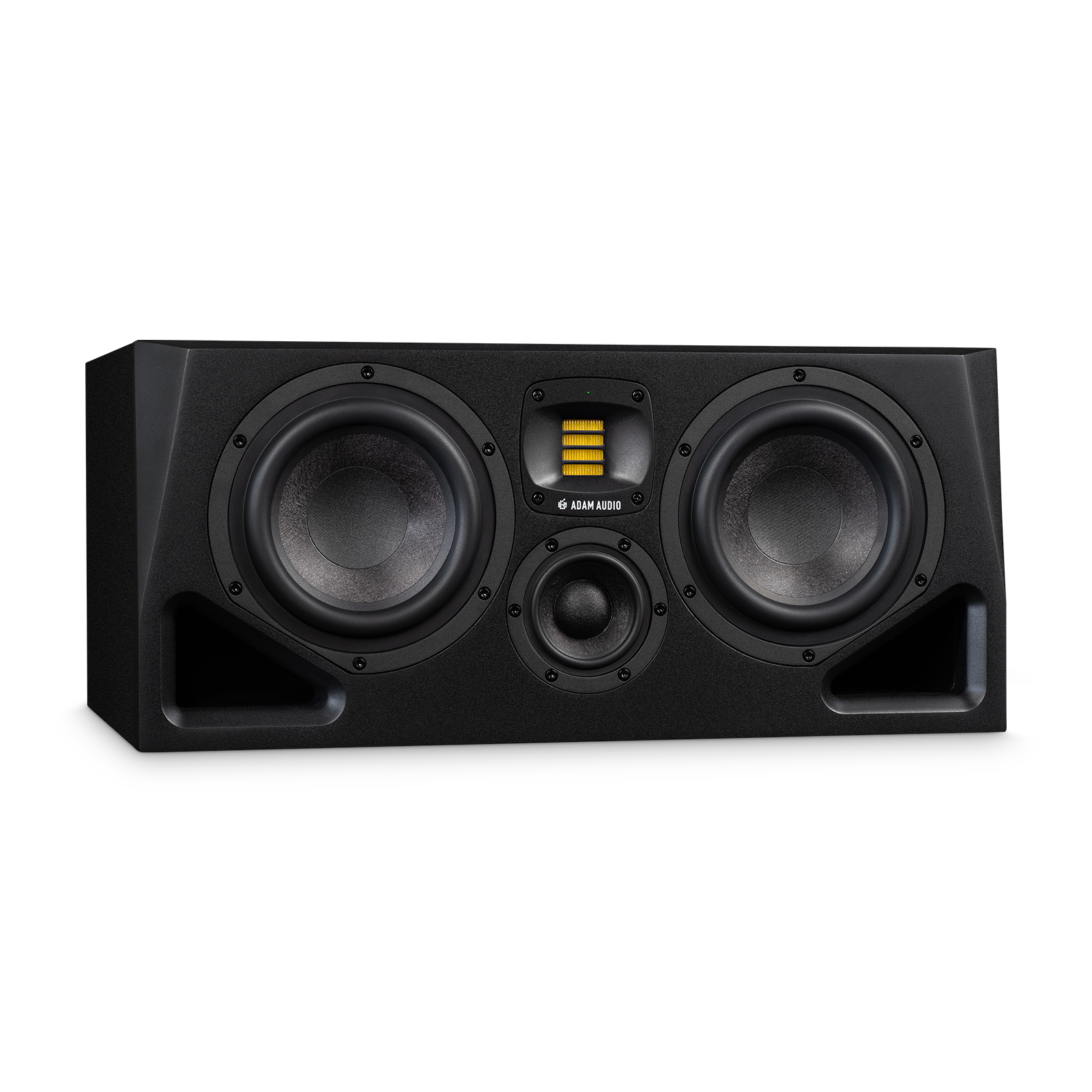

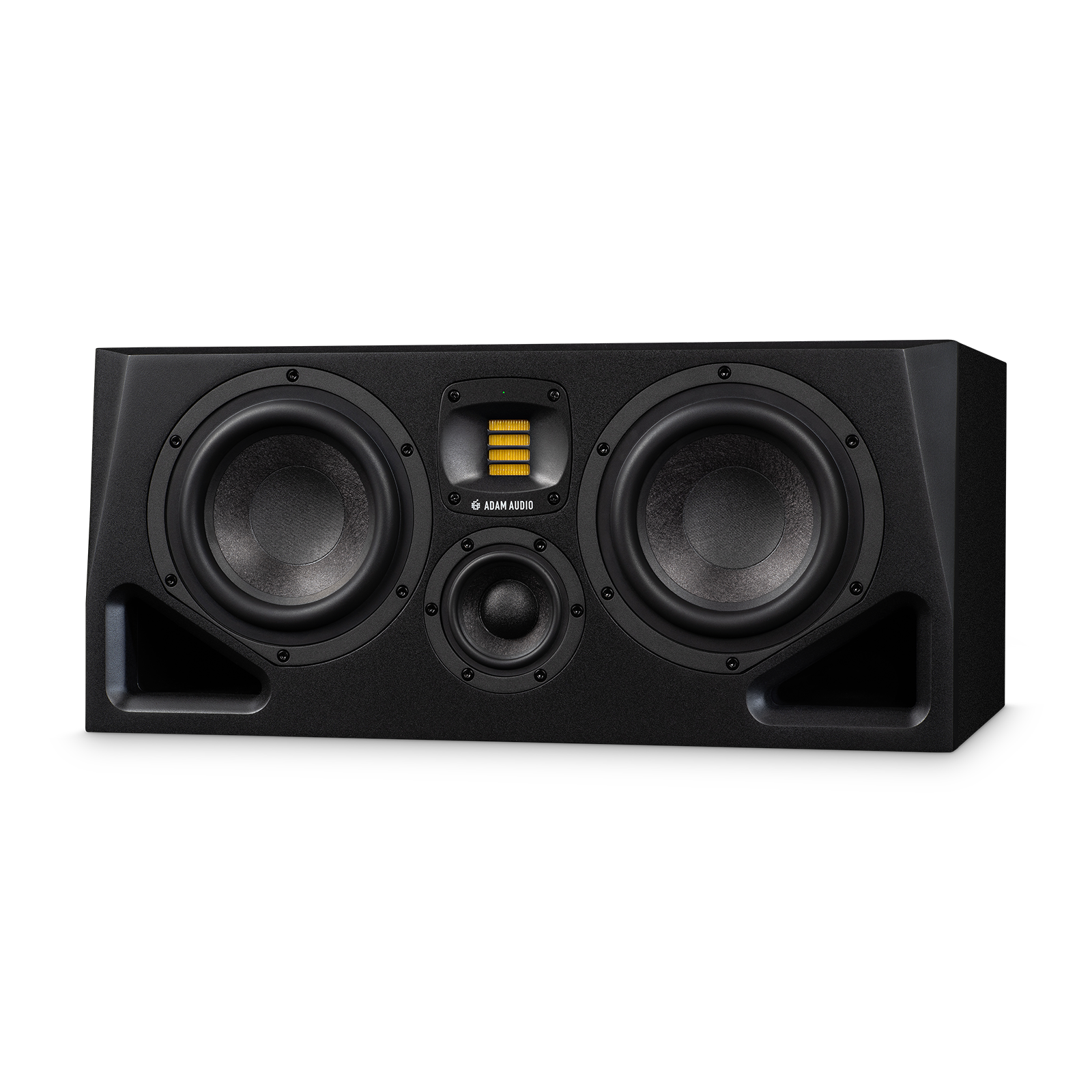

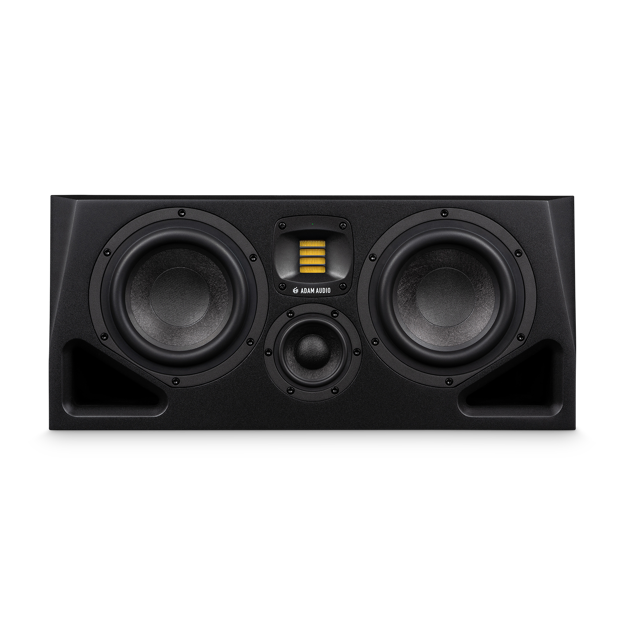

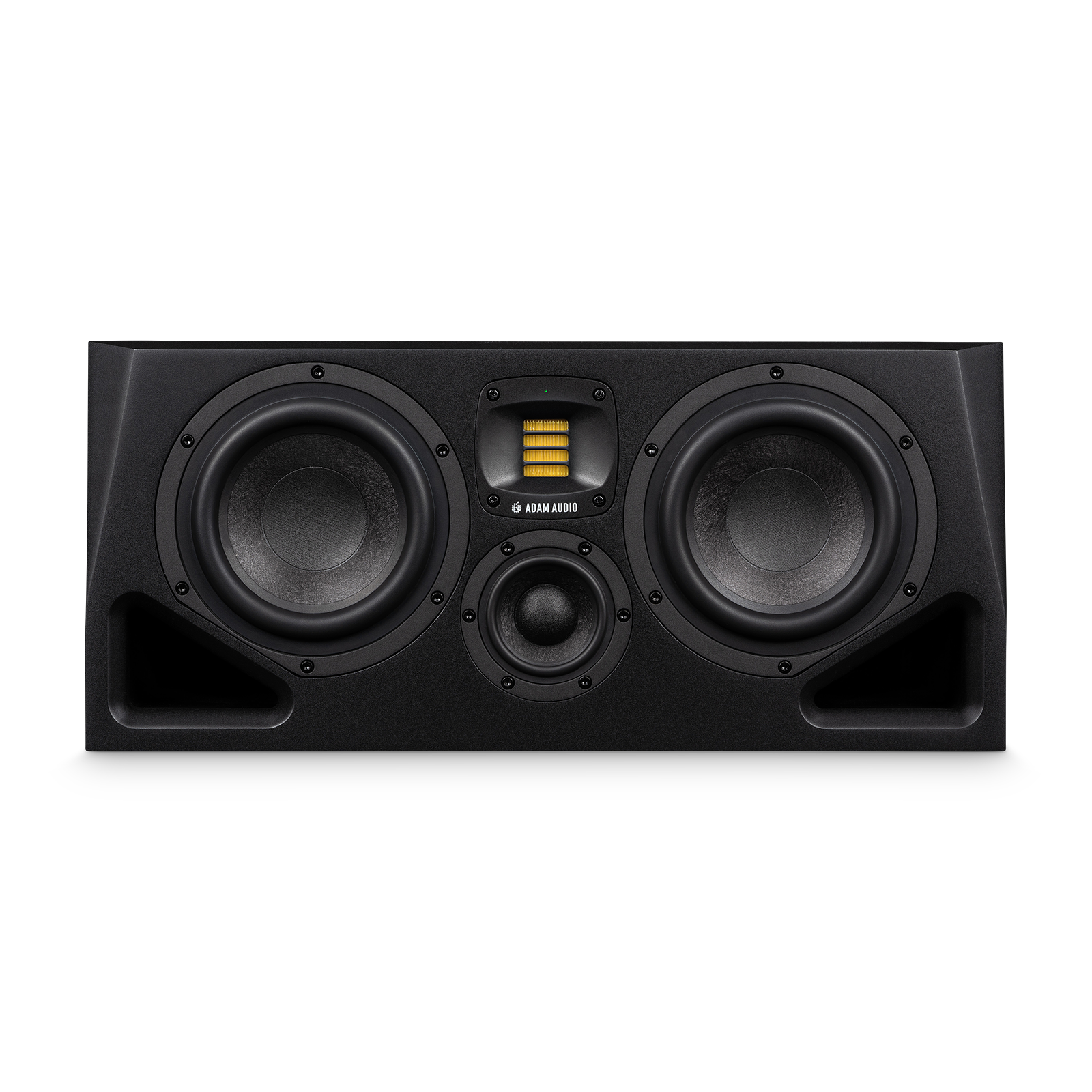

Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range.
The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.
EXPLORE THE TECHNOLOGY ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A77H.
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 3.5" DCH Midrange Driver
- 2 x 7'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 340 W
- Frequency Response @ -6 dB: 34 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 106 dB SPL
General Data
- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 15 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 500 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 17.1 kg (37 lb 11 oz)
- Dimensions (Height x Width x Depth): 236 mm x 531 mm x 350 mm (9 1/4″ x 20 7/8″ x 13 3/4″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A77H loudspeaker, power cable, Quick Start Guide
Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
Amplification
- Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 250 W
- RMS (1% THD, limiter deactivated): 200 W
- Midrange
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 70 W
- RMS (1% THD, limiter deactivated): 55 W
- Tweeter
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 20 W
- RMS (1% THD, limiter deactivated): 15 W
Control Options [via Network]
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
Acoustics
- Frequency Response @ -3 dB: 37 Hz – 41 kHz
- Frequency Response @ -6 dB: 34 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m (sine bursts): 106 dB SPL
- Max. peak SPL per speaker at 1 m (IEC-weighted noise): 118 dB SPL
- Crossover Frequencies: 400 Hz, 3.0 kHz
Drivers
- Woofer
- Basket Diameter: 2 x 7″
- Voice Coil Diameter: 1.5″ (38 mm)
- Cone Material: MLM
- Midrange
- Type: Dome Cone Hybrid (DCH)
- Basket Diameter: 3.5″
- Voice Coil Diameter: 1.3″ (33 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical
Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Options [via Backplate]
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
