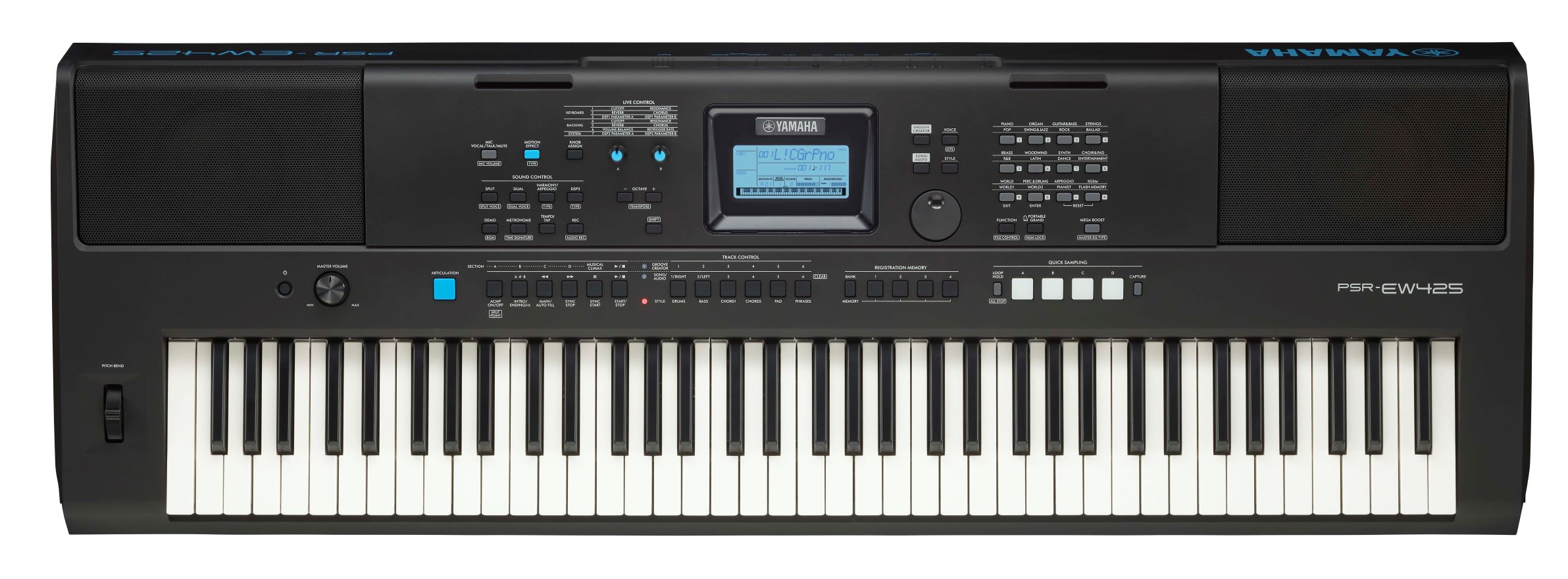

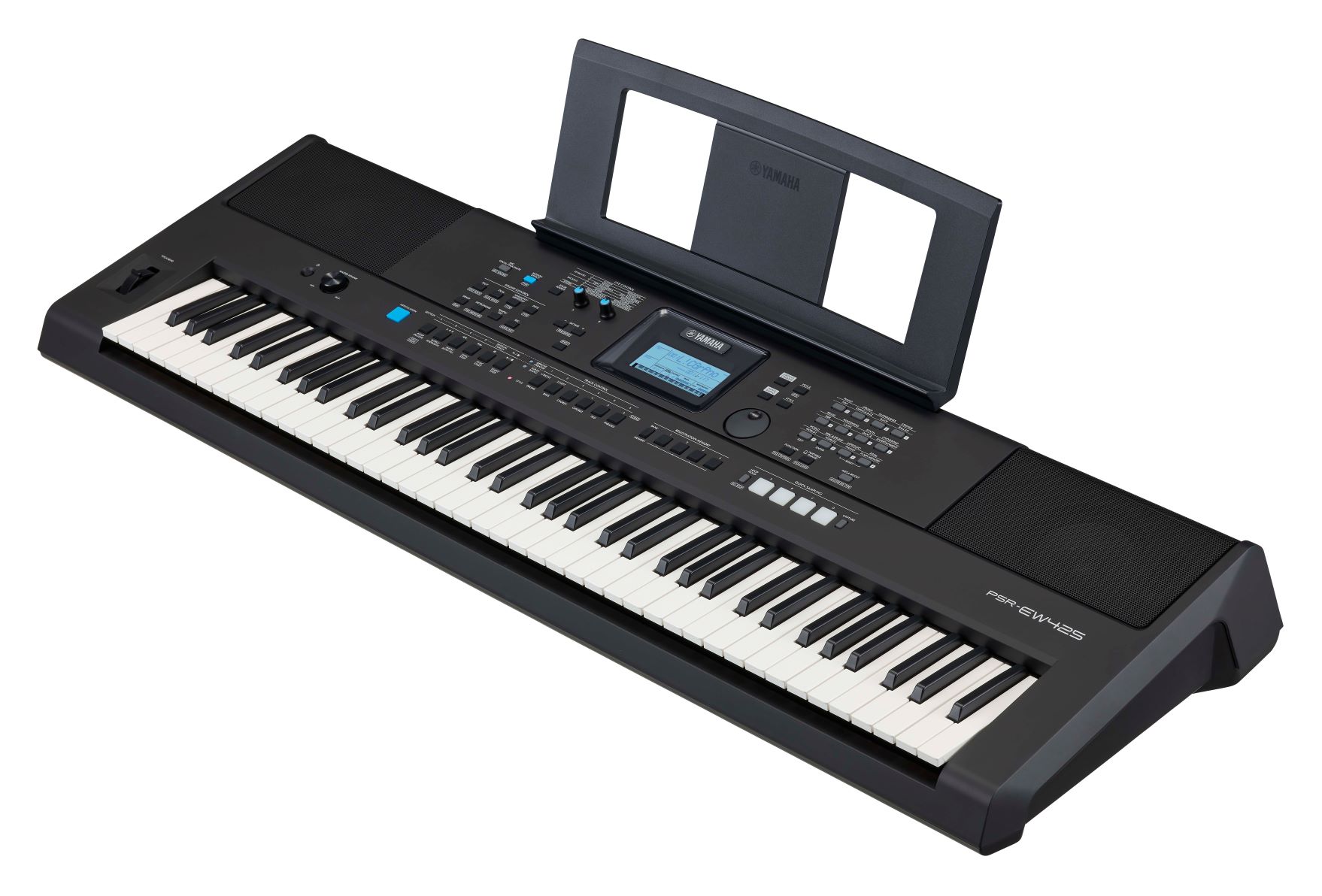

PSRE-W425 touch-sensitive keyboard
The touch-sensitive keyboard and powerful sound engine of the PSR-E473 bring together superb
sound and great feel in an all-new portable instrument. And with a 76-key touch-sensitive keyboard and functionality that builds on and evolves the legacy of the renowned PSR series of portable keyboards, the PSR-EW425 offers you power and performance that will let you take your music further.
Key Specs:
- Touch sensitive keyboard with 76 keys (PSR-EW425) or 61 keys (PSR-E473)
- 820 Voices including Super Articulation Lite Voices
- Premium organ sound created with samples from high-end Yamaha YC Series
- 64-note polyphony
- 290 auto accompaniment Styles
- Quick Sampling function
- Groove Creator function
- USB Audio Recorder
- Assignable real-time Control Knobs, Motion Effect functionality, pitch bend wheel
- Enhanced DSP power with DSP1: 41 types, DSP2: 12 types
- Mega Boost
- Melody Suppressor for both analog and digital audio input
- 12W + 12W amplification (PSR-EW425) / 6W + 6W amplification (PSR-E473)
- 12 cm Bass Reflexed speakers
- Microphone input and Vocal effects; L&R outputs for connecting to a PA system
- USB TO HOST and USB TO DEVICE; USB Audio
Dimensions:
- Width: 1,200 mm (47-1/4”)
- Height: 136 mm (5-3/8”)
- Depth: 404 mm (15-7/8”)
- Weight: 8.3 kg (18 lb, 5 oz) (not including batteries)
Control Interface:
- Number of Keys: 76
- Touch Response: Yes (Soft, Medium, Hard, Fixed)
- Type: Organ-style
- Pitch Bend: Yes
- Art. Switches: Yes
- Control Knobs: 2
- Display: LCD with backlight
- Language: English
Voices:
- Tone Generating Technology: AWM Stereo Sampling
- Number of Polyphony (Max.): 64
- Number of Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
- Featured Voices: 10 Premium Organ Voices, 4 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
- Compatibility GM: Yes
- Compatibility XGlite: yes
Effects:
- DSP: DSP1: 41 types, DSP2: 12 types
- Reverb: 12 types
- Chorus: 5 types
- Master EQ: 4 types
Functions:
- Dual/Layers: yes
- Split: Yes
- Melody Suppressor : Yes (w/ pan adjustment)
- Crossfade: Yes (between Internal Sound and External Audio)
Accompaniment Styles:
- Number of Preset Styles: 290
- Fingering: Multi finger, Smart Chord
- Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
- One Touch Setting (OTS): Yes
- Expansion Style: 10
- Compatibility: Style File Format (SFF)
Groove Creator:
- Number of Groove: 35
- Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
Songs:
- Number of Preset Songs: 30
- Recording Number of Songs: 10
- Recording Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
- Recording Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
- Compatible Data Format Playback: SMF (Formats 0 & 1)
- Compatible Data Format Recording: Original File Format (SMF 0 conversion function)
USB Audio Recorder:
- Recording Time (max.): 80 minutes (approx. 0.9 GB) per Song
- Format Playback: WAV (44.1 kHz, 16 bit, stereo)
- Format Recording: WAV (44.1 kHz, 16 bit, stereo)
Quick Sampling:
- Sampling Type: One-shot, Loop
- Samples (Preset/User): 4
- Sampling Time: Approx. 9.6 sec
- Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
- Sampling Format: Original File Format (16 bit, stereo)
- Sampling Rate: 44.1 kHz
Functions:
- USB audio interface: 44.1 kHz, 16 bit, stereo
- Number of Buttons: 4 (x 8 banks)
- Metronome: Yes
- Tempo Range: 11-280
- Transpose: -12 to 0, 0 to +12
- Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
- Octave Button: Yes
- Scale Type: 5 types
- PIANO Button: Yes (Portable Grand Button)
- Other Functions: Mega Boost, Motion Effect (57 types)
- Harmony/Echo: 26 types
- Arpeggio: 152 types
Storage and Connectivity:
- Internal Memory: Approx. 1.72 MB
- External Drives: USB flash drive
- DC IN: 16 V
- AUX IN: Stereo mini jack x 1
- Headphones: Standard stereo phone jack x 1
- Sustain Pedal: Yes
- USB TO DEVICE: Yes
- USB TO HOST: Yes
- Output: Standard phone jack x 2
- Microphone: Standard phone jack x 1
Amplifiers and Speakers:
- Amplifiers: 12 W + 12 W
- Speakers: 12 cm x 2
Power:
- Power Supply: AC Adaptors (PA-300C or an equivalent recommended by Yamaha) or batteries (Six “D” size alkaline (LR20), manganese (R20) or Ni-MH rechargeable (HR20) batteries)
- Power Consumption: 11 W (When using PA-300C AC adaptor)
- Auto Power Off Function: Off/5/10/15/30/60/120 (minutes)
Accessories:
- Music Rest: Included
- Song Book: Download from Yamaha web site
