AC-22LX presenterer en ny idé innen akustisk forsterkning, og gir deg en fullstendig fordypende spillopplevelse realisert gjennom avansert BOSS romteknologi. Air Feel gir liv til den tørre, sterile lyden fra vanlige akustiske instrumentmikrofoner, gjenskaper de rikt detaljerte tonene fanget av klassiske stereomikrofonoppsett for akustiske instrumenter i verdensklasse studioinnstillinger. AC-22LX's inspirerende stemme strekker seg langt utover sin kompakte størrelse og gir din forsterkede lyd dybde, dimensjon og naturlig akustisk resonans.
Spesifikasjoner
- Rated Power Output10 W (5 W+5 W)Nominal Input LevelGUITAR/INSTRUMENT: -10 dBu (10 M ohms)
- MIC: -40 dBu (5 k ohms)
- AUX IN: -20 dBu (15 k ohms)Nominal Output LevelLINE OUT L/MONO, R: -10

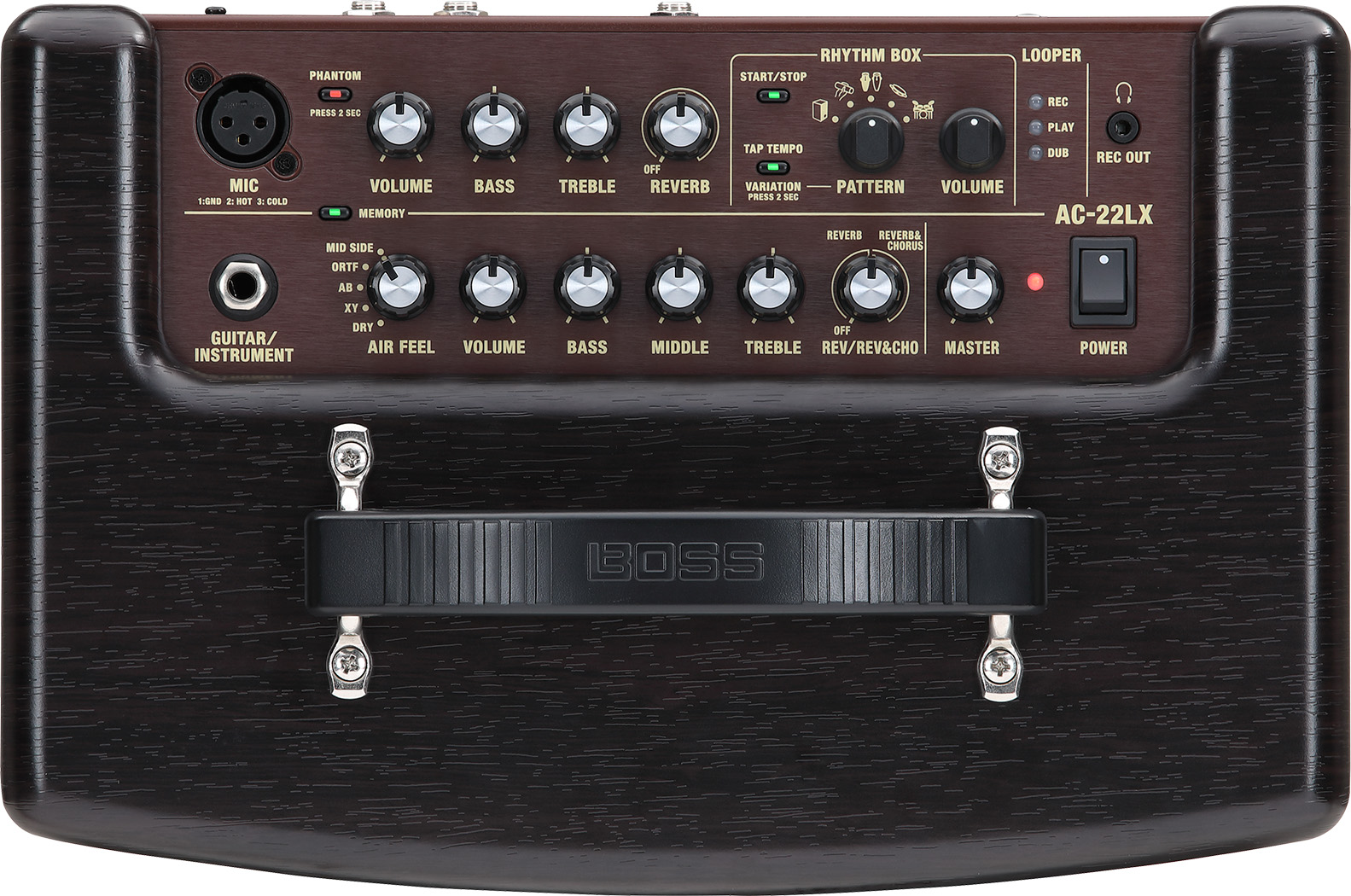

- dBuSpeakers12 cm (5 inches) x 2ControlsPOWER switch
- MASTER knob
- MEMORY button
- USB LOOPBACK switch
< GUITAR/INSTRUMENT > - AIR FEEL knob (DRY, XY, AB, ORTF, MID SIDE)
- VOLUME knob
- BASS knob
- MIDDLE knob
- TREBLE knob
- REV/REV&CHO knob (REVERB, REVERB&CHORUS)
< MIC > - PHANTOM button
- VOLUME knob
- BASS knob
- TREBLE knob
- REVERB knob
< RHYTHM BOX > - START/STOP button
- TAP TEMPO/VARIATION button
- PATTERN knob (CAJON, SHAKER, CONGA, TAMBOURINE, DRUMS)
- VOLUME knobIndicatorsPOWER
- PHANTOM
- MEMORY
- START/STOP
TAP TEMPO/VARIATION - REC
- PLAY

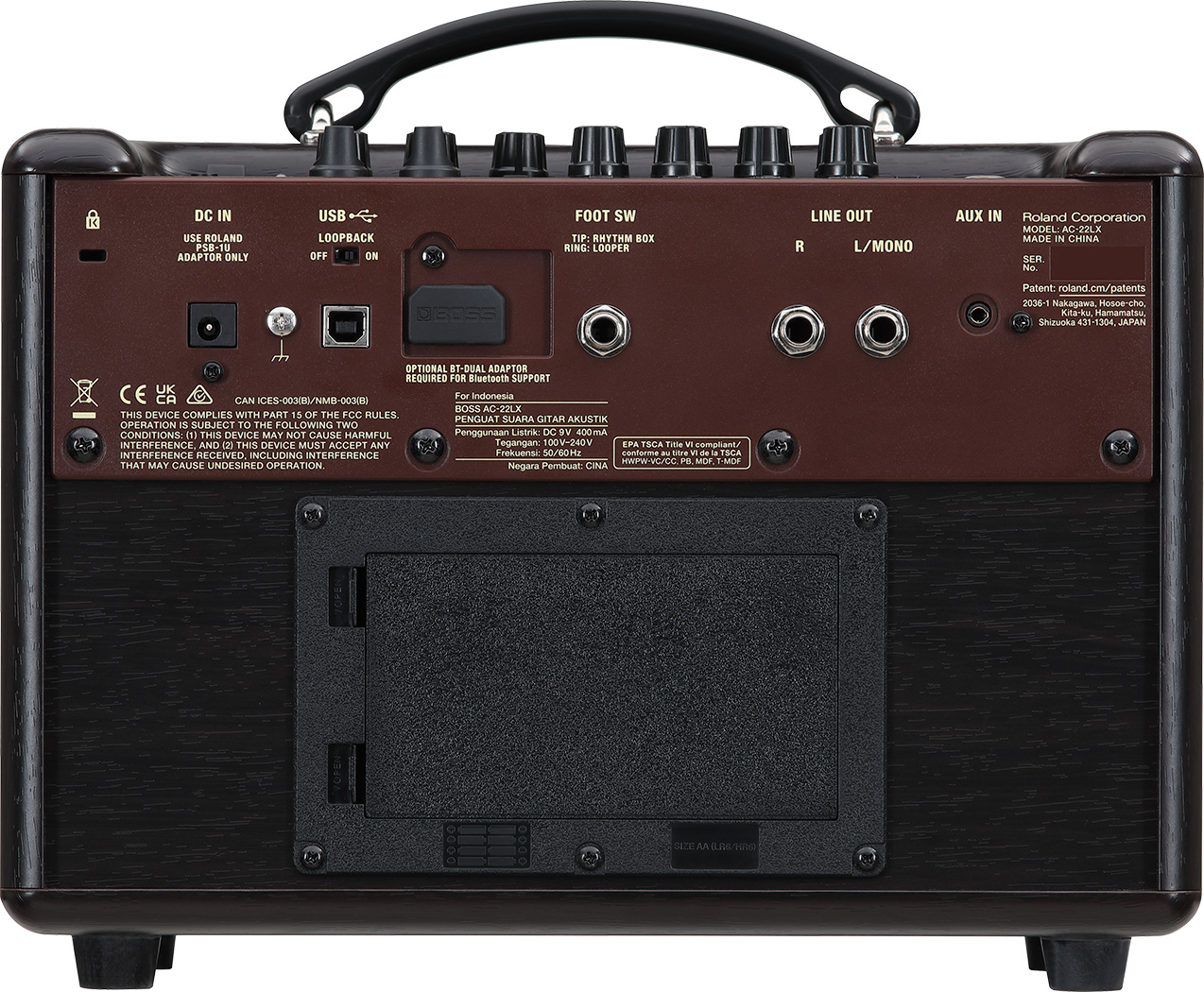

- DUBConnectorsGUITAR/INSTRUMENT jack: 1/4-inch phone type
- MIC connector: XLR type, phantom power (DC 48 V, 14 mA Max)
- PHONES/REC OUT jack: Stereo Miniature phone type
- AUX IN jack: Stereo Miniature phone type
- LINE OUT L/MONO, R jacks: 1/4-inch phone type
- FOOT SW jack: 1/4-inch TRS phone type
- Bluetooth ADAPTOR connector: Dedicated connector
- USB port: USB B type
- DC IN jackPower SupplyAC adaptor (DC 9 V)
- Alkaline battery (AA, LR6) x 8
- Rechargeable Ni-MH battery (AA, HR6) x 8Current Draw400 mAExpected battery life under continuous useAlkaline battery: Approximately 8 hours
- Rechargeable Ni-MH battery: Approximately 10 hours (*1)
- *1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner’s Manual - Leaflet USING THE UNIT SAFELY
- AC adaptor
- Power cordOptions (sold separately)Footswitch: FS-5U, FS-6, FS-7
- Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)
- Wireless MIDI Expression Pedal: EV-1-WL
- Wireless Footswitch: FS-1-WLSIZE AND WEIGHTWidth317 mm
- 12-1/2 inchesDepth210 mm
- 8-5/16 inchesHeight265 mm
- 10-7/16 inchesWeight (excluding AC adaptor)4.0 kg
- 8 lb 14 oz
