Solid Studio IR & Power Amp Simulator
8 Speaker Cabinets
8 Microphones and 3 Mic. Positions
3 Power Amp Tubes

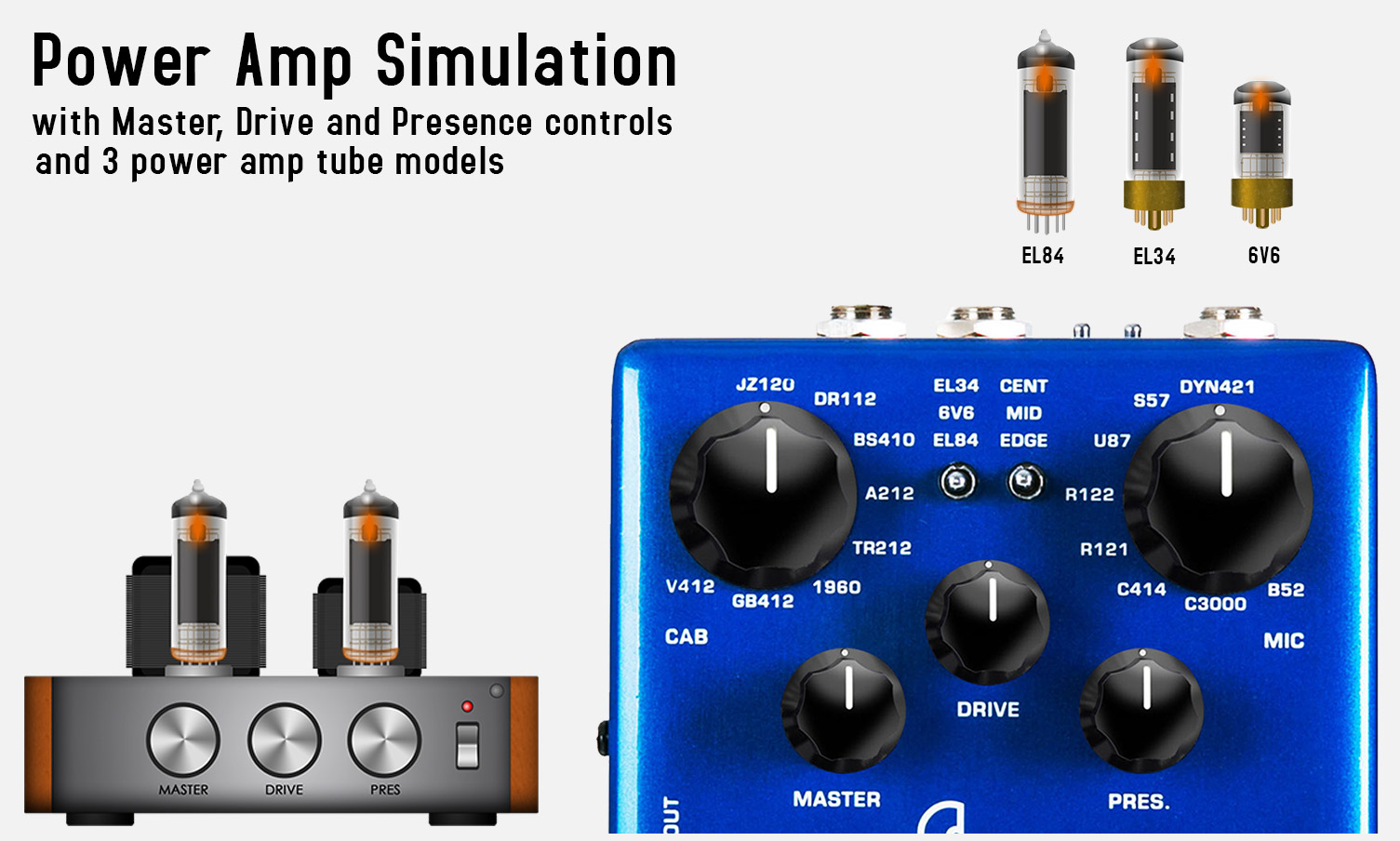

Master, Drive and Presence Controls (Power Amp)

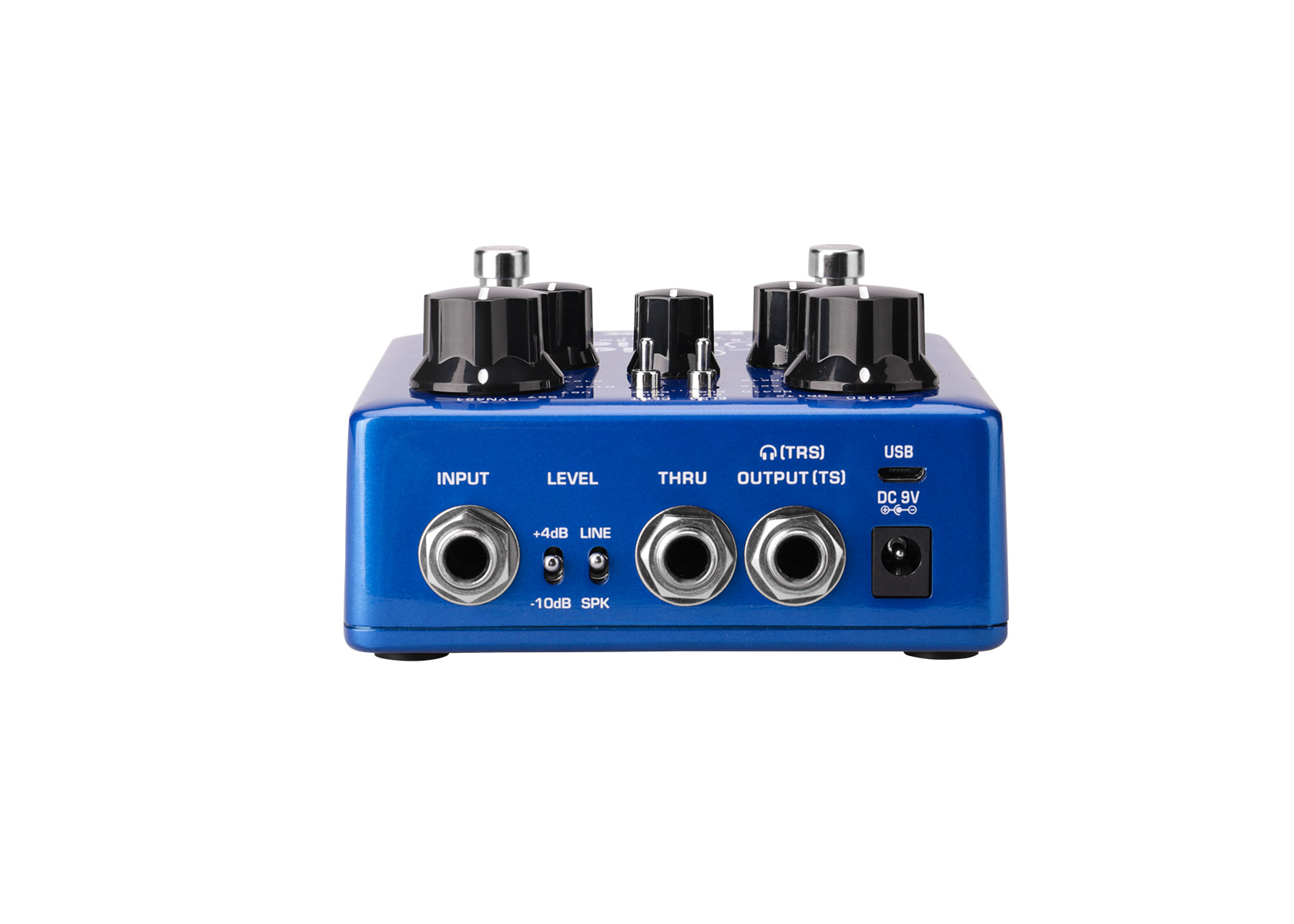

Simulation Dedicated Output and DI Out
Thru Output Modes (Line / Speaker)
Input Level Switch (-10dB / +4dB)
USB Port for loading 3rd party IR files, software control and firmware update
The New Era of Mic-ing!
NUX Solid Studio was created and designed to address: limited gear availability,
and the cumbersome transport reality of physical amp/speaker cabinets.
NUX is proud to introduce the new Verdugo series Solid Studio IR & Power Amp simulator,
a pedal version of the most classic amp/cabinet scenarios including microphones and power
amp tubes. Over many years of research, Solid Studio was specifically developed to fill
the essential needs of discerning musicians and sound technicians, including the art of
mic-ing instrument amplifiers on stage or in the studio. Solid Studio provides ease-of-use,
reliability, versatility, and, above all, incredible audio quality.

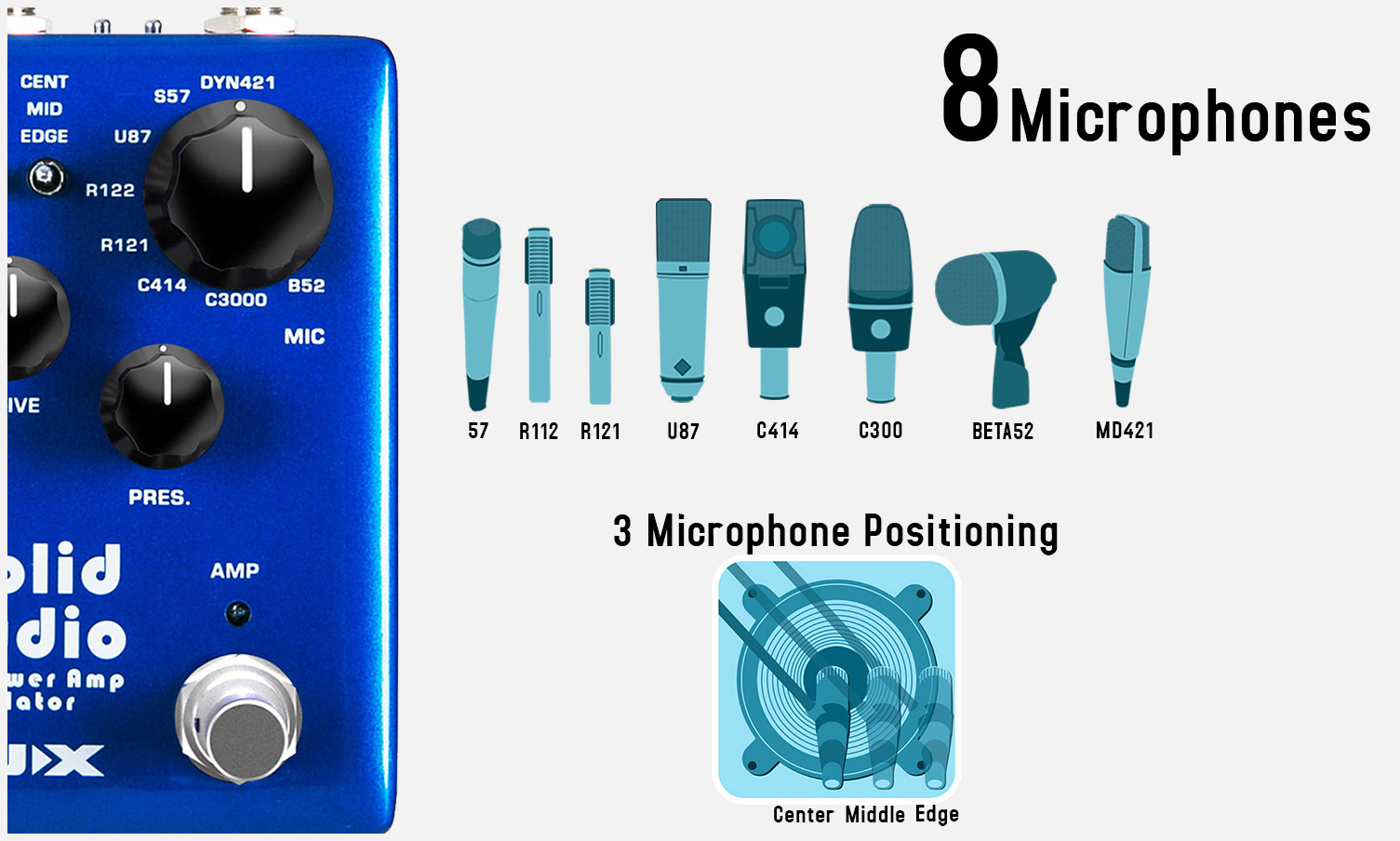

Virtual mic-ing is achieved by choosing 1 cabinet and 1 microphone, and fine-tuning
the position of the microphone using the mic position switch. Plus, you can add the tube
sound by engaging the power amp simulation.

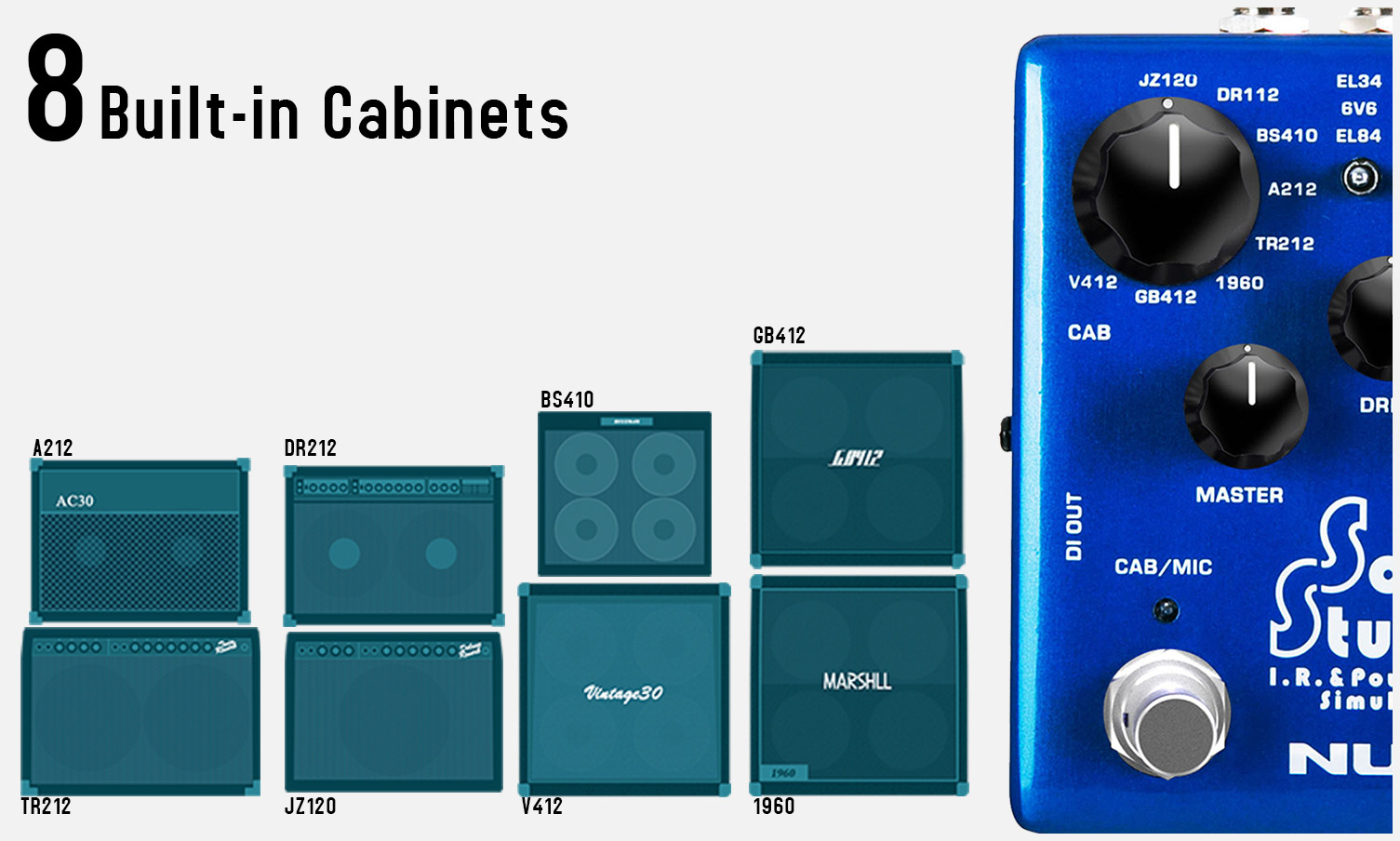

Solid Studio comes with 8 speaker cabinet simulations. All the cabinet models inside the
Solid Studio are sounds great as original as the way it feels.
8 Built-in Cabinets:
JZ120 Roland Jazz120
DR112 Fender Deluxe Reverb 112
BS410 Fender Bassman 410
A212 VOX AC30 212
TR212 Fender Twin Reverb 212
1960 Marshall 1960A 412
GB412 Celestion Greenback 412
V412 Celestion Vintage30 412
DYN421 Sennheiser MD421
S57 Shure SM57
U87 Neumann U87
R122 Royer R-122
R121 Royer R-121
C414 AKG C414
C3000 AKG C3000
B52 Shure Beta52
Impulse Response (IR) Loader
You can easily emulate the sound of any guitar cabinet by loading different IRs (Impulse Responses)
to NUX Solid Studio. The internet is a huge library and you can find many different IR's (both paid
and free). And you can add into Solid Studio to use whenever you want. (Currently, we are developing
a software for Solid Studio and there will be more information soon)
You can capture any of your favorite amplifiers sound and create your own IR file by Solid Studio.
Place the microphone to the front of the speaker and adjust the capturing position as you desire.
How to capture and create an IR file:
- Hold both foot switches, and plug-in the power cable. IR Capture mode will be activated.
- Make the connections between the Solid Studio, amplifier, microphone preamp and the microphone.
(Check the IR Capture connection figure above)
- Choose a preset where you want to save your own IR file.
(8 cabs * 3 mic positions * 8 mics = 192 patches)
- Press "Cab" foot switch, this will send the impulse signal and it will run from power amp to the speaker.
Then your microphone will capture the impact sound and send the signal to the Solid Studio's input.
Your very own IR file is ready to use.
