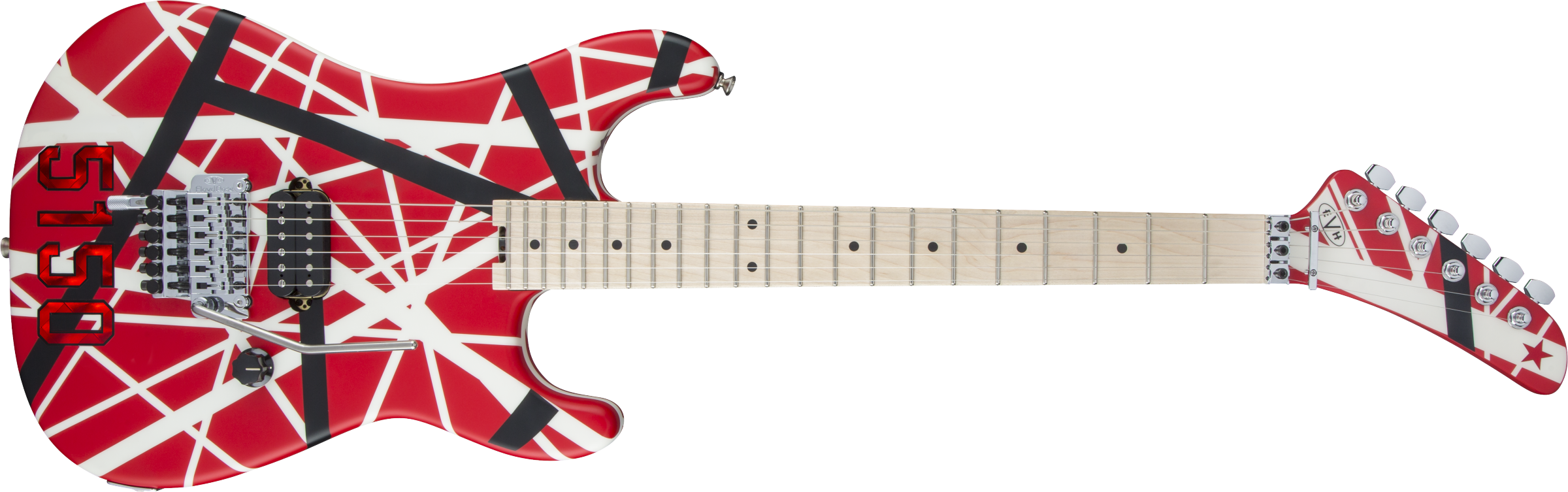

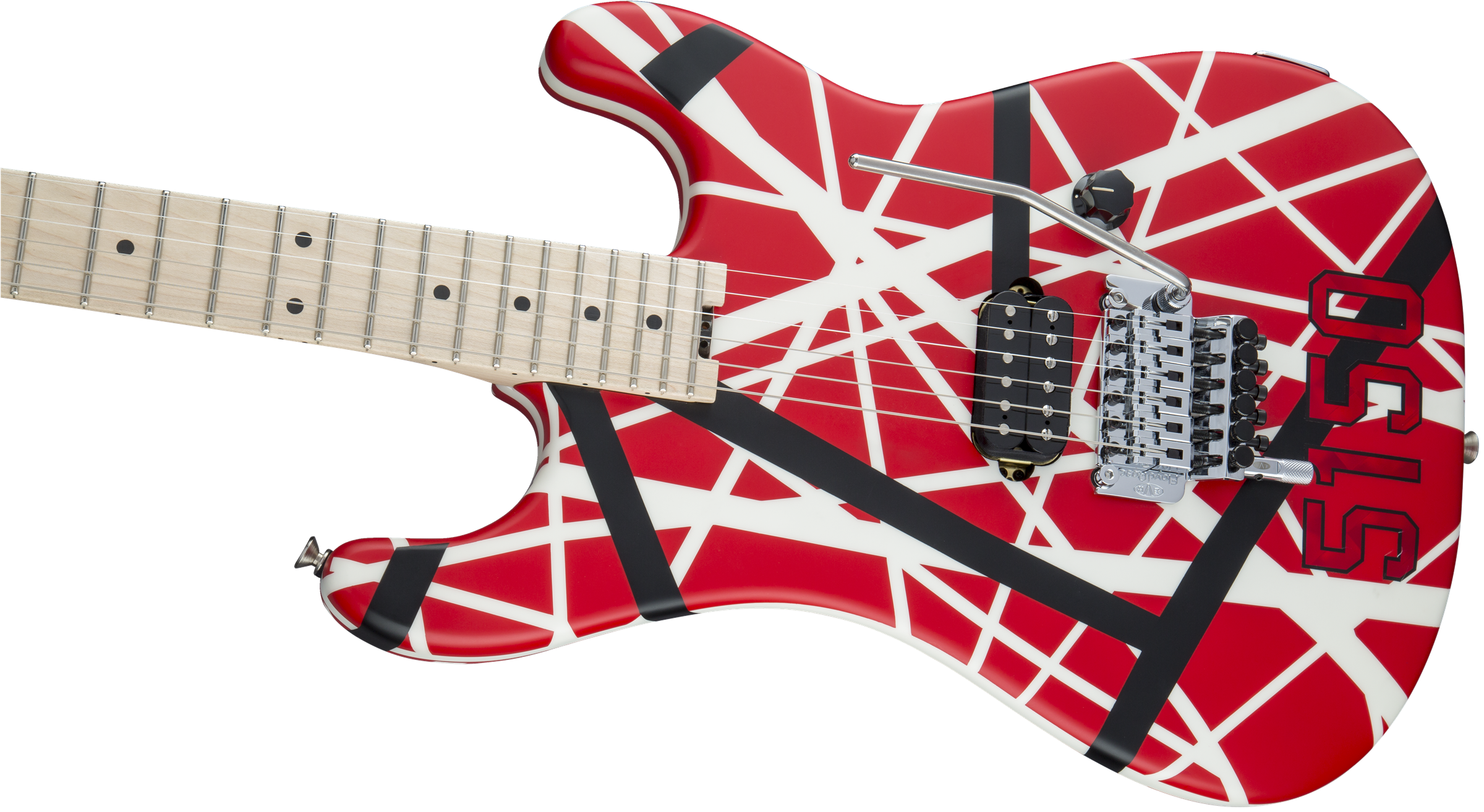

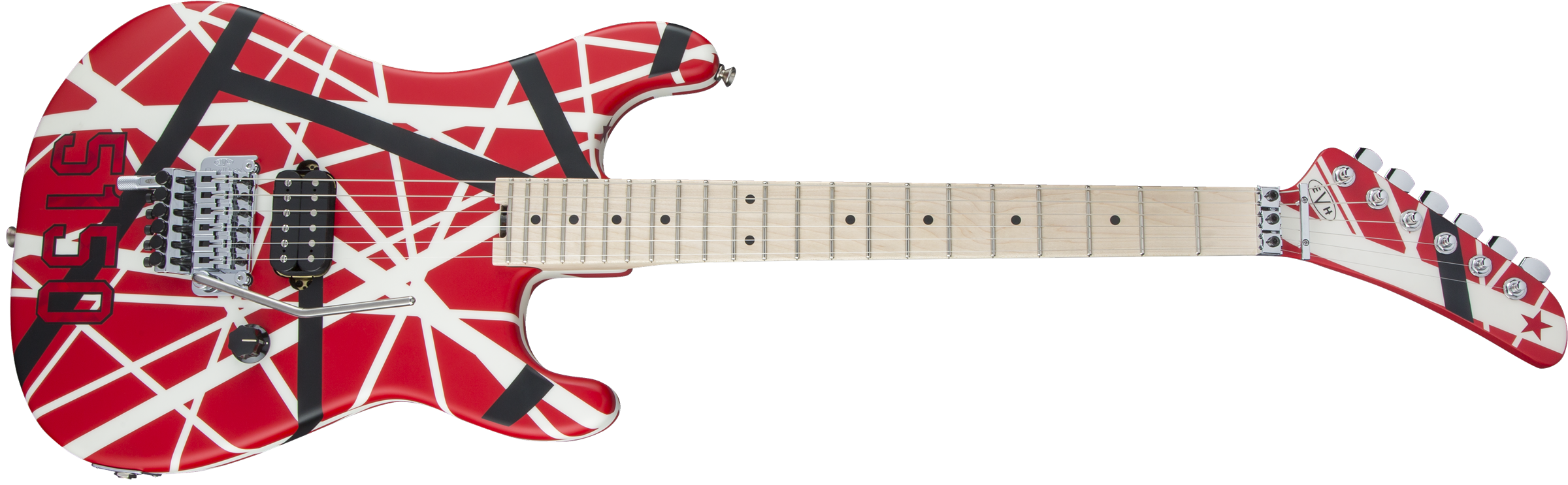

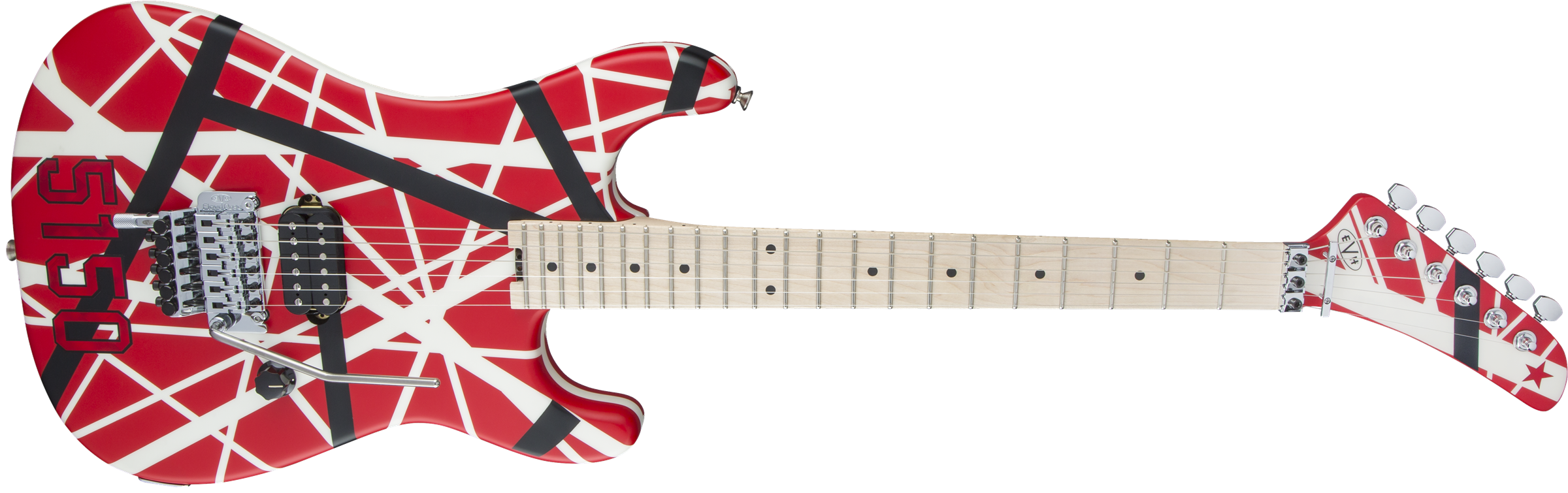

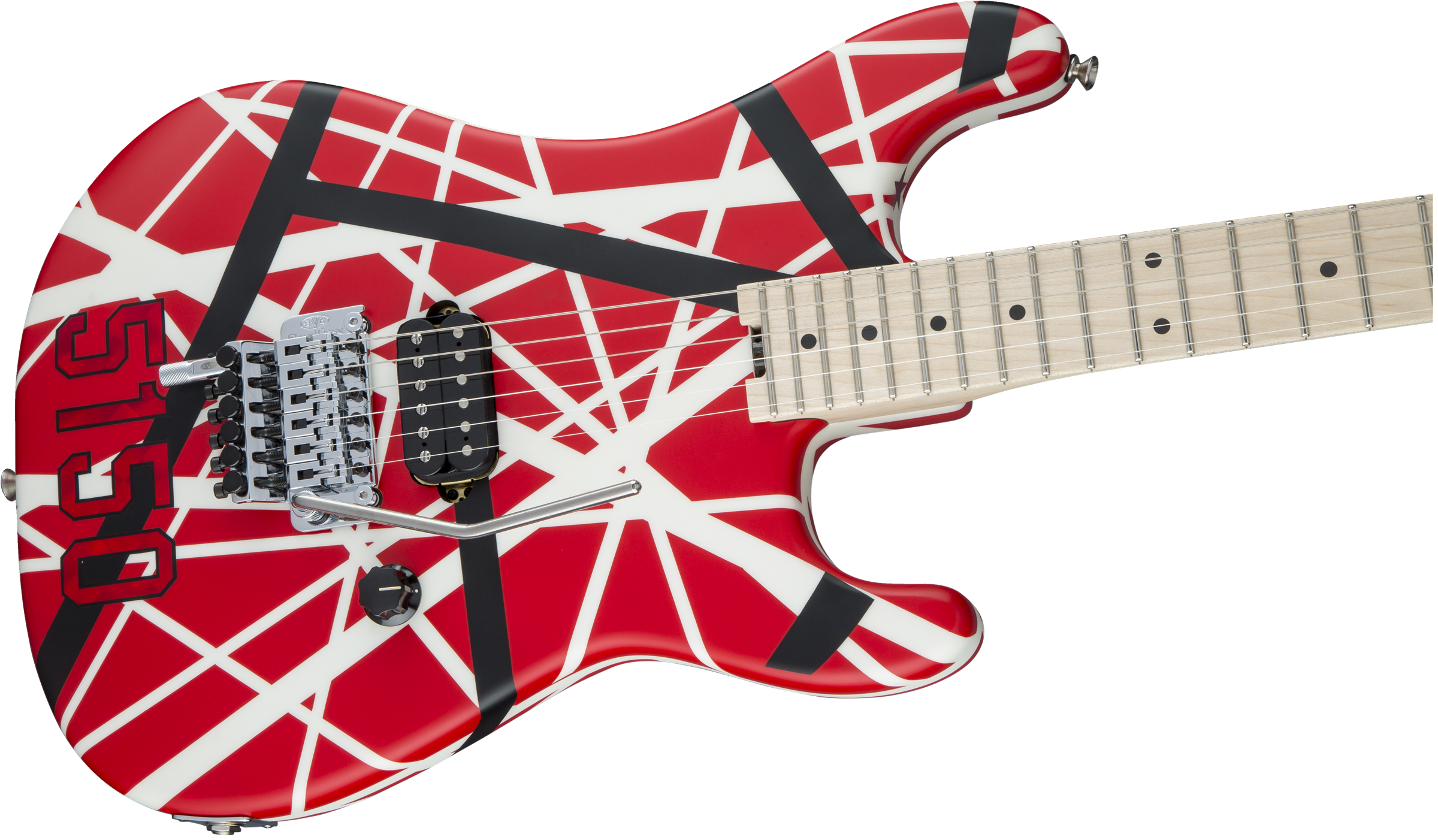

EVH Striped Series 5150, Maple Fingerboard, Red with Black and White Stripes

When Eddie Van Halen introduced his famous red, white and black striped 5150® guitar in 1984, he never would have fathomed the thousands of copies it would inspire. But then again, Eddie has made a career of being copied in every which way imaginable. EVH proudly introduces a new Striped Series 5150 model based on his original instrument, featuring his distinctively striped 5150 motif and single humbucker setup.

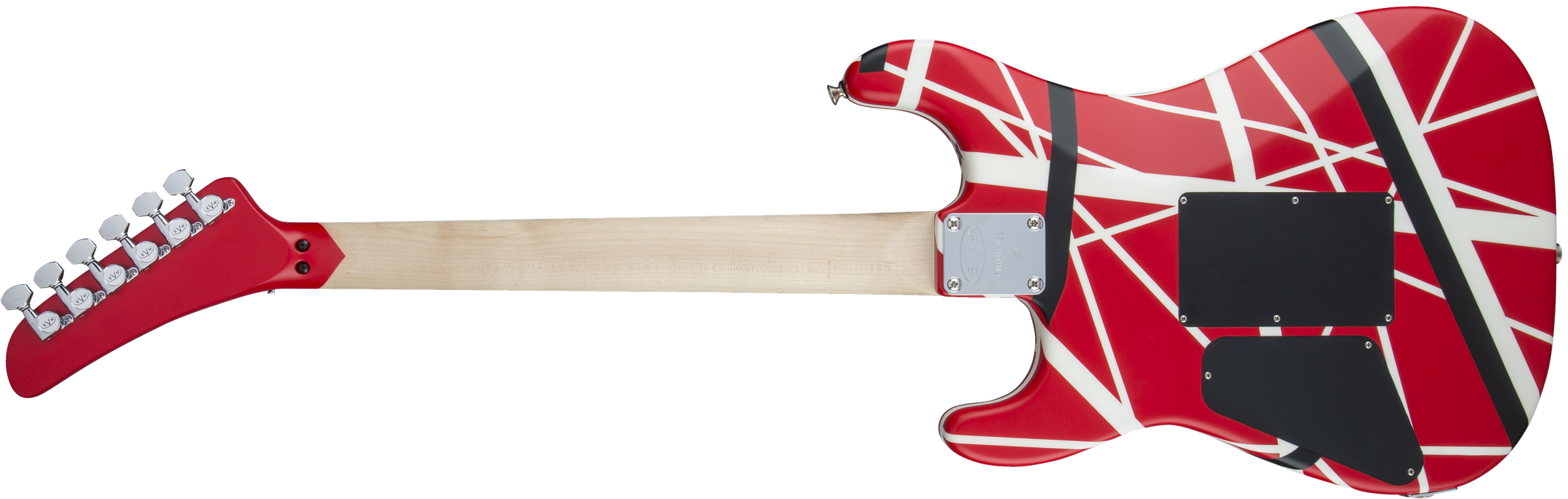

The Striped Series 5150 has a basswood body identical to the original, with a bolt-on quartersawn maple neck featuring a comfortable modified “C” profile, hand-rubbed satin urethane finish on the back and unique “hockey stick” headstock. The fast-playing 12"-16" compound radius maple fingerboard has 22 jumbo frets, black dot inlays and a convenient heel-mount truss rod adjustment wheel.

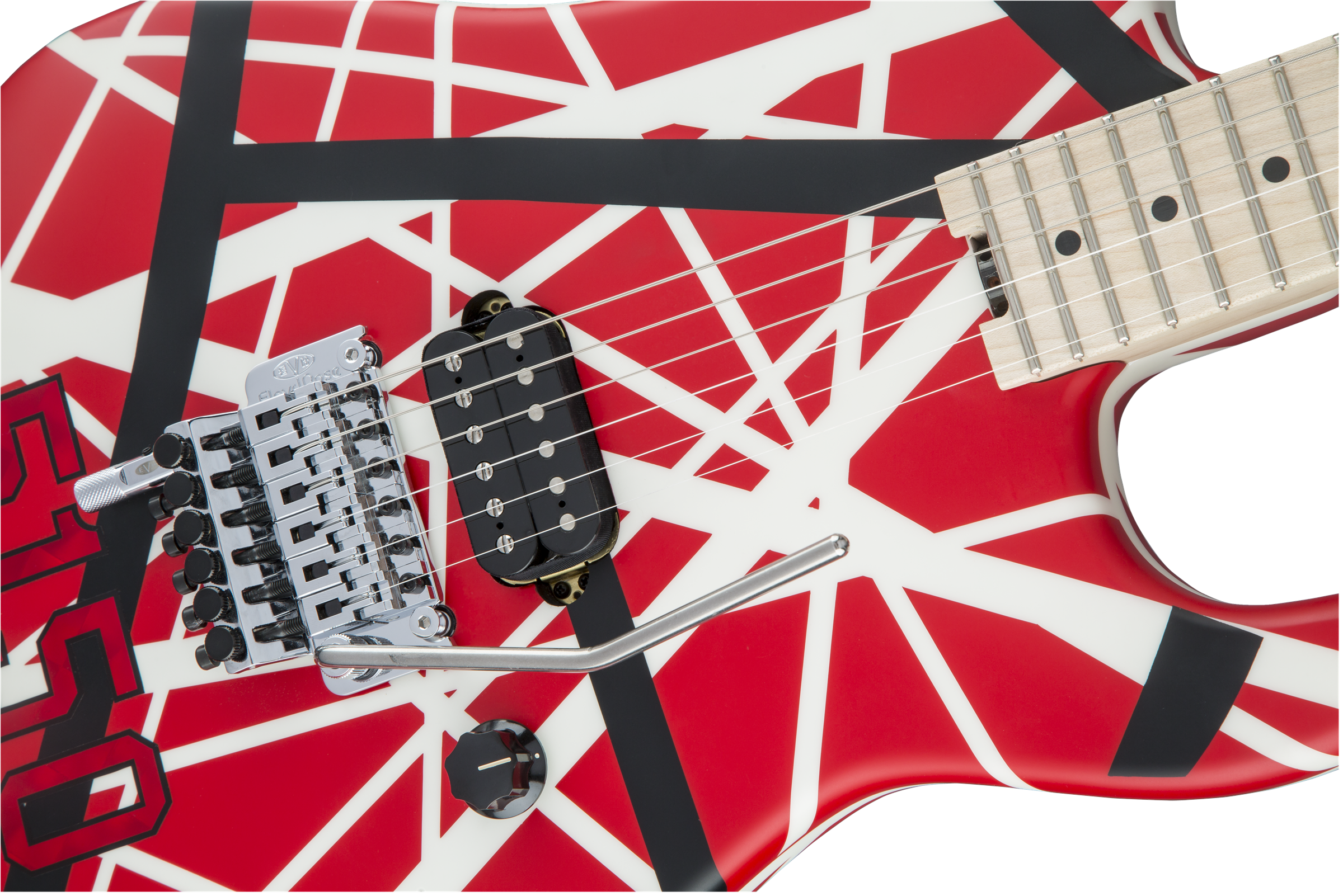

The 5150 is also fitted with a custom-designed EVH® Wolfgang® alnico 2 humbucking bridge pickup, delivering the perfect amount of power and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. A custom designed EVH-branded low-friction volume knob provides for unmatched performance and even-volume tapering for the smoothest volume swells.

Decked out with a rock solid “dive bomb” certified EVH-branded Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

With its quintessential red 5150 hologram numbers and star decals, the Striped Series 5150 is a high-powered, high-performance machine that’s as kickass to look at as it is to play.





__



• Body: Basswood
• Body Finish: Gloss Urethane
• Body Shape: 5150®
• Control Knobs: Black Knurled with White Indicator
• Fingerboard: Maple
• Hardware Finish: Chrome
• Position Inlays: Black Dot
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Construction: Bolt-On with Graphite Reinforcement
• Headstock: EVH® Hockey Stick
• Orientation: Right-Hand
• Configuration: H
• String Nut: Floyd Rose® R3 Locking
• Truss Rod Wrench: 2.5 mm Hex
• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Pickup Switching: None
• Pickup Configuration: H
• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Tuning Machines: EVH®-Branded Gotoh®
• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Included Accessories: Tremolo Arm, Hex Keys & User Manual
• Case/Gig Bag: Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Refinement Fingerboard Radius: Compound
• Fret Size: Jumbo
• Neck Material: Quartersawn Maple
• Refinement Neck Material: Maple
• Neck Shape: EVH® Modified "C" Backshape
• Number of Frets: 22
• Nut Material: Floyd Rose® R3 Locking
• Nut Width: 1.685" (42.8 mm)
• Scale Length: 25.5" (648 mm)
• Truss Rod: EVH®-Branded with Wheel
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Neck Thikness: .790" at 3rd Fret & .810" at 12th Fret
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
