The Multi-Format Problem Solver for Audio Playback, Recording and Archiving

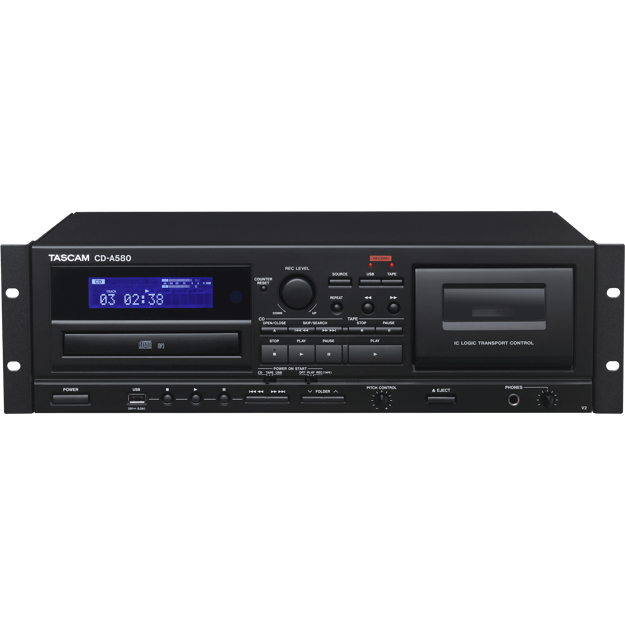

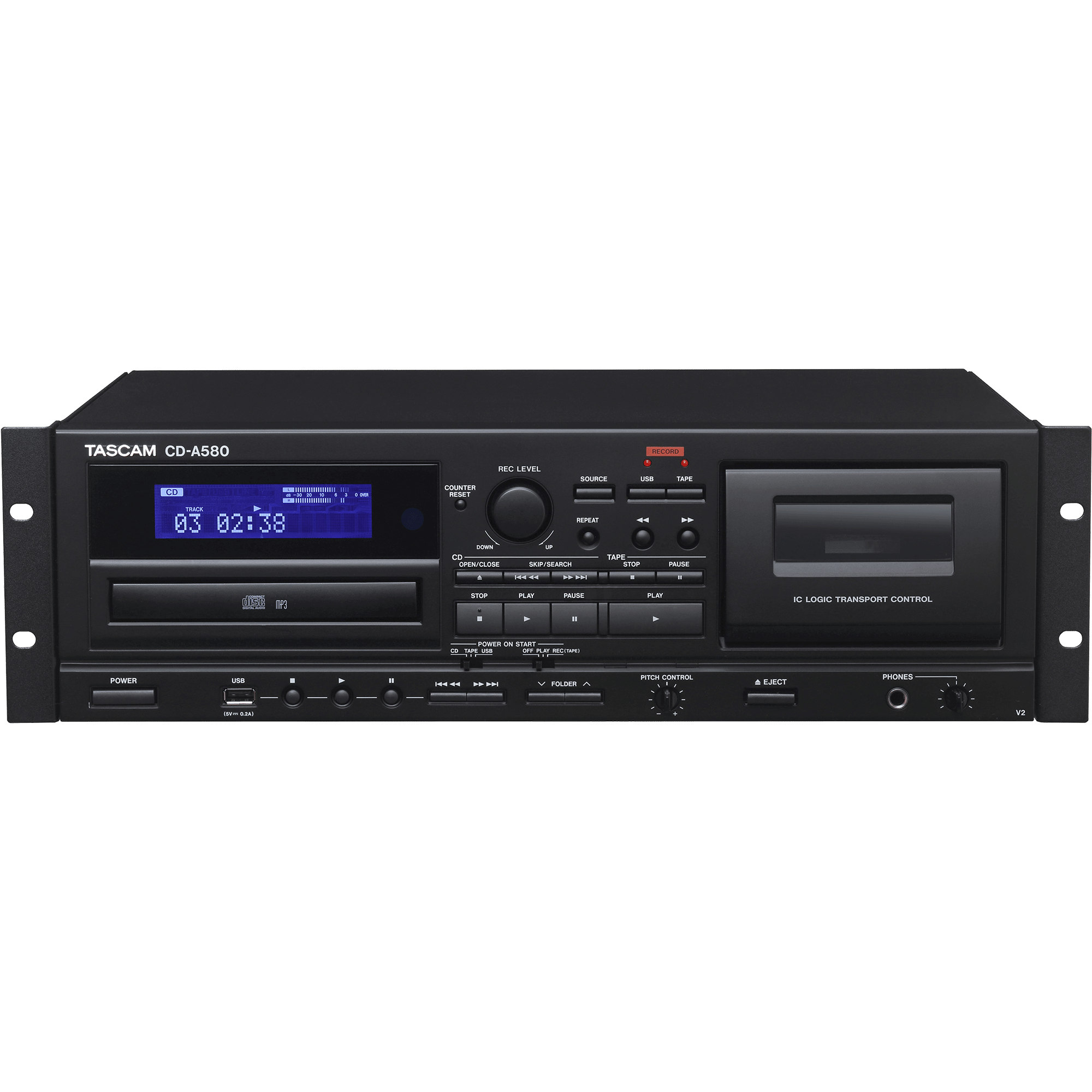

The CD-A580 V2 makes the most of two highly popular consumer audio formats, audio cassette and audio CD, by combining them with a USB memory recorder/player into an attractive package that delivers both functionality and value. You can use either source for playback, record to cassette or USB memory, or take advantage of dubbing features to create copies from CD or cassette.
The unit has RCA unbalanced inputs and outputs as well as a headphones output with level control. It is perfect for installations in halls, hotels and restaurants, for DJs, band rehearsals, dance/sports facilities and more. A wireless remote control is also included.
Features:
Cassette deck
- Cassette mechanism with IC logic transport control
- Dubbing function allows to record from CD
- ±10% pitch control
- Plays C-10 to C-90 cassettes
- Playback: Type I (normal), Type II (high position), Type IV (metal)
- Recording: Type I (normal), Type II (high position)
- Power-on recording/playback function
CD player
- Plays CD-R and CD-RW in CD-DA and data formats (MP3)
- Shuffle playback, Program playback
- Various repeat modes (Single/All/Program)
- Playback modes when dubbing: Program/Shuffle/Repeat
- Anti-shock memory (2 seconds)
- Power-on playback function
USB memory recorder/player
- Recording to MP3 files from CD, cassette or line input
- MP3 playback (supports folders)
- Shuffle playback, Program playback
- Folder repeat playback
- Manual file division when recording from tapes or line input
- Automatic file division when recording from CD
- Power-on playback function
General

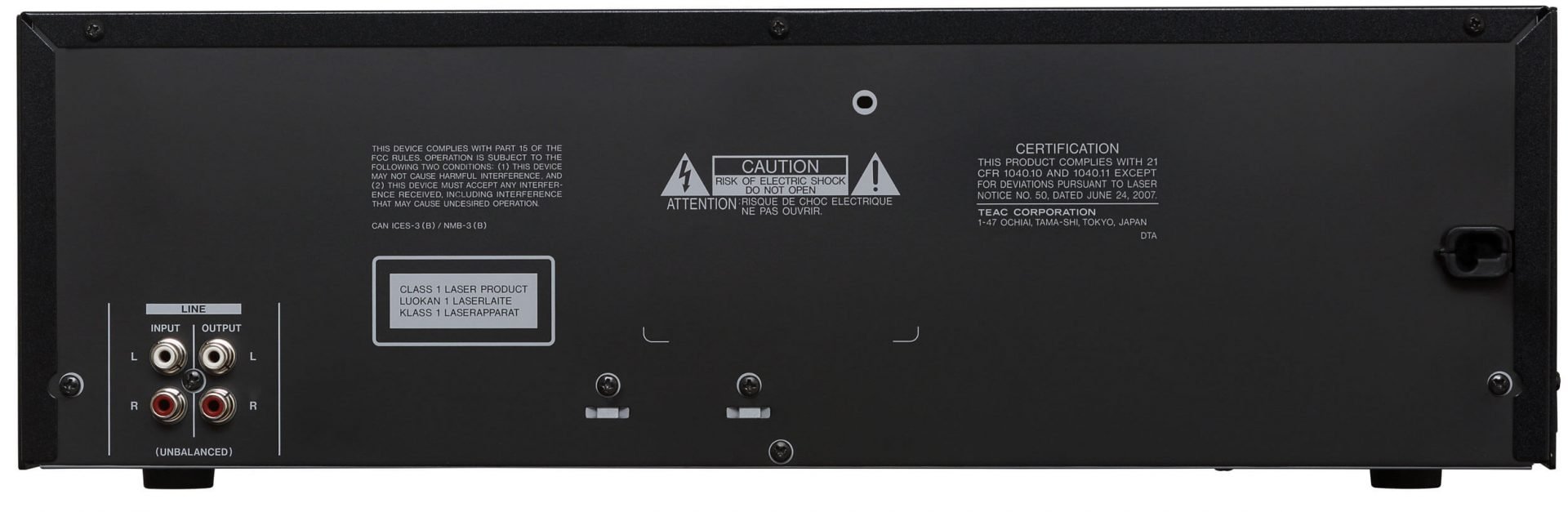

- RCA unbalanced analogue inputs and outputs
- Headphones output with level control
- LC display with level meters
- Wireless remote control unit included as standard
- 3U rack-mountable chassis
Specifications:
Ratings (cassette deck)
Track system
2-channel, stereo
Heads
Record/playback head ×1, erase head ×1
Supported cassette types
C-10 – C-90
Supported tape types
Playback
Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV)
Recording
Normal (TYPE I), Chrome (TYPE II)
Tape speed
4.76 cm/s
Motor
DC servo motor
Pitch Control
±10 % (playback only)
Fast winding time
Approx. 120 seconds for C-60 tape
Audio performance (cassette deck)
Wow and flutter
0.25 % (WRMS)
Frequency response
50 Hz – 12.5 kHz ±4 dB (Chrome, Normal)
S/N ratio
59 dB (max. input level, A-weighted)
Analogue inputs and outputs (cassette deck)
Line input (unbalanced)
RCA
Nominal input level
–4.5 dBu (0.46 V)
Input impedance
>50 kΩ
Line output (unbalanced)
RCA
Nominal output level
–4.5 dBu (0.46 V)
Nominal output impedance
>50 kΩ
Ratings (CD player)
Supported disc types
CD, CD-R, CD-RW (12 cm, 8 cm)
Supported disc formats
Audio CD
File format: CD-DA
Sampling frequency: 44.1 kHz
Quantization bit rate: 16-bit
Audio channels: 2
Data CD (ISO 9660 Level 1/Level 2)
File format: MP3
Modes: Stereo, Joint Stereo, Dual Channel, Mono
Sampling frequency: 16 kHz – 48 kHz
Bit rates: 8 kbit/s – 320 kbit/s
Not compatible with DRM (Digital Rights Management)
Audio performance (CD player)
Frequency response
20 Hz – 20 kHz, ±2 dB
Distortion (THD + N)
<0.02 % (1 kHz)
S/N Ratio
>87 dB (IHF-A)
Analogue output (CD player)
Maximum output level
+6 dBV (2 V)
Ratings (USB recorder/player)
Playback
File format
MP3
Sampling frequency
16 kHz – 48 kHz
Bit rate
8 kbit/s – 320 kbit/s
Not compatible with DRM (Digital Rights Management)
Recording
File format
MP3
Sampling frequency
44.1 kHz
Bit rate
128 kbit/s
Folder support
up to 8 levels
Audio Performance (USB recorder/player)
Playback
Frequency response
20 Hz – 20 kHz (±2 dB)
S/N ratio
>85 dB
Recording
Frequency response
CD -> USB: 20 Hz – 15 kHz (±3 dB)
LINE IN -> USB: 100 Hz – 15 kHz (±3 dB)
S/N ratio
>85dB
Analogue input and output (USB recorder/player)
Nominal input level (RCA)
–4.5 dBu (0.46 V)
Maximum output level (RCA)
+6 dBV (2.0 V)
USB port
USB 2.0 FULL SPEED (12 Mbit/s)
Connector
USB A-type
Headphones output
Connector
6.3-mm stereo jack
Nominal output level
10 mW + 10 mW
Distortion (THD+N)
0.1 % (32 Ω, CD MONITOR)
Power supply and other specifications
Power
AC 230 V, 50–60 Hz
Power Consumption
13 W
Dimensions (W × H × D)
483 mm × 139 mm × 290 mm
Weight
6.0 kg
Permissible operating temperature
5–35 °C
Supplied accessories

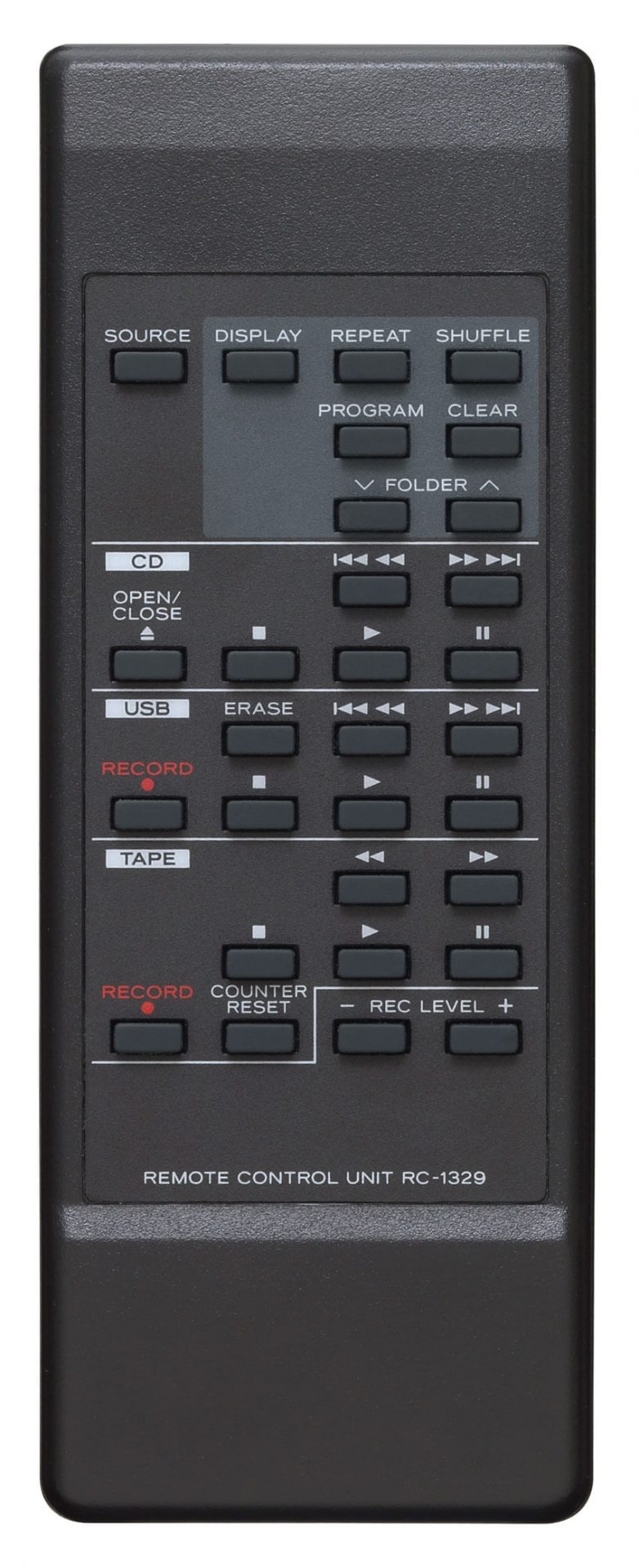

Remote control (RC-1329)
2 AAA batteries
1 rack mounting screw kit
Owner’s manual
