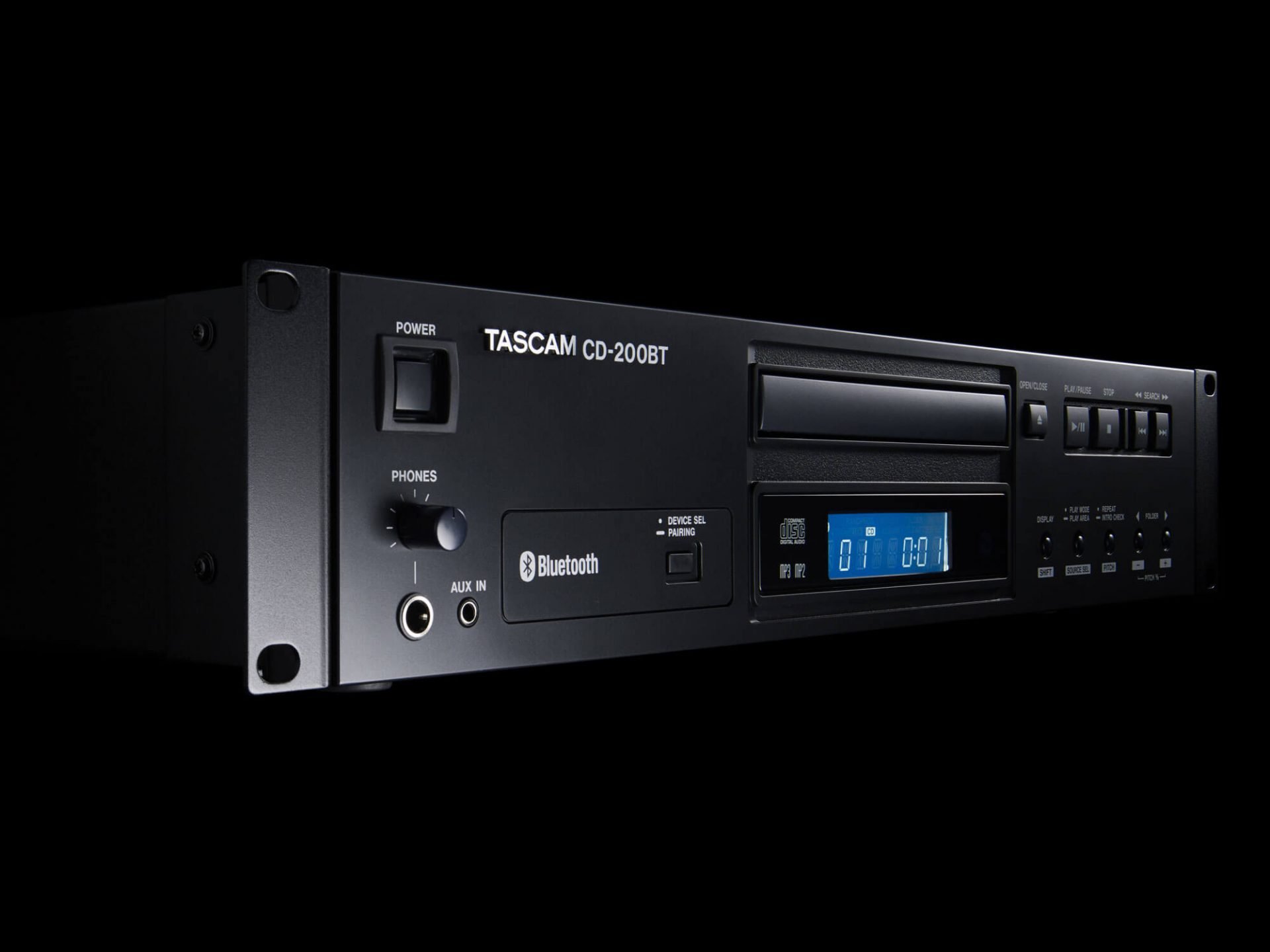

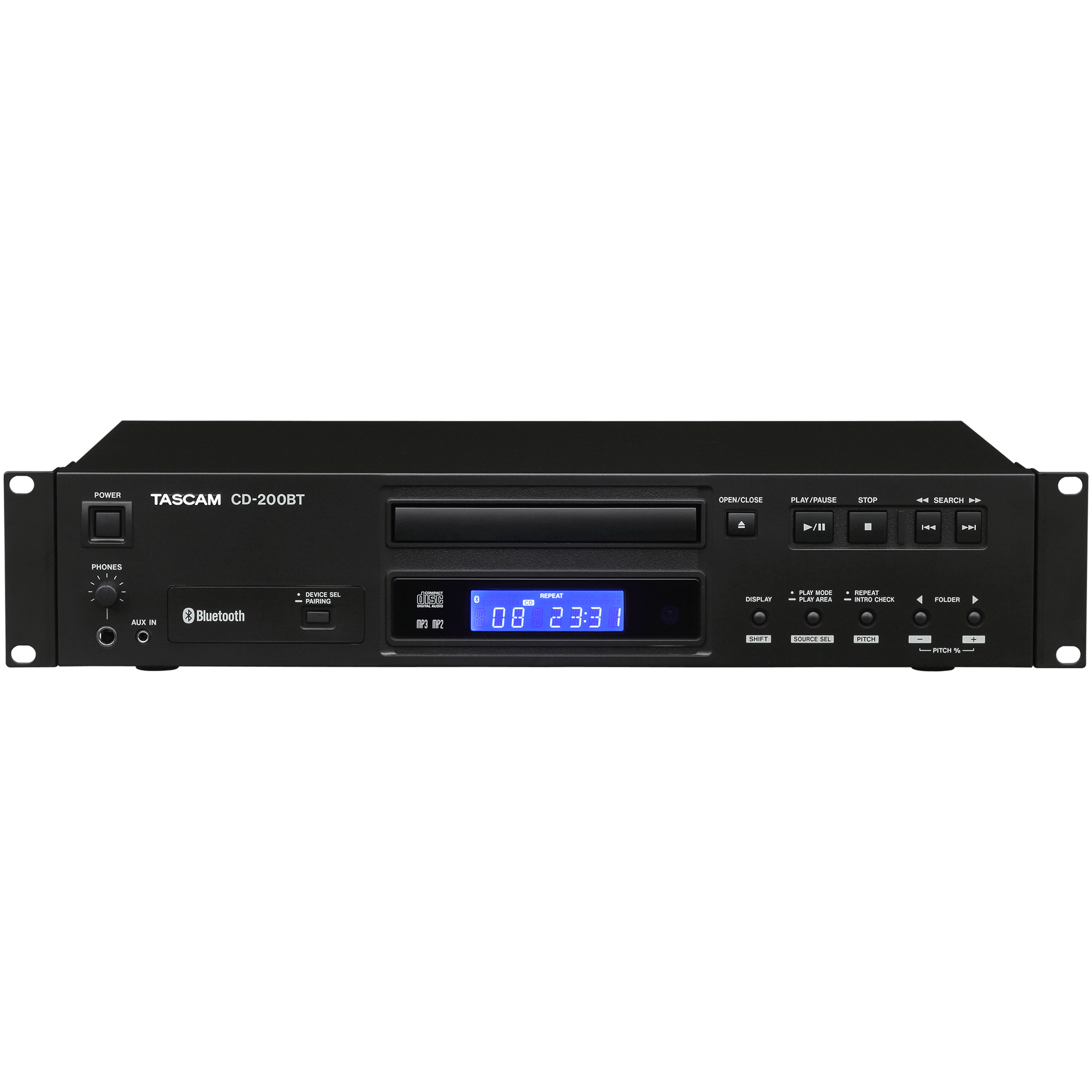

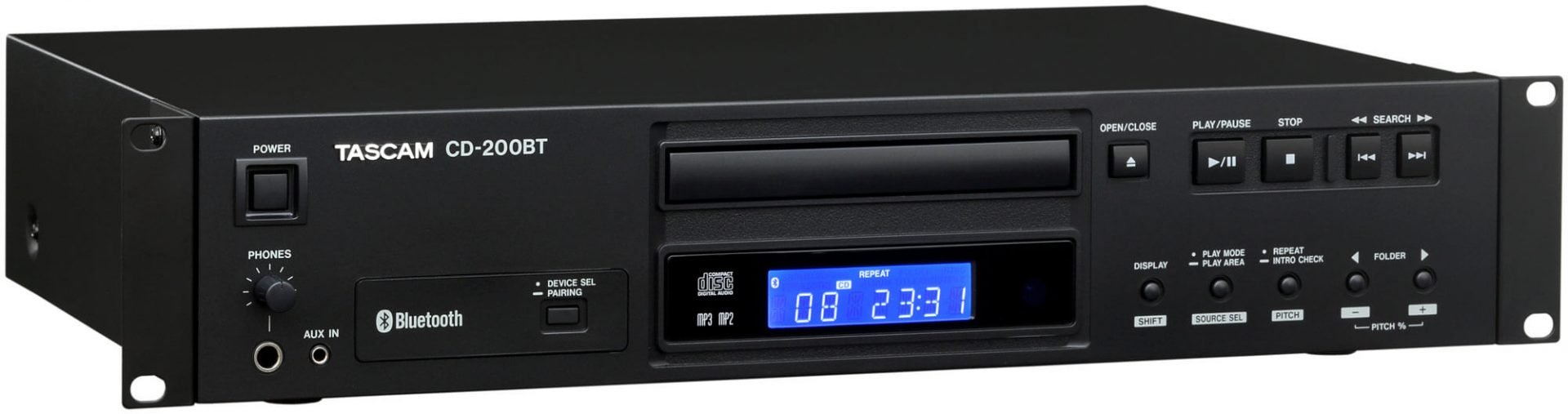

Tascam CD-200BT

The CD-200BT is the next highly anticipated model in the top selling “CD-200” series. It is designed to meet the increasing demand for playback from various audio formats and devices compatible with Bluetooth® technology.

Users can pair up to 8 Bluetooth devices at a time in order for quick switching and playback. Also supported is the use of the aptX® codec to ensure a much higher quality and more reliable audio signal transmitted via Bluetooth. The unit is equipped with controls for fast track/file selection, multiple playback modes, ±14% pitch control and also includes a wireless remote control. Like all models in the signature “CD-200” series, the CD-200BT features Tascam’s esteemed CD-5020A transport to provide quiet playback, smooth loading and longevity while being outfitted with shockproof memory. To ensure easy set-up in any system, there are stereo line RCA, coaxial and optical audio outputs, as well as a headphones output with level control for monitoring.

The CD-200BT is the perfect 2U rack-mountable addition to any commercial or public space audio install. With its wide array of options and playback features the CD-200BT can meet nearly any demands one might encounter for reliable, high-quality audio playback.

Features:

• Easy-to-use, affordable CD player with Bluetooth receiver
• Various playback options:
  • Audio CD playback
  • MP3 and WAV file playback from CD
  • Internet radio or network file playback via a Bluetooth connection with a smartphone or computer
  • Playback from other audio sources via AUX IN connector
• Bluetooth apt-X codec provides high quality audio transmission with low latency (AAC and SBS are also supported)
• Up to eight different Bluetooth devices are memorized and can easily be selected with a dedicated button
• High-quality TEAC audio CD drive (supports CD-R and CD-RW)
• Folder selection for MP3 and WAV CDs
• Continuous, Random and Program playback modes
• Repeat playback (Single, All, Folder)
• Intro Check feature
• CD text and ID3 tag support to display artist and track information if available
• Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
• ±12.5 % pitch control

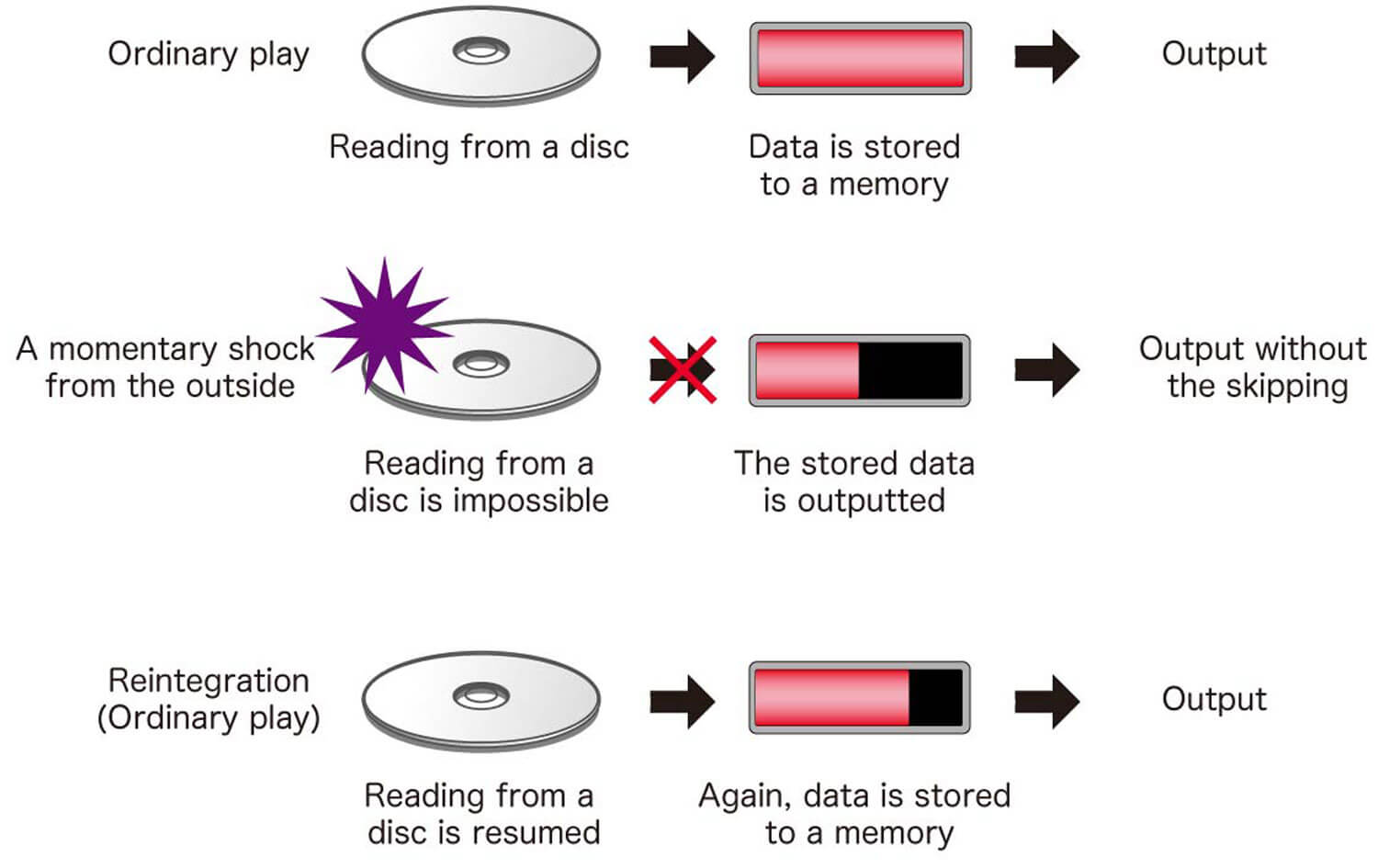

• Anti-shock memory
• Headphones output with level control

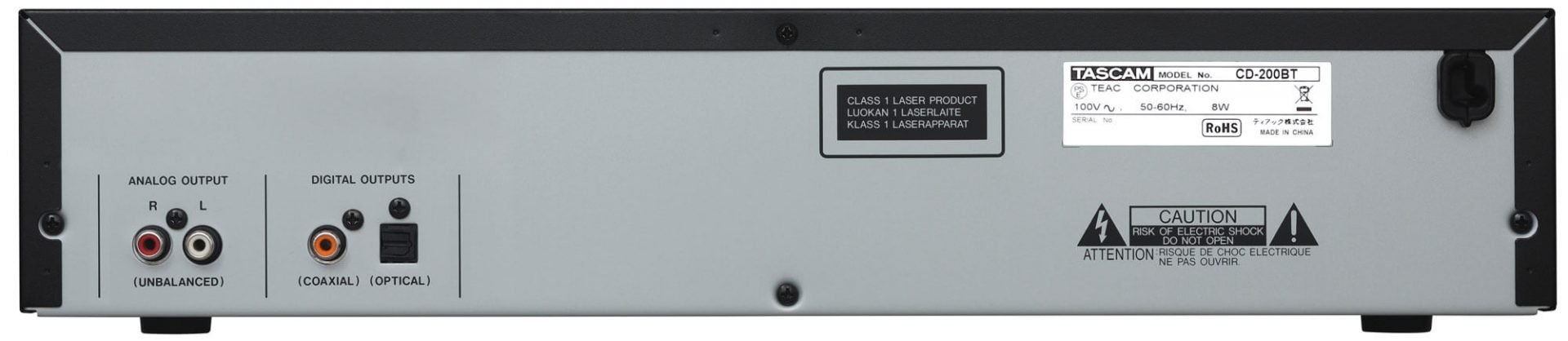

• Analogue output (RCA)
• SPDIF digital outputs (coaxial and optical)

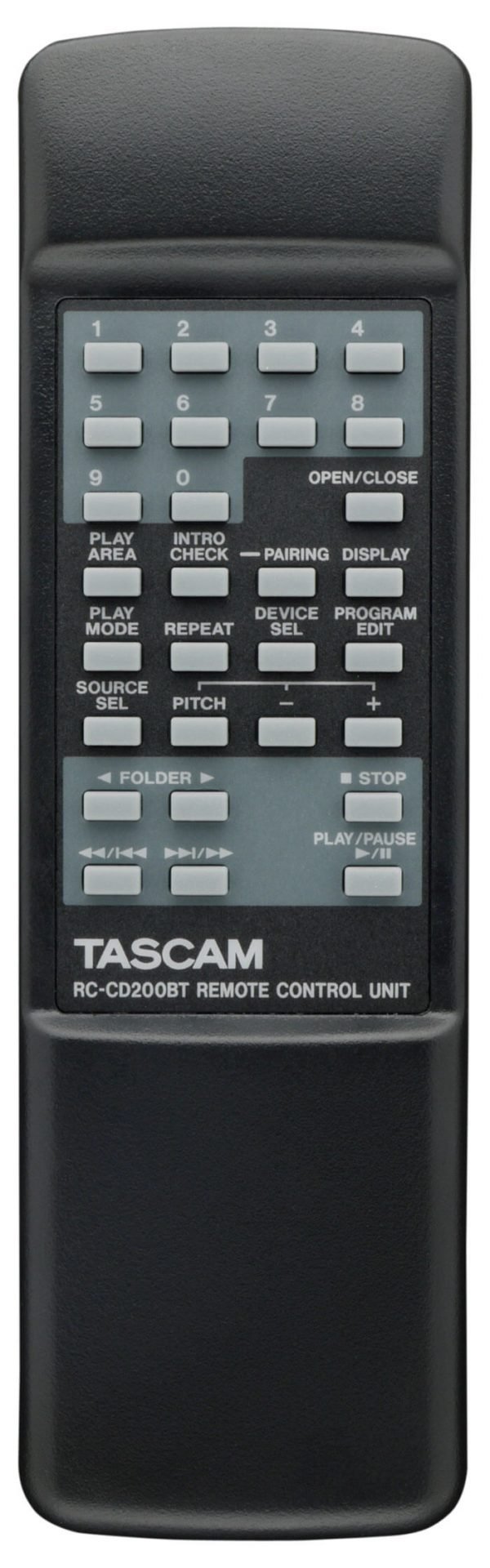

• Wireless remote control included
• 19-inch rack-mount chassis (2U)



Specifications:

General Supported disc types CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text) Playback file formats     CD-DA 44.1kHz, 16-bit stereo   MP2 32/44.1/48kHz, 32–384kbps (data CDs)   MP3 32/44.1/48kHz, 32–320kbps, VBR (data CDs)   WAV 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs) Analogue audio inputs and outputs Analogue audio input AUX IN jack, 3.5-mm stereo mini jack   Nominal input level –20 dBV   Maximum input level –4 dBV   Input impedance 22 kΩ Analogue output (unbalanced) RCA pin jack   Output impedance 200 Ω   Nominal output level –10 dBV (0.32 Vrms)   Maximum output level +6 dBV (2.0 Vrms) Phones output 6.3-mm stereo phone jack   Maximum output power 20 mW + 20 mW (THD+N: 0.1%, 32 Ω) Digital audio outputs Digital output (coaxial) RCA Pin Jack   Compatible signal format IEC-60958-3 (SPDIF) Digital output (optical) TOS (JEITA RC-5720C)   Compatible signal format IEC-60958-3 (SPDIF) Audio performance Frequency Response 20 Hz – 20 kHz ±1.0 dB (during playback, JEITA) Signal-to-Noise Ratio (S/N) >90 dB (during playback, JEITA) Total Harmonic Distortion <0.01% (during playback, JEITA) Dynamic Range >90 dB (during playback, JEITA) Channel Separation >90 dB (during playback, JEITA) Bluetooth Version 3.0, Class 2 (approximate transmission distance: 10m*) Supported profiles A2DP, AVRCP Supported A2DP codecs SBC, AAC, aptX Supported A2DP content protection: SCMS-T *The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves. Power supply and other specifications Power requirements AC 230 V, 50 Hz (U.K./Europe) Power Consumption 8 W (U.S.A./Canada/U.K./Europe) Dimensions (W x H x D) 481 mm x 95 mm x 298 mm Weight 4.5 kg Operating Temperature 5–35 °C Inclination of installation 5° or less
