SG SDJ SLIMPAR7DL

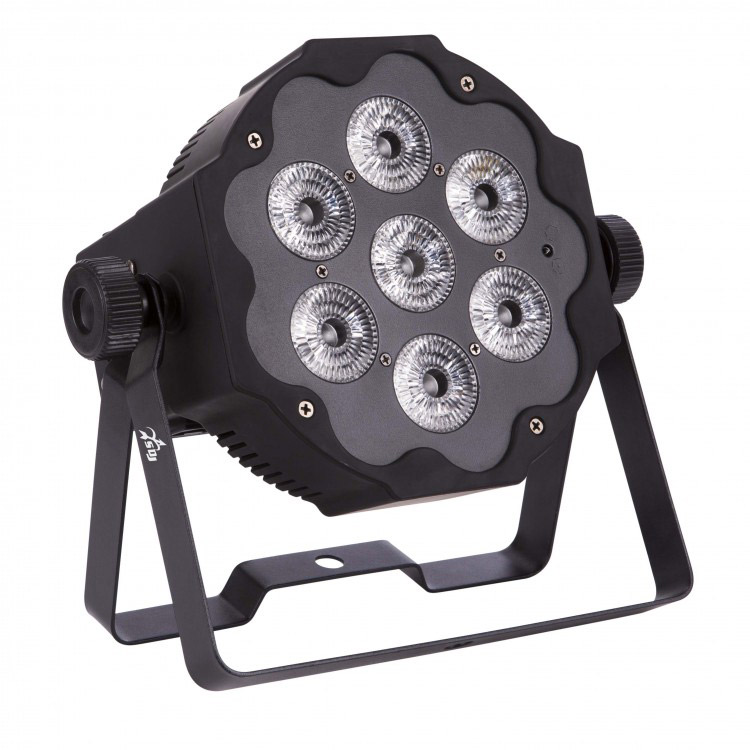

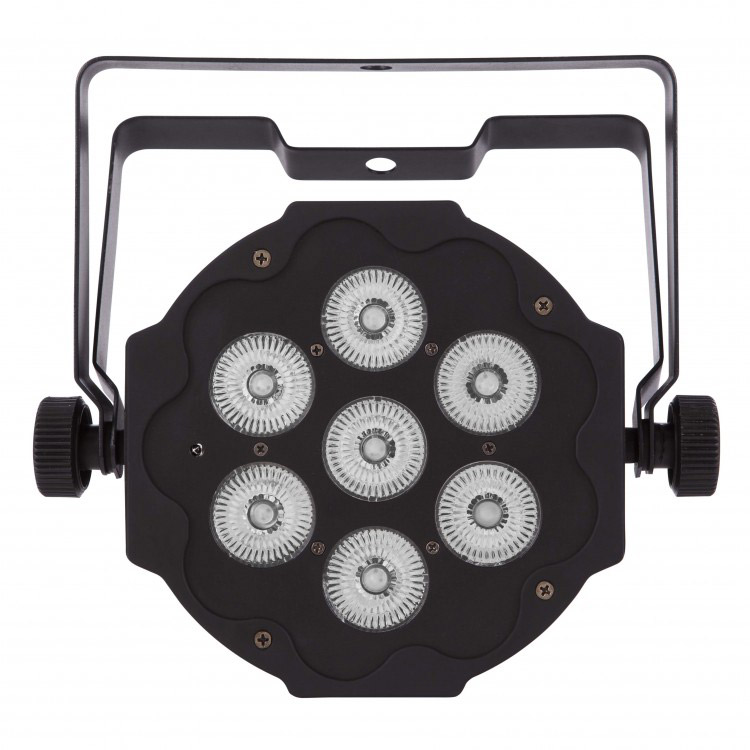

Projector Slimpar DL 7X12W led RGBWAU/FC IRC (included)

SLIMPAR rewrites lighting techniques. The line was completely designed to meet the needs
of occasional users; the main feature of the projectors of this new line are asy to use,
as all the functions of the projector have been fully simplified and optimised, by adding
the IR control (included) that facilitates all the operations, giving the possibility to
recall preset programs or colours without using the DMX signal.
The Slimpar line also offers different sizes and sources among the variety of colour
possibilities, as well as the next generation DL (Dark Light) technology. By using these
innovative 6 in 1 RGBWAU high efficiency LED sources it is possible to achieve ultraviolet
light, which is now so popular in many dance events, while maintaining the many other
colour shades reproduced by full colour RGBWA, RGBW, RGB sources. The body of all Slimpar
projectors is made of ABS plastic ensuring maximum strength; the limited size offers various
possibilities of use and suspended installation, thanks to the practical anchoring brackets
and in the supported light up position, using the unique design of the projector directly.

Light source
7x12W led RGBWAU Full Color
LED lifespan: >50.000h
LED refresh frequency: >400Hz flicker free

Optic system
Beam angle: 25°
Luminous flux: 2290 lux @3mt (25°)

Color system
LED source 6 in 1 RGBWAU Full Color
Infinite chromatic possibilities and colour temperature control
Color temperature control with Amber color
"Dark Light" technology LED UV (Ultra Violet)
2 color macros can be recalled by DMX

Effects
Linear Dimmer 0-100%
Electronic strobe: 1-20 flashes/s with adjustable speed

Control and programming
4 DMX configurations available: 1/6/7/10 channels
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable mic sensitivity
Static color mode with independent adjustment of strobe
Automatic mode with 2 different programs selectable from the display with independent
adjustment of the speed and strobe
Color mode with 50 different pre-programmed color macros with independent adjustment
of the strobe
IR remote controller included with possibility to recall colors or macros

Structure and cabinet
ABS housing, black color

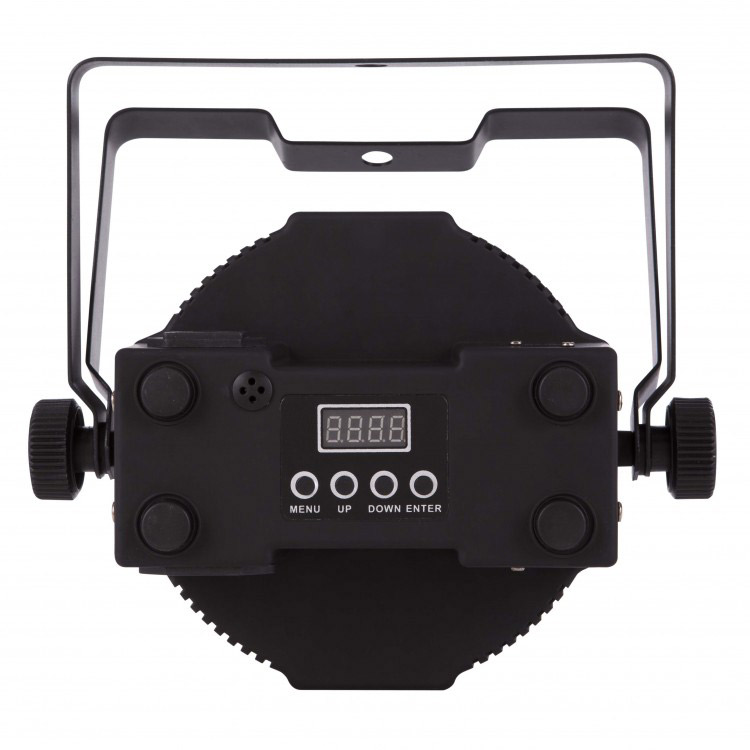

Red LED display
Mounting points: double adjustable bracket
"light up" positioning without brackets

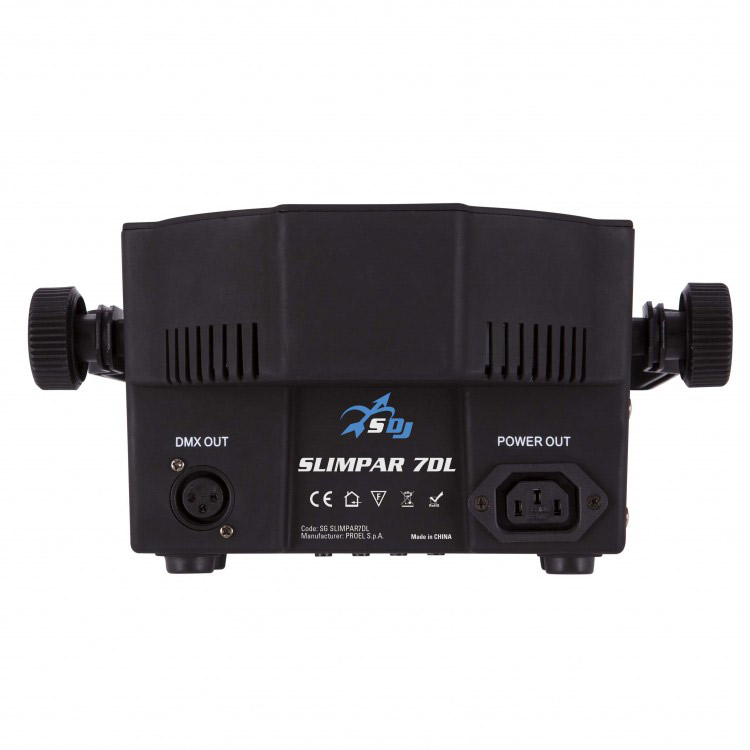

3-poles XLR in/out connection
IP rating: IP 20
Forced air fan cooling system

Power supply
Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 100W
Power IN/OUT connection with VDE socket
Power supply cable 1,5 mt included
Max 6 pcs linkable @240V

Weight and dimensions
Net weight: 2,1 kg
Dimensions: 257x130x240 mm
