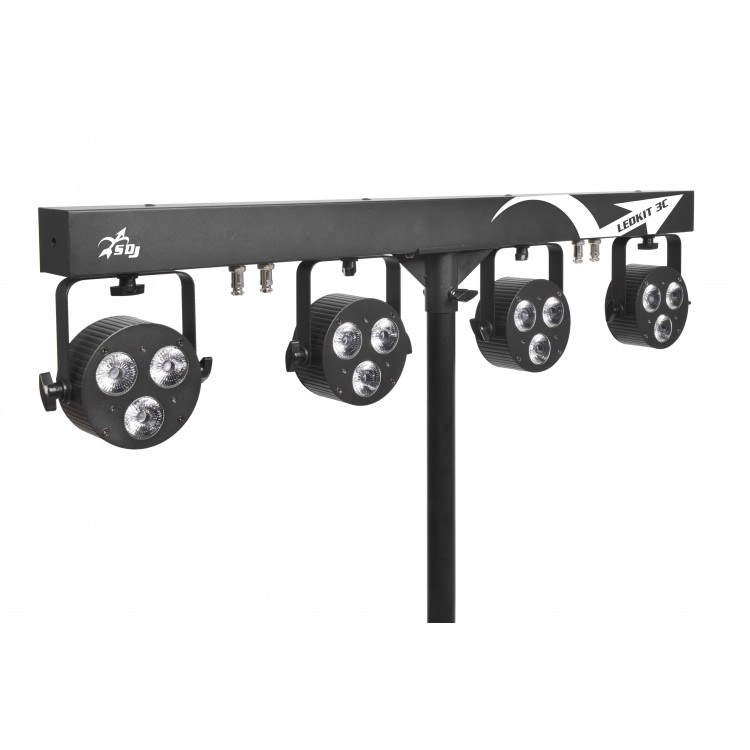

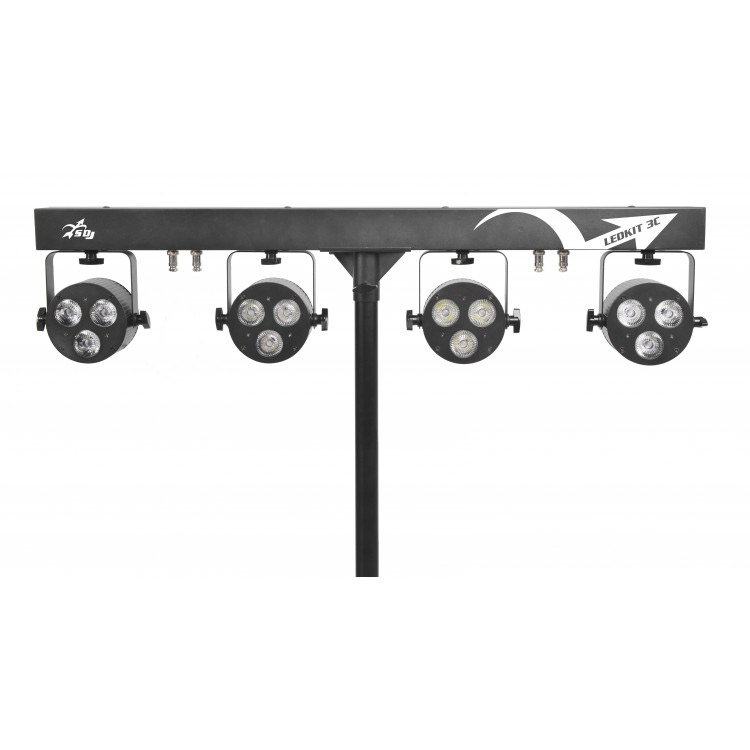

SG SDJ LEDKITHP3C

Led kit 4 projectors 3X6W led RGBW/FC

SDJ boasts one of the most extensive selections when it comes to ready to use
"plug and play" LED systems. The LED Kit series consists of a portable colour
changing LED set, suitable for any user, whether experienced or not. A handy
stand with 3 feet (supplied) supports the light bar, a pedal assures easy control
of the entire system and one handy bag (included) assure fast and secure transport
of the light bar. The smallest one of the series, but no less effective, can count
on 4 high power 6W LED sources with 4 in 1 RGBW full colour technology. The high
power and the addition of white makes this kit unique for indoor entertainment.
The light bar is also equipped with two adjustable side brackets for fastening
to structures or in "light up" positions on the ground. For the most demanding
users, a control has been added that operates via the DMX signal , to fully
customise all the functions and performance of the entire system.

Light Source
Kit 4 projectors 3x10W led RGBW Full Color
LED lifespan: > 50.000h

Optic system
Beam Angle: 25°

Color system
Led Source 4 in 1 RGBW Full Color
Infinite chromatic possibilities

Effects
Linear dimmer 0-100%
Adjustable strobe effect
Auto mode can be recalled by DMX

Control and programming
5 DMX configurations available: 4/6/10/16/18 channels
Each projectopr can be controlled independently via DMX
Protocol USITT DMX 512
Master/Slave mode
Sound mode with adjustable microphone sensitivity
Automatic mode with 6 different programs selectable from the display or footswitch,
with adjustment of the speed
Color mode with 9 different pre-programmed color macros

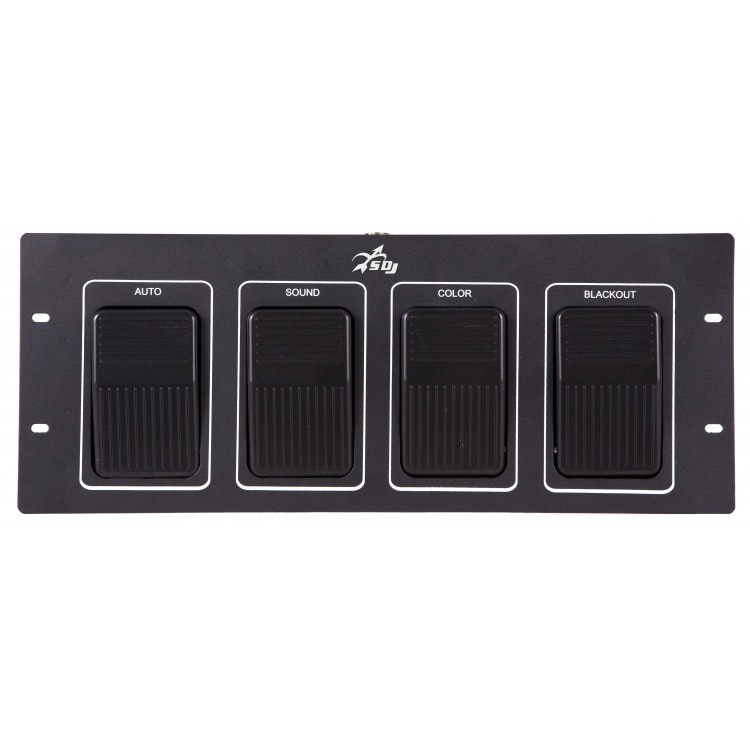

Footswitch control included: Blackout, Sound, Auto, Freeze

Structure and cabinet
Black metal housing
Red LED display
Mounting points: double adjustable brackets
"light up"positioning
XLR 3-poles DMX IN/OUT connection
IP rating: IP20
Stand max. H 2200
Soft bag for bar for transport included

Power supply
Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Power consumption: 80W
Power supply cable included

Weight and dimensions
Bar net weight: 5,8 kg
Stand net weight: 2,8 kg
Bar dimensions 950x90x230 mm
