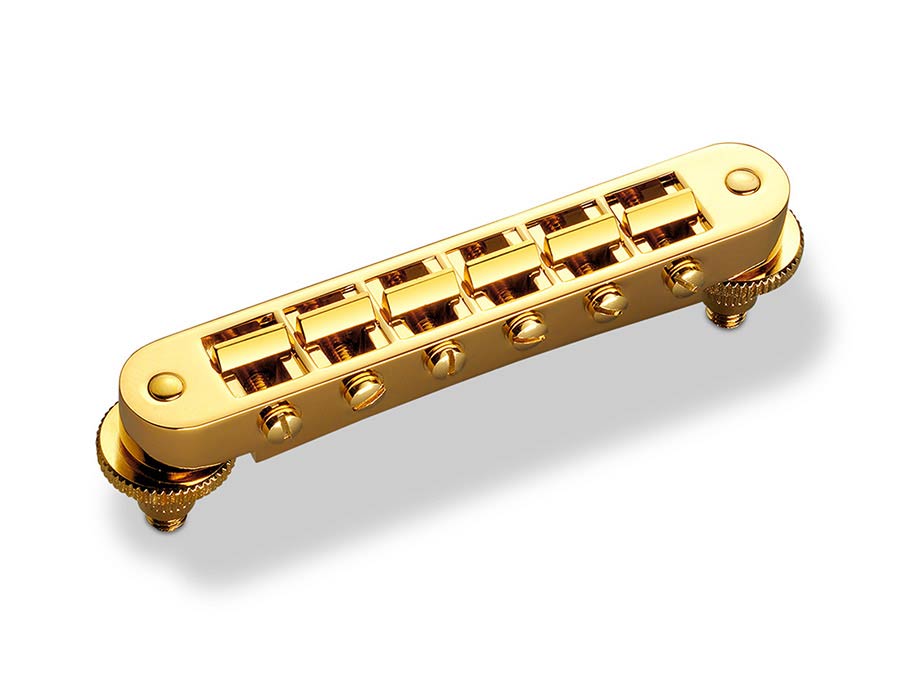

Schaller GTM Tune-O-Matic Guitar Bridge - Gold

High-quality Tune-o-matic bridge for all Les Paul™* type guitars

• Compatible with post spacings from 74.0 - 74.5 mm
•

• Features special retainer springs to prevent bridge rattle or string buzz
•

• Saddles supplied without preconfigured string grooves allowing for individual string spacing
•

• Saddles are from brass
•

• Slant angle to be determined by guitarmaker based on scale length and string gauge.
•

• Installation: the screws have to show to the tailpiece.
•

• (*Les Paul is a protected trademark owned by Gibson Musical Instruments Corporation).

technical specification

distance height adjustment screws 74 - 74,5mm, string radius 12“ (usable for fretboard 12-16 inch), minimal G/d string height above body 13,7mm, weight 53g (70g with accessories), for lefty: yes
