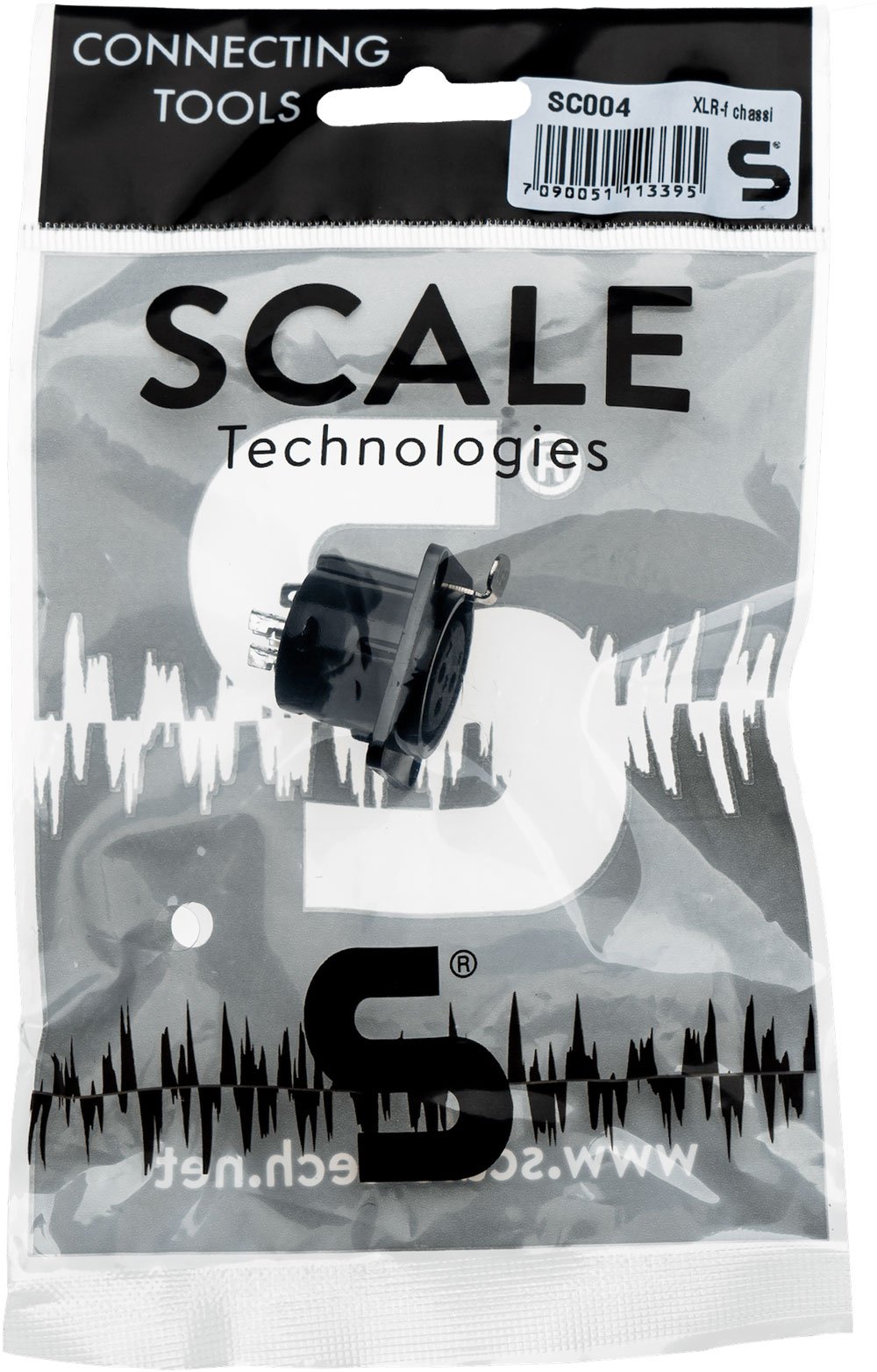

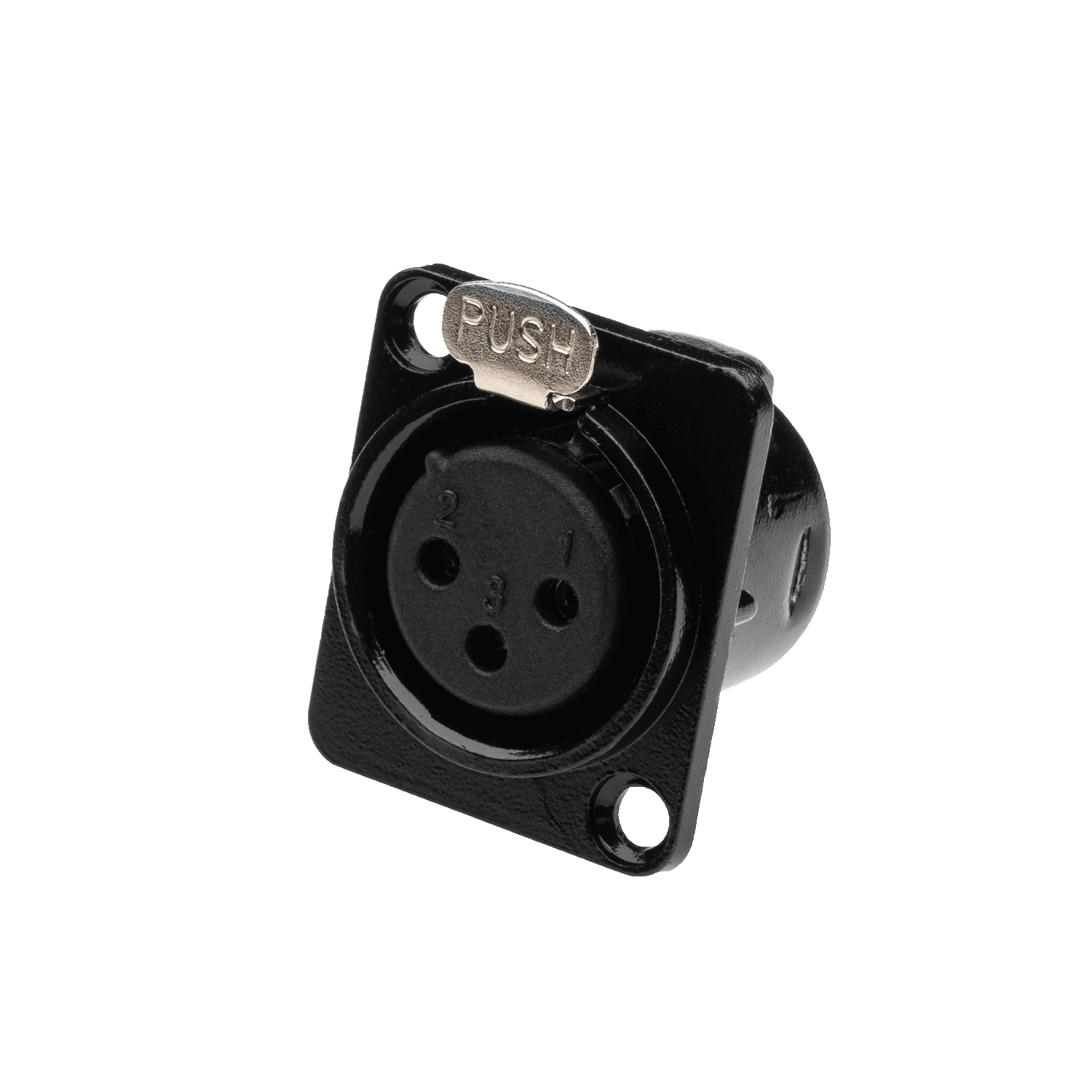

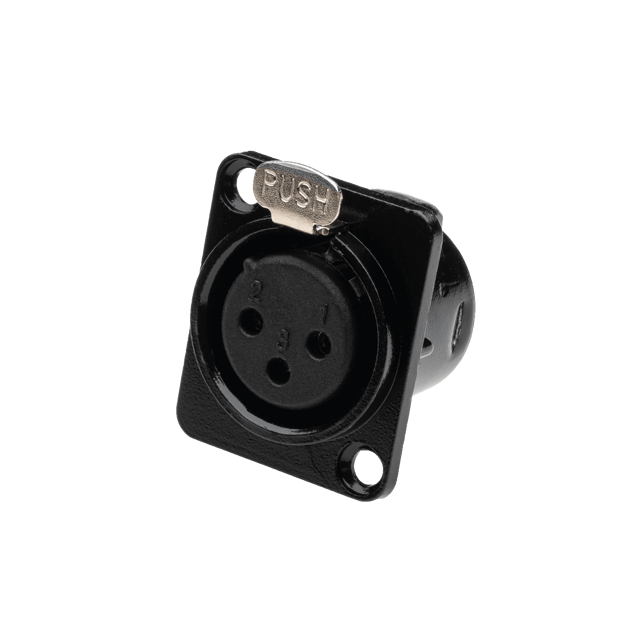

The SC004 is a 3-pole Female Receptacle with solder cups, black metal housing and silver over nickel plated bronze contacts. It has polyamide insert, latch locking device, black chromium-plated zinc die-cast shell and steel Ck67 locking element. Features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Unique cage type female contact on 3-pole version increases conductivity and reduces wear on the mated male contact.
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
