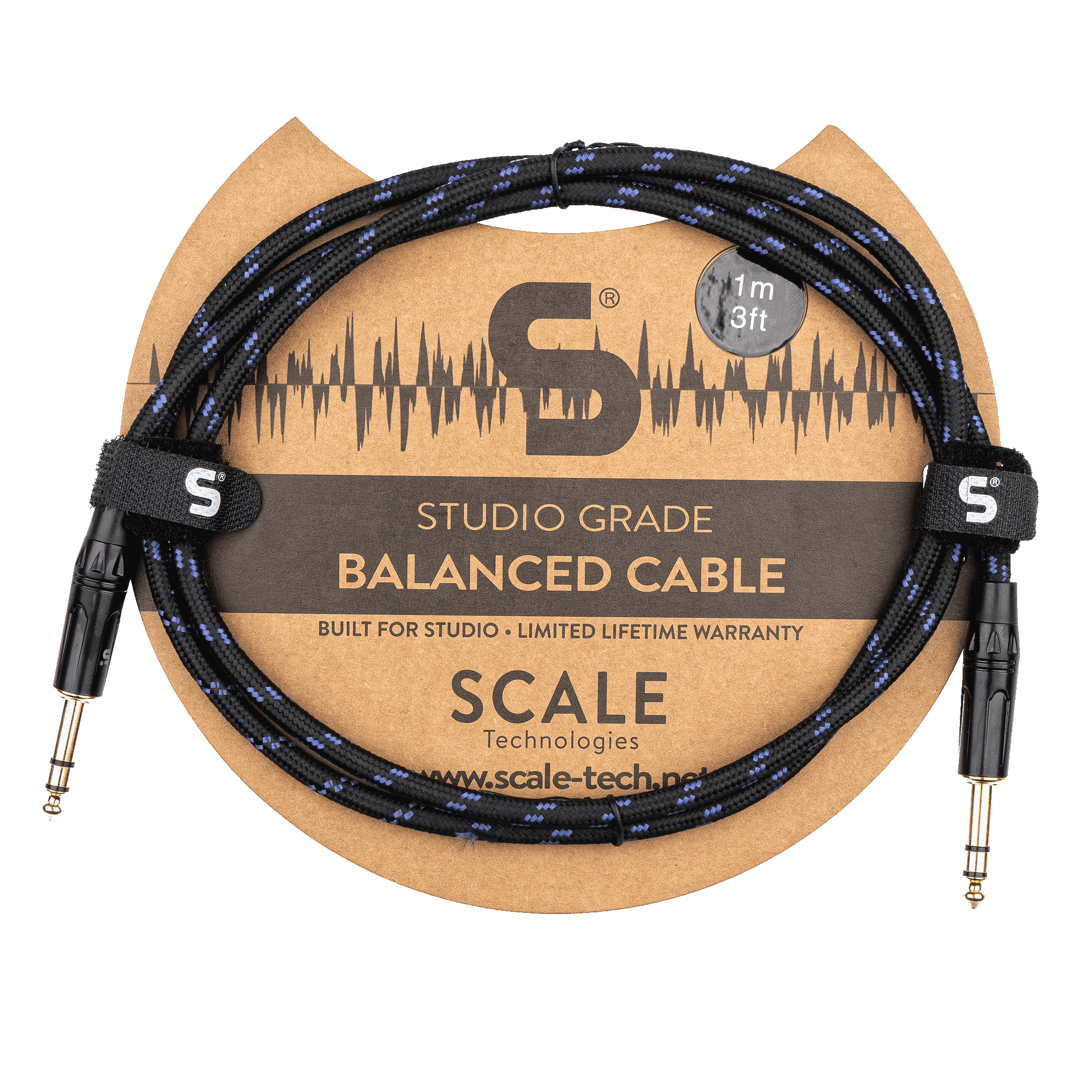

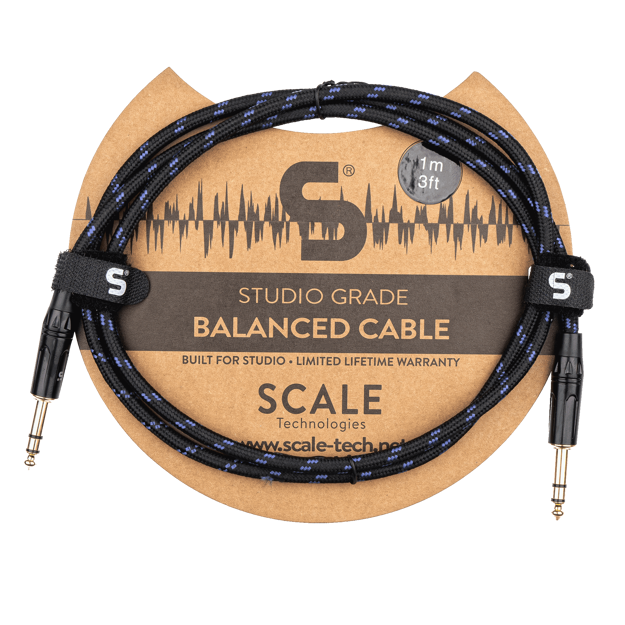

Scale balansert kabel SGB-TRS-0100 - 1 meter

Studio Grade cables are precisely overbuilt to stand up to the most grueling conditions imaginable
Our Studio Grade cables are precisely overbuilt to stand up to the most grueling conditions imaginable, in a plethora of styles and colors that will give your rig a unique and vivid voice! Our cables are designed to provide the highest quality performance with outstanding value. We understand your cables need to sound great and perform reliably, night after night, without costing you an arm or a leg! That’s why we use a high quality 6,5mm woven, and resists kinking and tangling. Our proprietary OFC conductor technology and robust shielding is designed to ensure your sound is crystal clear, without noise or interference, every time. Each cable is hand tested before shipment, and we back up our quality with a lifetime warranty so you can be sure your Scale Technologies Cables will be an integral part of your rig for years to come.

4-core twining process
4-core twining process (2 conductors +2 filled PVC tubes). The advantage of this is that the physical structure of the four-core is more stable and produces less noise when the cable is moving compared to the two-core cable

Features:

• High performance balanced TRS cable
• Unique, high quality, woven outer covering (6,5mm)
• Hand soldered Custom 1/4-inch TRS connector with 24K gold-plated contacts
• Conductor: 28 x 0.10 x 2mm (OFC)
• PVC Jacket: 6 mm
• Spiral shield: 84 x 0.10 (OFC)
• 4-core twining process: 4-core twining process (2 conductors +2 filled PVC tubes)
• Included 2 cable straps
• Lifetime guarantee
• Available in 1 meter, 3 meter and 6 meter

Specifications:

• Cable:
  • Type: Custom Tweed Cable
  • Color: black with blue pattern
  • Overall diameter: 6.5 mm +/- 0.1 mm
  • Conductor area: 0.22 mm2 / AWG 24
  • Composition of conductor: 28 x 0.10 mm, bare annealed copper, OFC
  • Conductor insulation: LD-PE Ø 1.35 mm
  • Composition of cores: 4-core twining process, 60 MM one turn, left hand
  • Composition of conductor: 28 x 0,10 mm
  • Filler: Cotton Strand
  • Shield: 84 *0.10 mm, bare annealed copper, OFC
  • Jacket material: Phthalate free PVC with restricted substance
  • Working temperature: Mobile: -5°C to +70°C, Fixed: -20° to +70°C
• Connectors:
  • Model name: SC002 / SC002
  • Product type: TRS male / TRS male
  • Number of poles: 3
  • Contact surface: black
  • Connection type: solder contact
  • Colour: gold
  • Housing: Cast zinc
  • Clamping sleeve: Polyacetal (POM)
  • Temperature range: -30 °C to +80 °C
