PROEL V10 FREE

PROEL V FREE systems gives you the freedom to perform your music or play your
sound anywhere, with a superb sound quality and without the hassle of laying
down cables or finding a power outlet.
V10FREE and V12FREE are battery-powered portable sound systems featuring a
powerful 400W amplifier, a built-in 3-channel mixer with effect and tone
controls and an advanced MP3 player with BLUETOOTH connectivity, featuring a
large back-lit LCD display and able to play songs from SD card, USB MEMORY STICK
or directly from your smartphone or tablet.

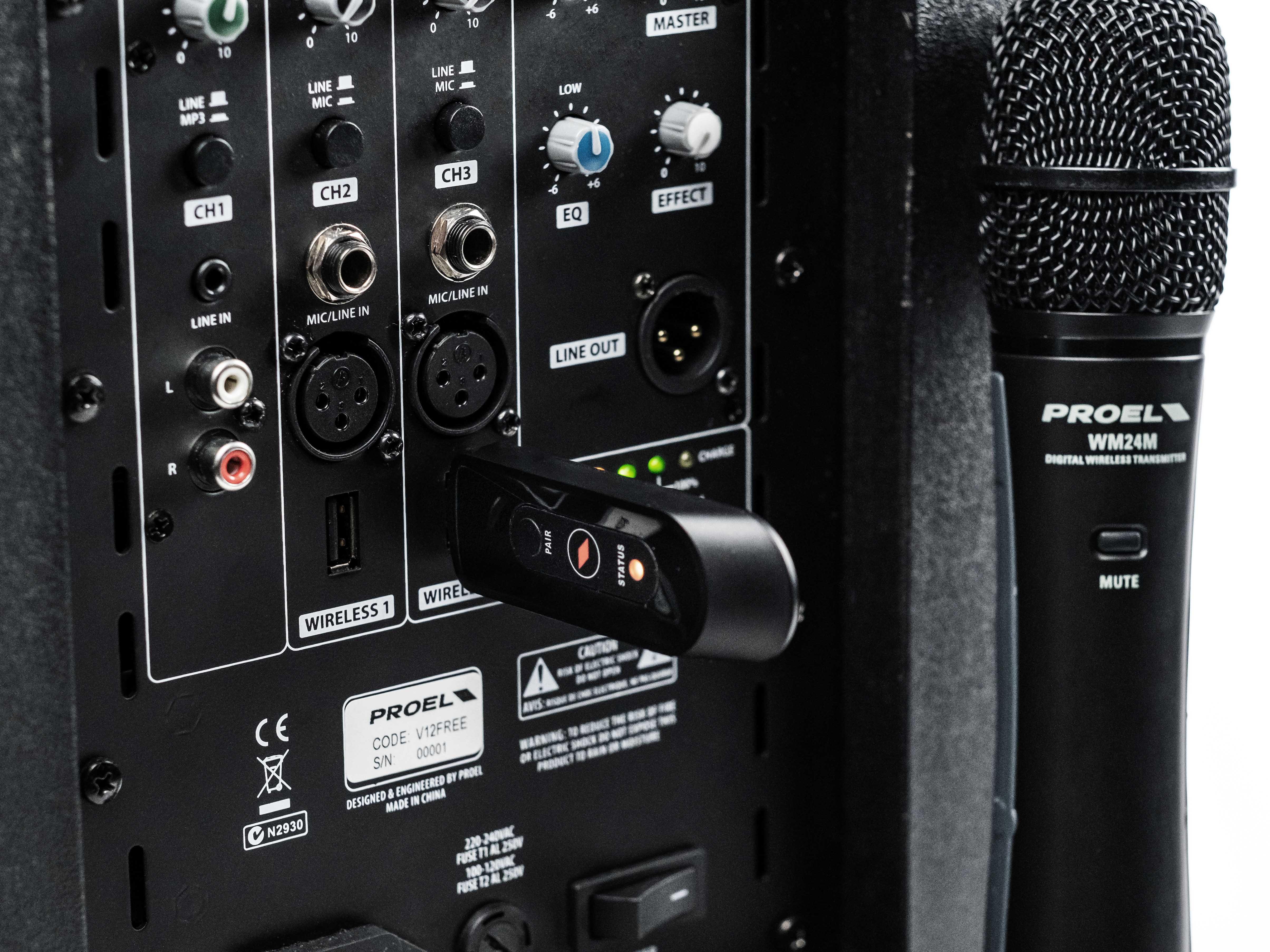

They includes also two USB inputs for connecting PROEL U24H or U24B 2.4GHz Wireless
Microphones with USB receiver, available both with handheld and bodypack transmitter.
Just plug in the ultra-compact USB receiver and you can instantly  use a professional
wireless system, offering a high-definition, interference-free transmission thanks to
the 2.4GHz technology.
The the premium loudspeakers, the Class D power amplifier and the sophisticated processing
provide a superb sound quality, while the built-in Li-ion battery allows for up to 10 hours
of mains-free continuous operation, for the maximum freedom of use.
Both these ultra-portable and light-weight systems (10kg and 11kg respectively) can be
installed on standard speaker poles and the V12FREE is fitted with a luggage-style extra
handle and two wheels.
Incredibly simple to set-up and use , V FREE loudspeakers are perfect for a wide range of
applications, including parties, schools, corporate and educational presentations, seminars,
gym, weddings, live music and even DJ sets.


- All-in-one battery powered sound system
- MP3 PLAYER with USB port, SD slot, BLUETOOTH connection and LCD
- 2 MIC/LINE + 1 STEREO LINE inputs
- 2 USB inputs for the use of 2.4GHZ U24H and U24B wireless microphones
- 1 LINE output
- HIGH + LOW EQ controls
- Built-in EFFECT
- 400W Class D amplifier
- 1 horn loaded neodymium compression driver and 10 woofer
- Li-ion battery with 10-12 hours working time
- Compact and light-weight PP cabinet with top handle




MIXER Section
MONO inputs			2 x MIC/LINE IN (XLR-F + 1.4" JACK)
STEREO input			1 x LINE IN (2xRCA + MINI-JACK)
WIRELESS inputs			2 x USB TYPE-A
Internal EFFECT	ECHO
Outputs				MONO LINE OUT (1.4" JACK)
Main EQ				2-band EQ (HIGH + LOW)

MULTIMEDIA Section
Player Type			USB / SD / BLUETOOTH player with BT LINK
Compatible File Formats	MP3
Control Interface		LCD display, CONTROL buttons

AMPLIFIER Section
Total Peak Power		400 W
Continuous Power		200 W
Amplifier Type			Class D
Power Supply			SMPS
Processing			Analog

LOUDSPEAKER Section
System Type			2-way vented enclosure
High Frequency Device		1" horn loaded neodymium compression driver
Low Frequency Device		10 woofer with 1.5 VC
Angular Coverage		90° H x 60° V
Frequency Response		60 Hz - 20 kHz
Max SPL	122

GENERAL Specifications
Construction			Polypropylene
Cabinet Colour			Black
Handles				1 x top
Wheels				-
Mounting Pole			1 x bottom
Dimensions 			(WxHxD)	330 x 514 x 286 mm
Weight				10 kg (22.1 lb.)
Recharge Battery		11.1 V / 8000 mAh Li-ion
Battery Recharging		 Time	4-5 hours
Battery Working Time		10-12 hours
Power Supply			100 V-240 V~ 50/60 Hz
Rated Consumption		300 W
