PROEL SESSION 6

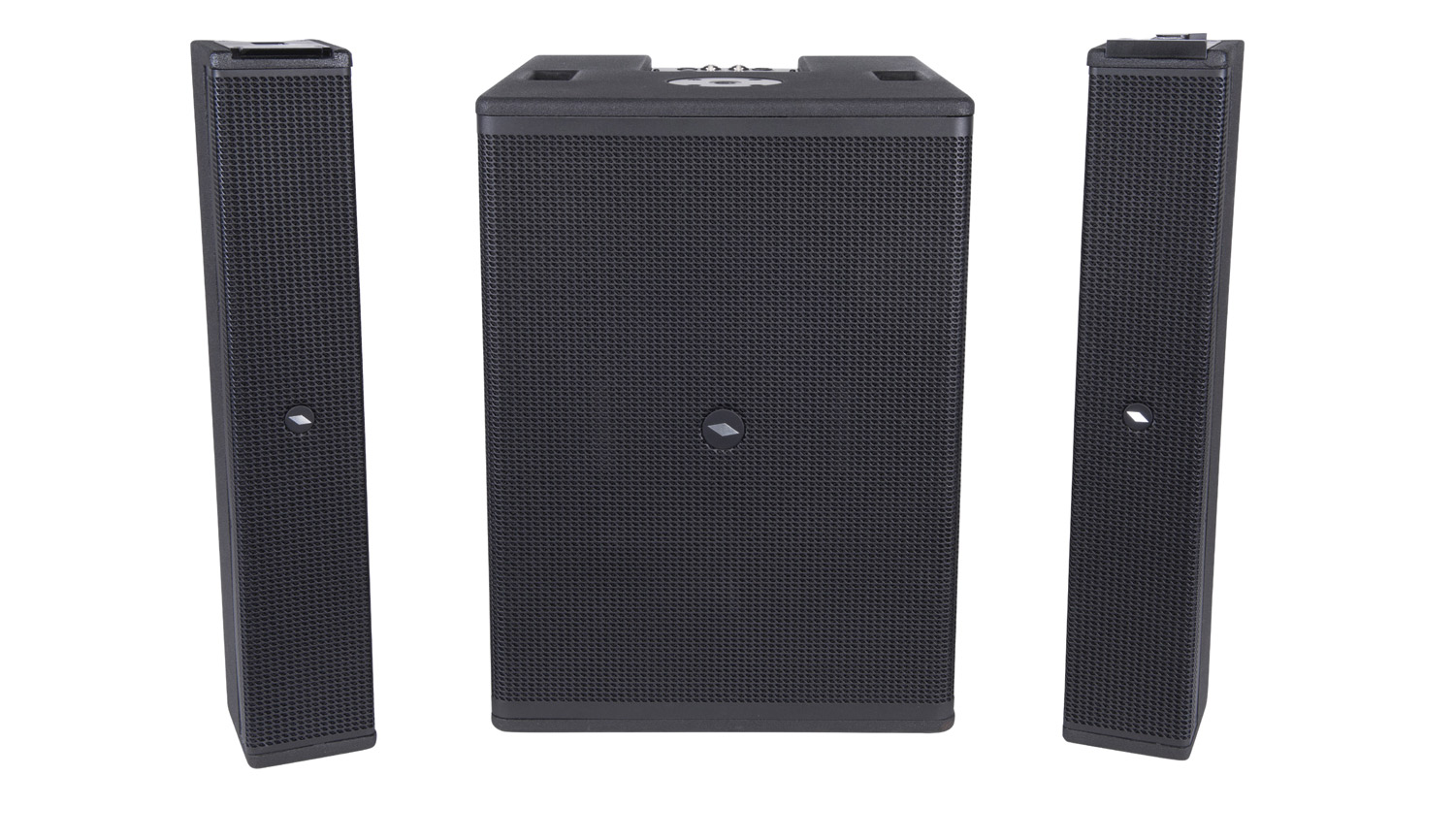

SESSION6 is a compact high-power portable array system in an active 2.1
configuration, including two tops and one subwoofer. Designed for indoor
and outdoor use in live concerts, mobile DJ setups and corporate applications,
the SESSION6 combines flexibility, portability and performance with a professional
design and a sturdy plywood construction.
Each top includes six 3.5 neodymium drivers in vertical array configuration
with progressive down tilt, for increasing the vertical coverage. A custom-designed
phase plug provides an ultra-wide 120° horizontal coverage and guarantees perfect
voice intelligibility and accurate sound in any part of the listening area. The sub
features two 10 high-excursion woofers with 2.5 voice coil, able to provide very
punchy and dynamic basses, together with an extended low frequency response and an
impressive SPL.
The system is powered by a 3-channel 2400W Class D amplifier and its controlled by
the powerful PROEL CORE LT DSP, able to deliver an outstanding sound definition. The
signal processing includes a sophisticated Dynamic EQ and 4 EQ PRESETS
(MUSIC, LIVE, DJ, SPEECH) to adapt the speakers to any kind of application. The
intuitive control interface features a single knob and a large LCD display, for controlling
not only the DSP parameters but also the two MIC/LINE selectable inputs, the systems
configuration and the built-in BLUETOOTH audio interface.

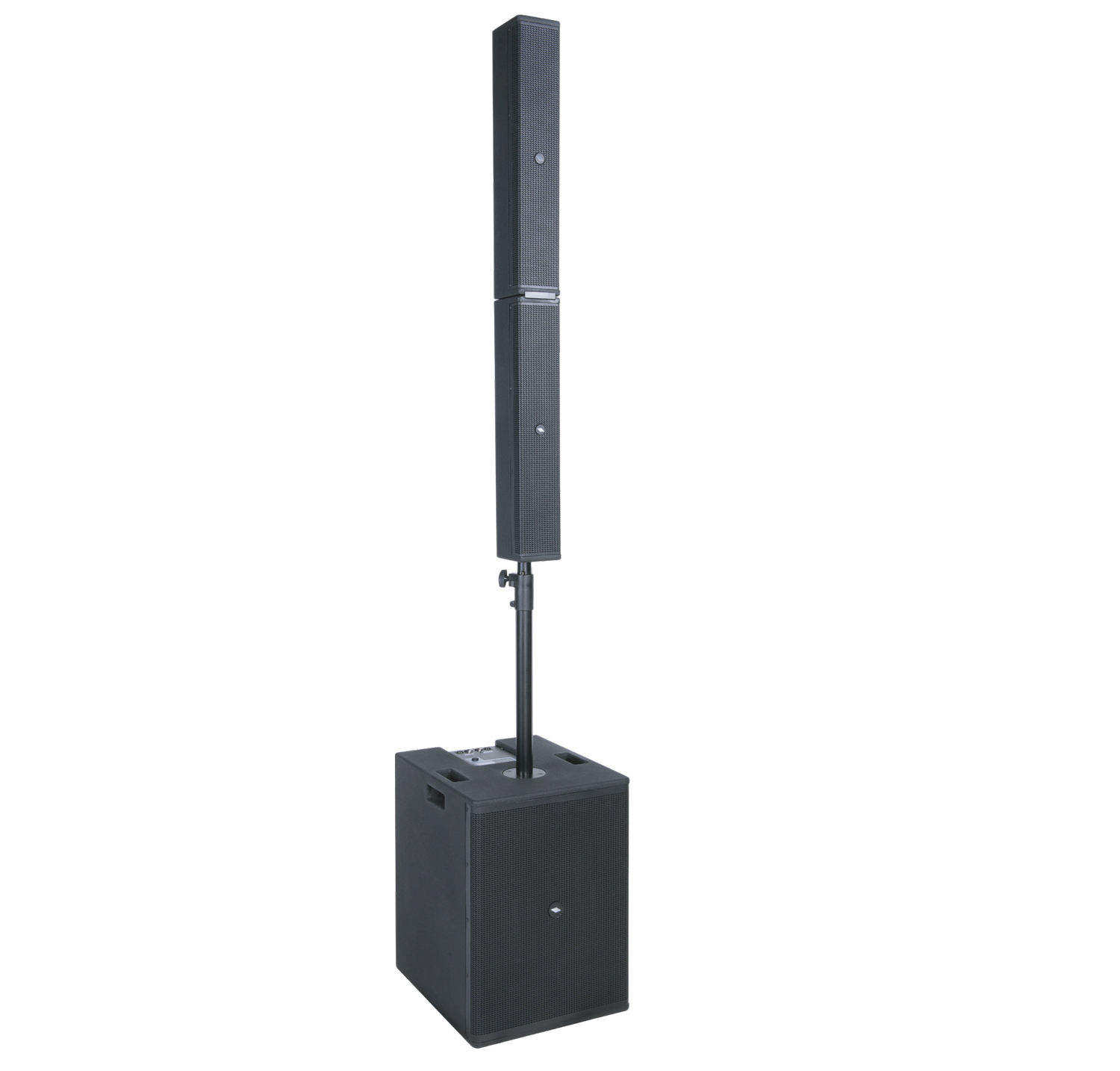

Thanks to the innovative die-cast fast linking system with integrated connections, the two
tops can be combined together, forming a longer 12-driver column and allowing the system to
be used not only in STEREO mode, but also in MONO or DOUBLE mode, for an extreme flexibility.
A dedicated padded bag is included for storing and transporting the two columns and the
provided pole and speaker cable, for the maximum portability.
- 2.1 processed active system with two TOPS and one SUBWOOFER
- TOP
- Six 2.5 neodymium full-range speakers in Vertical Array configuration
- Progressive down tilt for an increased vertical coverage
- Custom designed phase plug for ultra-wide 120° horizontal coverage
- Fast-coupling of the two tops with integrated power signal link to obtain
a single 12-speaker column

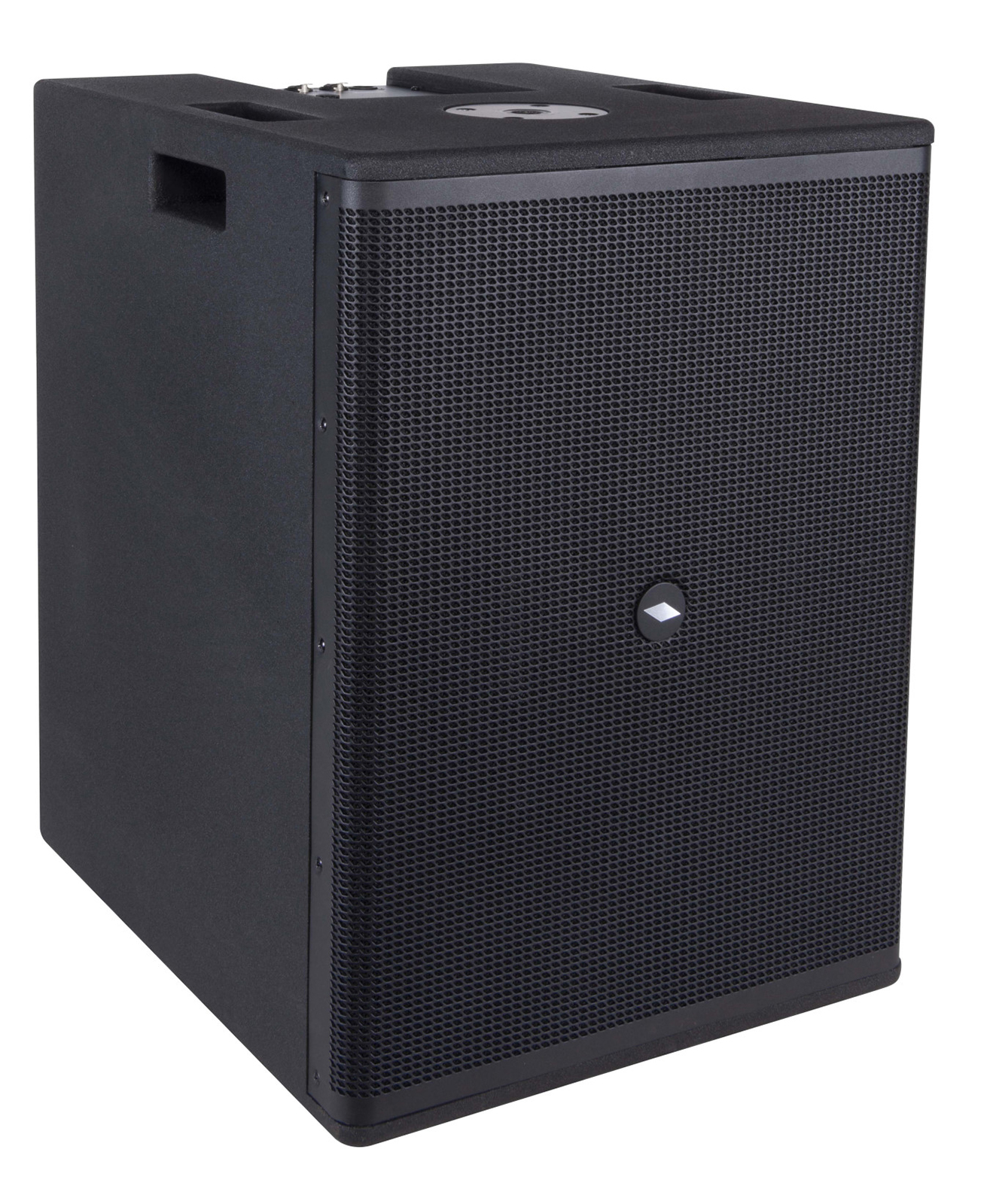

- SUB
- Two high-excursion 10 woofers with 2.5 voice coil
- SYSTEM
- Plywood cabinet with black ultra-durable polyurethane paint
- 3-channel Class D SMPS power amplifier, 2400W total peak power
-Two MIC/LINE (XLR-F) inputs
- Control & connection panel on the cabinets top for an easy access
- High-definition CORE LT DSP with A/D and D/A 24 bit converters and Dynamic EQ
- User-friendly control interface with single knob and large LCD
- 4 DSP presets (MUSIC, LIVE, DJ, SPEECH)
- 3 selectable systems configurations: STEREO, MONO and DOUBLE
- Bluetooth stereo interface
- SPL MAX (system): 128 dB peak
- Frequency response: 38 Hz - 20 kHz
System
System Type Portable Powered 2.1 System with Two Line Array Tops and One Subwoofer
Maximum SPL Output 128 dB peak system output (pink noise)
Frequency Response (-10dB) 38Hz 20kHz
Speakers
LF Driver 2 x 10" (254mm) woofer
HF Driver 12 x 3.25" (82mm) neodymium drivers (6 for each TOP)
Coverage Pattern 120° x 60°
Amplifier
Type Class D with SMPS
System Power Rating 600 Watts LF, 2x300 Watts HF Continuous, 2400W Peak
Channels 2 MIC/LINE selectable inputs
Connectors 2 x COMBO (INPUTS), 2 x XLR-M (LINK), 2 x SPEAKON (POWER OUTPUTS)
Controls 1 x LCD with Data Encoder
Processing 24bit / 48KHz CORE DSP, 2-band EQ Selectable CONFIGURATION and
EQ PRESETS, Digital Limiting
Wireless Audio Bluetooth built-in receiver
General Specifications
Cabinet Material Plywood
Finishing High-strenght polyurethane black paint
Grille Powder coated perforated steel
Handles 2 x sides (SUB)
Pole Socket 1 x top M20 (SUB), 1 x bottom 35mm (TOP)
Included Accessories M20 / 35mm telescopic pole, 4-wire SPEAKON/SPEAKON cable, PADDED BAG for SAT
AC input 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D) TOP: 112x616x132 mm, SUB: 420x580x490 mm
Weight TOP: 4.5 kg (9.9 lbs), SUB: 26.5 kg (58.4 lbs)
