PROEL S12A SUB

Active sub-woofer

PROEL introduces the S Series, a new range of compact and powerful sub-woofers
designed to complement PROEL full-range passive or active speakers.
The variety of size, power and SPL offered by the four S models provides,
at an unbeatable price point, the perfect low extension solution for any
speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass
configuration (HBP). This innovative design provides a higher efficiency
compared to direct radiation sub-woofers and, in addition, guarantees
a much better coupling of the tuning ducts with the external air, reducing
the distortion and the air turbulence, for a more defined sound and deep
and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can
generate a massive amount of continuous power in a compact, lightweight and
reliable package. All the modules include a STEREO pre-amp section, 24dB/oct.
crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable
polyurethane paint. They feature two flush handles and four sturdy 75mm wheels
for an easy transport (S15 and S18 only).
S10, S15 and S18 are also available in passive version.

Compact active HBP sub-woofer
12 woofer with 2.5 VC for a deep and extended response
1200 W peak power
STEREO input, link and output
SPL MAX 128 dB
Frequency response 43 Hz - 160 Hz


System type			Hybrid Band Pass subwoofer
Loudspeaker			12" woofer with 3" VC
Amplifier Continuous Power	600 W
Frequency Response		43 Hz - 160 Hz
Max SPL				127dB

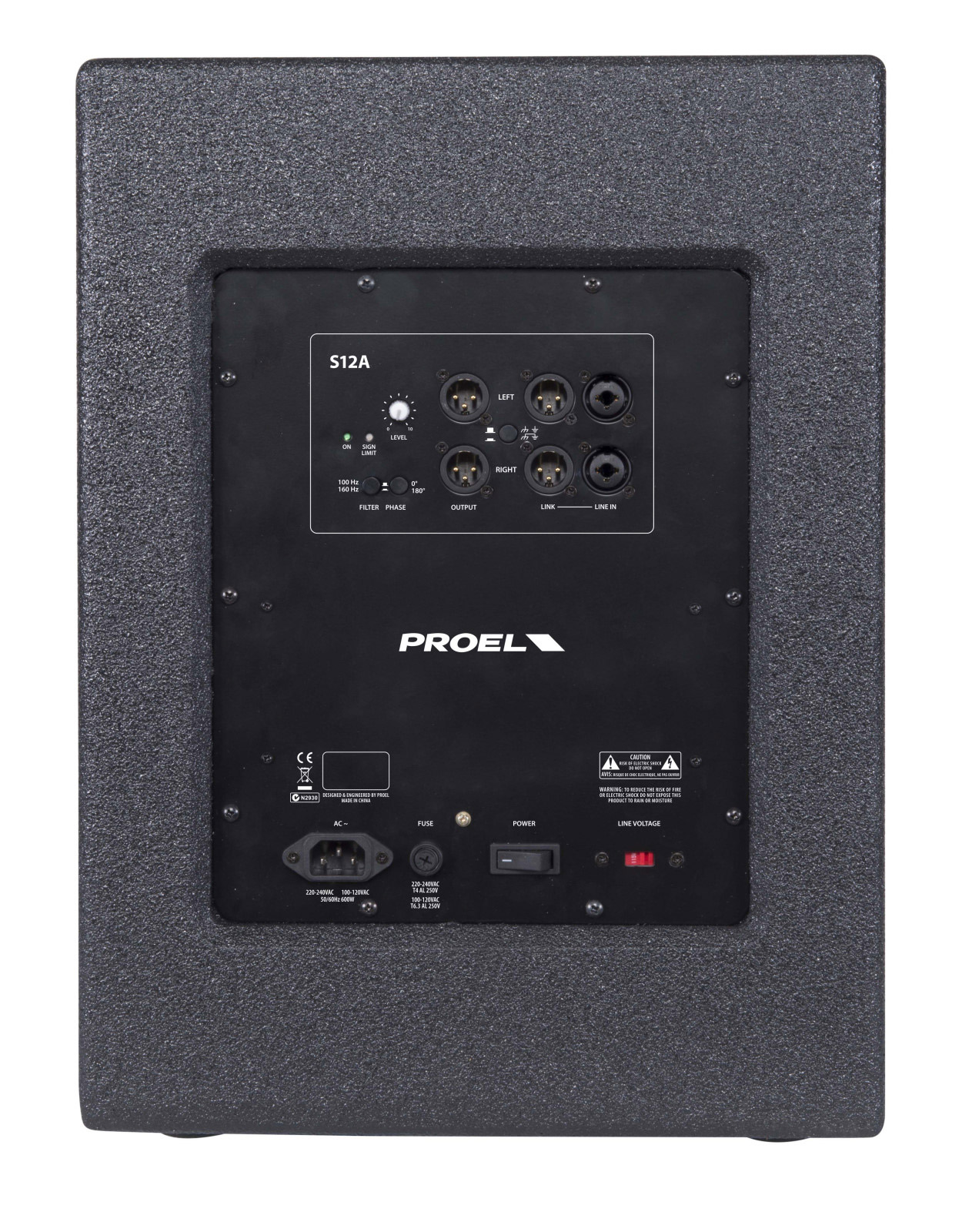

Connectors			IN: 2 x NEUTRIK COMBO
				OUT: 2 x NEUTRIK XLR-M
				LINK: 2 x NEUTRIK XLR-M
Controls			Volume, GND lift
				X-over Frequency, Phase
Power Supply			230 VAC or 120 VAC 50/60 Hz
Weight				19 kg (41.9 lb)
Cabinet				15/18 mm plywood
				Black anti-scratch paint
				1.5 mm metal grille
				2 handles
				1 x pole socket
Dimensions 			(W x H x D)	360x500x520 mm
