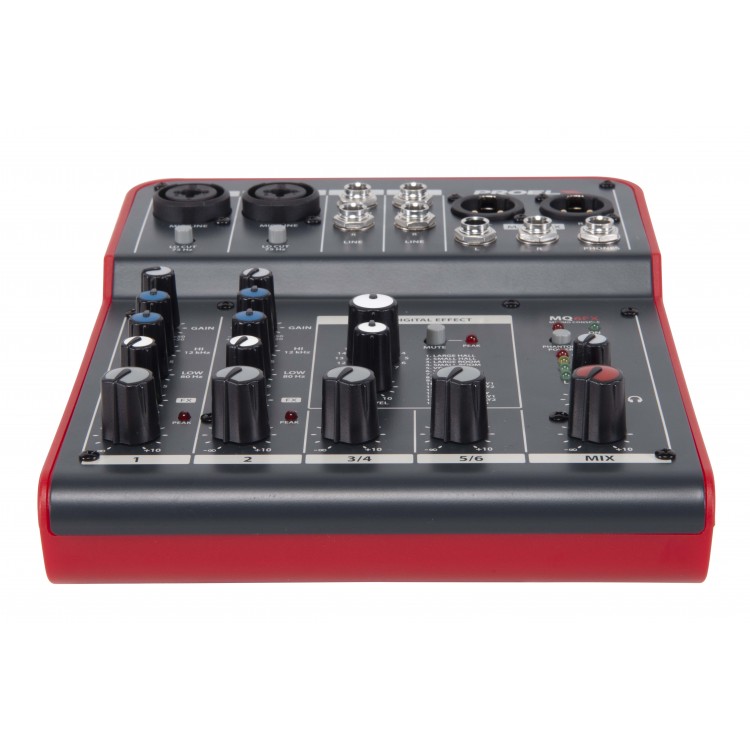

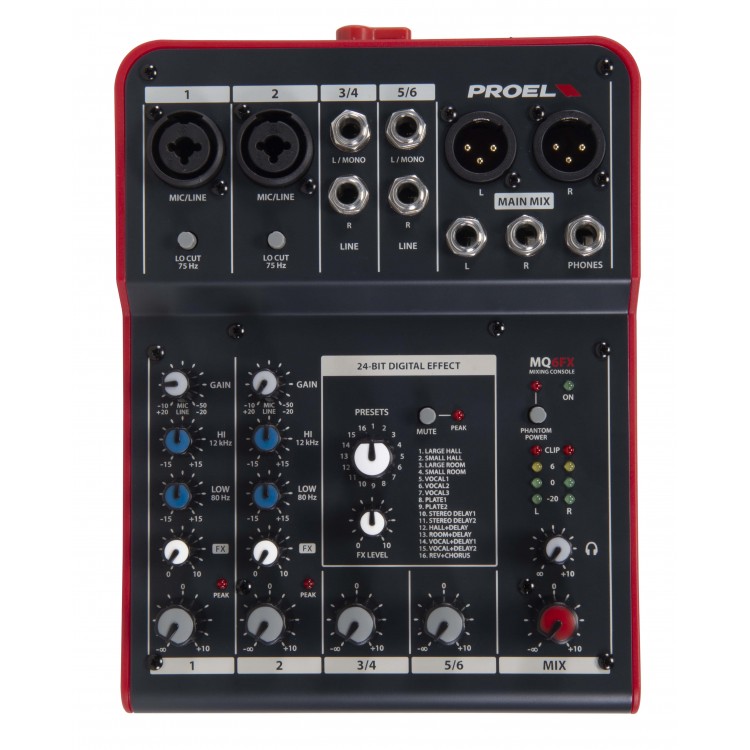

PROEL MIX MQ6FX

Liten mixer for trubadur, karaoke etc

Proel MQ6FX er en enkel og rimelig mixer med god lyd og mange muligheter
-	2 mono-kanaler med XLR/jack-innganger (kombi) med 2-bands eq, low-cut og FX-kontroll
-	2 aux-kanaler med volumkontroll
-	24 bit digital FX-enhet
-	Phantom power
-	Mastervolum med 2 stk 4-led vu-meter
-	Ballanserte Main Mix utganger med XLR og Jack
-	Hodetelefonutgang med volumkontroll



MONO INPUT CHANNEL
Mic Input	sensitivity	from -10 to -50 dB	Balanced XLR-F
 		impedance	2 Kohm
Line Input	sensitivity	from +20 to -20 dB	Balanced JACK
 		impedance	10 Kohm
Lo cut	 	75Hz, 18dB/oct.
EQ		HIGH (shelving)	±15 dB @ 12KHz
 		LOW (shelving)	±15 dB @ 80Hz

STEREO INPUT CHANNEL
Line Input	sensitivity	-10 dB			Balanced JACK
 		impedance	10 Kohm

MASTER SECTION
MAIN MIX	nom. out level	 +4 dBu			Balanced JACK and XLR-M
HEADPHONES	min. impedance	32 ohm
 		max. out level	(2x) 193 mW		Stereo JACK

DIGITAL EFFECT PROCESSOR
Effects	 			16 presets
A/D and D/A converters	 	24 bit
DSP resolution	 		24 bit
Controls	 		ROTARY SELECTOR, PEAK LED, MUTE switch

GENERAL SPECIFICATIONS
Maximum level	all outputs	+22 dBu
Crosstalk	meas. at 1 KHz	> 82 dBu
HUM & Noise	unweighted	< -93 dBu
THD + Noise	at +4dB, 1kHz	< 0,008 %
Dimensions (WxHxD)	 	162 x 210 x 51 mm
Weight	 			1,00 kg
POWER REQUIREMENTS
Supply	 			18 VAC 1000 mA - use only supplied AC/AC ADAPTER
Mains Supply Voltage	 	110-120 VAC (±10%) 50 / 60 Hz (US plug)
 				230-240 VAC (±10%) 50 / 60 Hz (EU plug)
 				240 VAC (±10%) 50 / 60 Hz (UK plug)

Consumption	 		34 W
