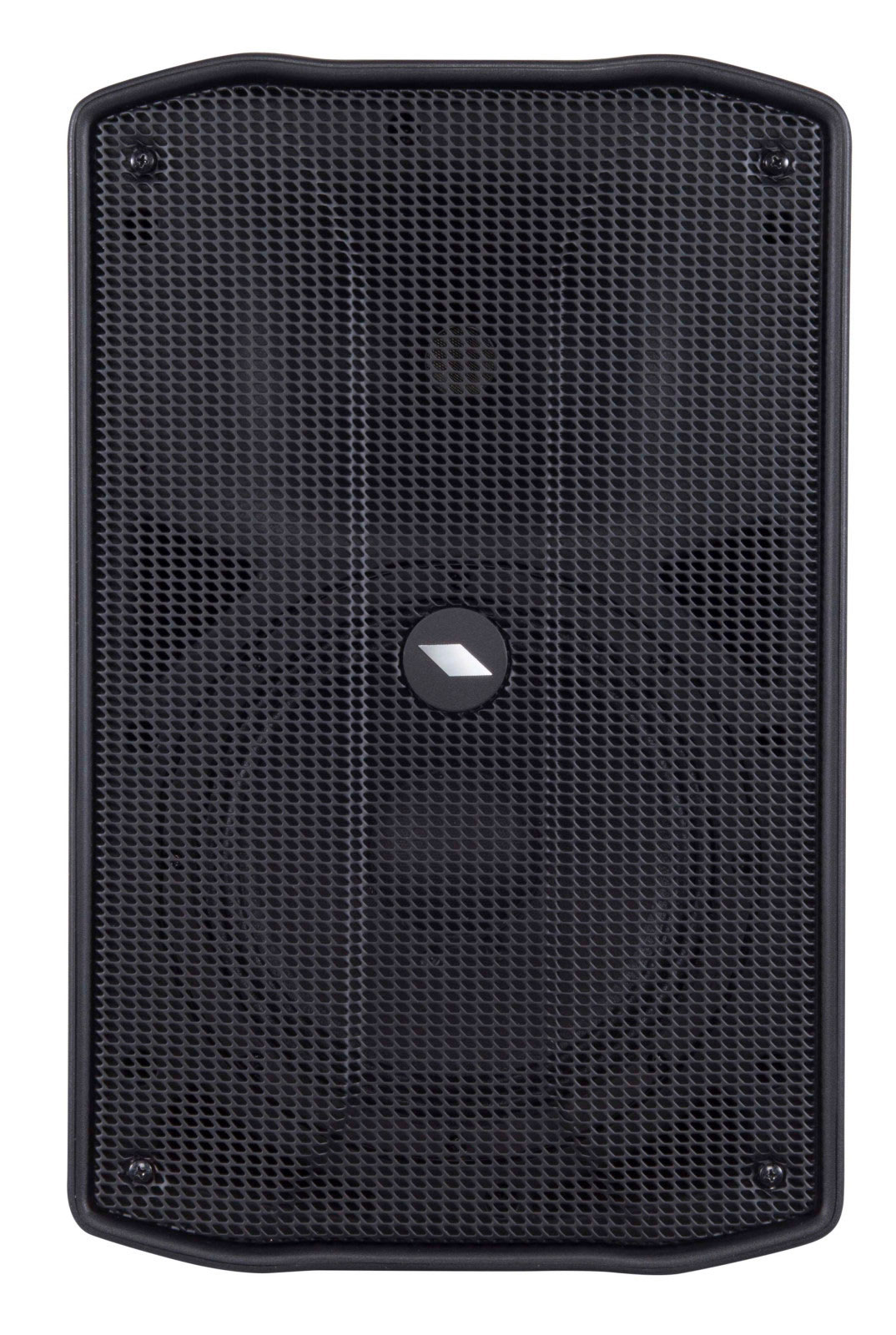

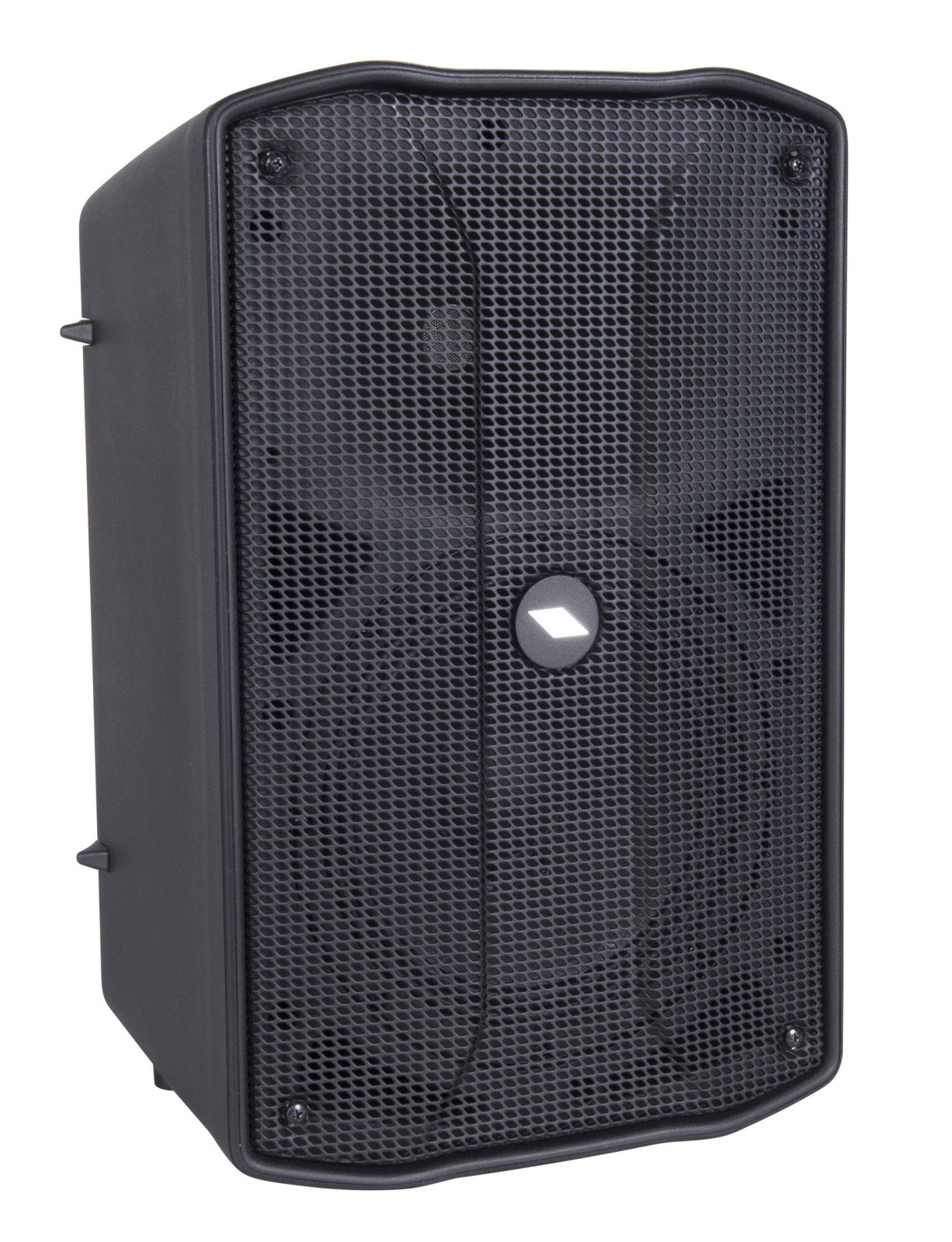

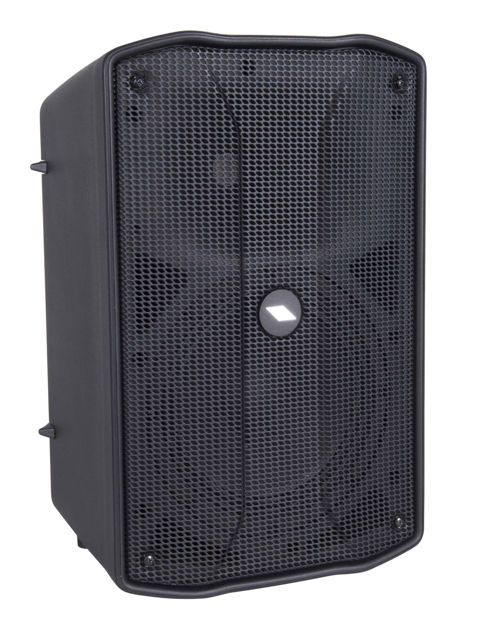

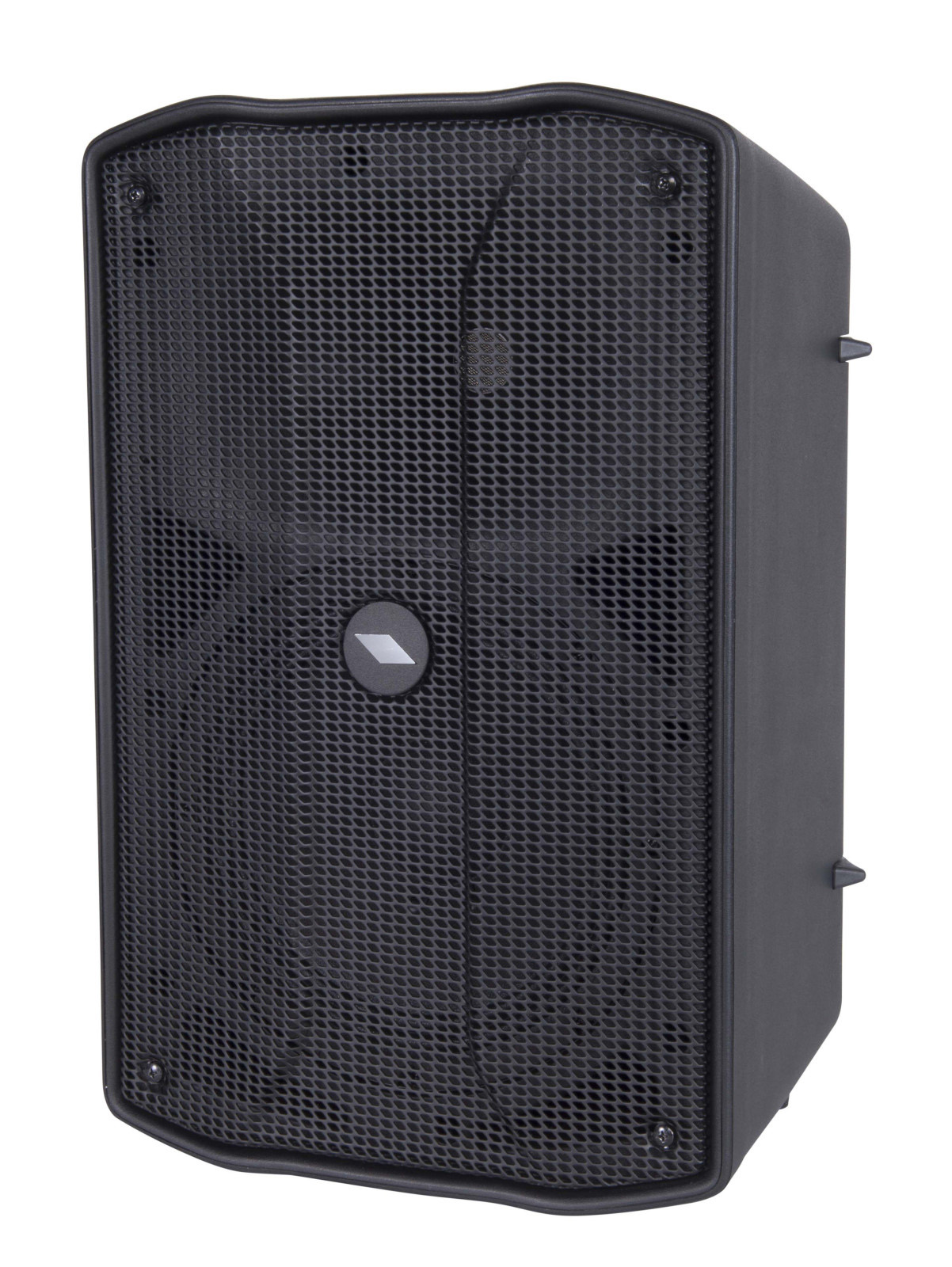

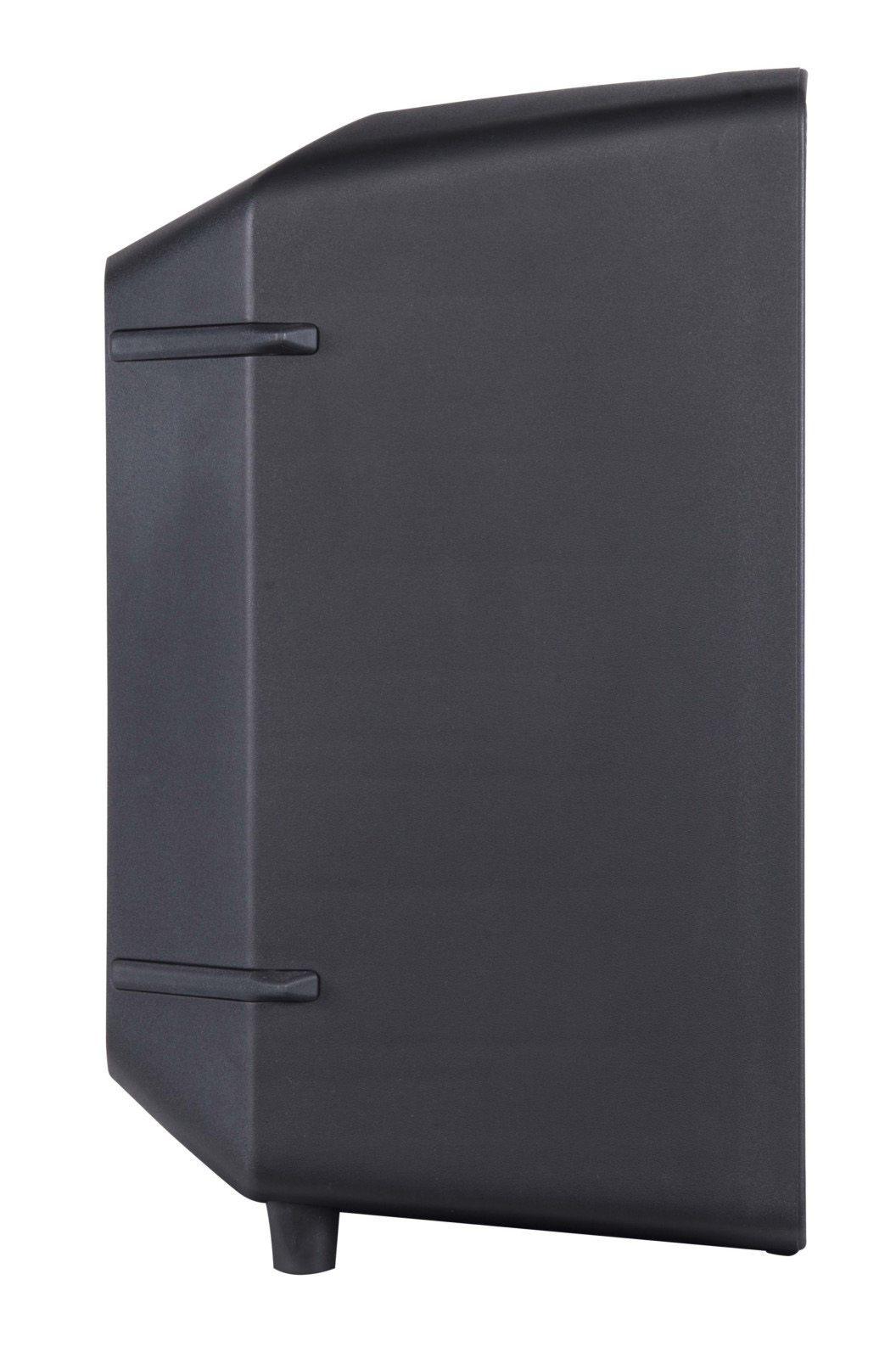

PROEL FLASH8XD

FLASH XD are powered by newly designed amplifier modules able to provide up to
1000W or 600W ofclean and undistorted power. The high-efficiency Class D output
stages, combined with light-weight and compact Switch Mode Power Supply, give
FLASH XD a massive punch and a consistent reserve of power.The built-in 2-channel
mixer with independent LINE and MIC inputs can turn any FLASH XD system into aninstant
PA system.
The use of carefully selected and customized speakers, including high-definition
compression drivers and
long-excursion woofers, provide an accurate acoustic response and an amazing sound
pressure level with very low distortion.
FLASH XD are controlled by the powerful PROEL CORE LT DSP, featuring high-performance
signal processing and high-definition 24bit converters, capable to deliver an outstanding
sound definition and a dynamic performance typical of top-end systems. The CORE DSP signal
processing includes a sophisticated Dynamic EQ, able to shape accurately the systems sound
while maintaining a full dynamic range at any level. In addition the CORE LT DSP offers an
extensive dynamic protection to the system, for getting always the maximum undistorted output.
5 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH, MONITOR) can be easily selected to adapt the speakers
to any kind of application.
Common features of FLASH X are compact and lightweight PP cabinets with extended internal ribbing
and symmetrical wedge angle,
constant wide-coverage (90° x 60°) horns for a uniform and coherent sound dispersion, newly-designed
ergonomic aluminum handles
and built-in flying points for the use in fixed installation.


- 2-way loudspeaker system
- 1 high-definition compression driver
- Wide-coverage 90° x 60° constant directivity horn
- 8 long-excursion woofer with 1.5 voice coil
- 600 W peak Class D power amplifier with SMPS
- High/definition CORE LT DSP with Dynamic EQ
- 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
- MIC and LINE inputs with independent level control
- SPL MAX: 122 dB
- Frequency response: 65 Hz - 20 kHz
- Lightweight, compact and ultra-durable PP cabinet
- Ergonomic aluminum handle for effortless transportation

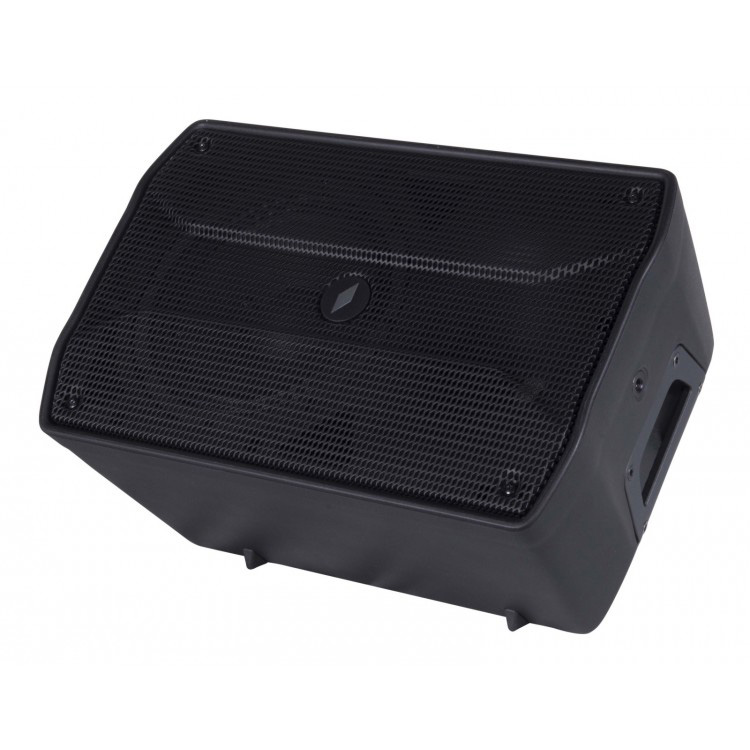

- Slanted symmetrical shape for the use as a stage monitor
- Four M8 flying points




System type			2-way vented enclosure
High Frequency Device		1 compression driver  with 1 voice coil
Low Frequency Device		8 woofer with 1.5 VC
Angular Coverage		90° H x 60° V
Total Peak Power		600 W
HF Amplifier Continuous Power	50 W Class D
LF Amplifier Continuous Power	250 W Class D
Power Supply			SMPS
Processing			CORE LT digital processor
Frequency Response		65 Hz - 20 kHz
Max SPL				122 dB

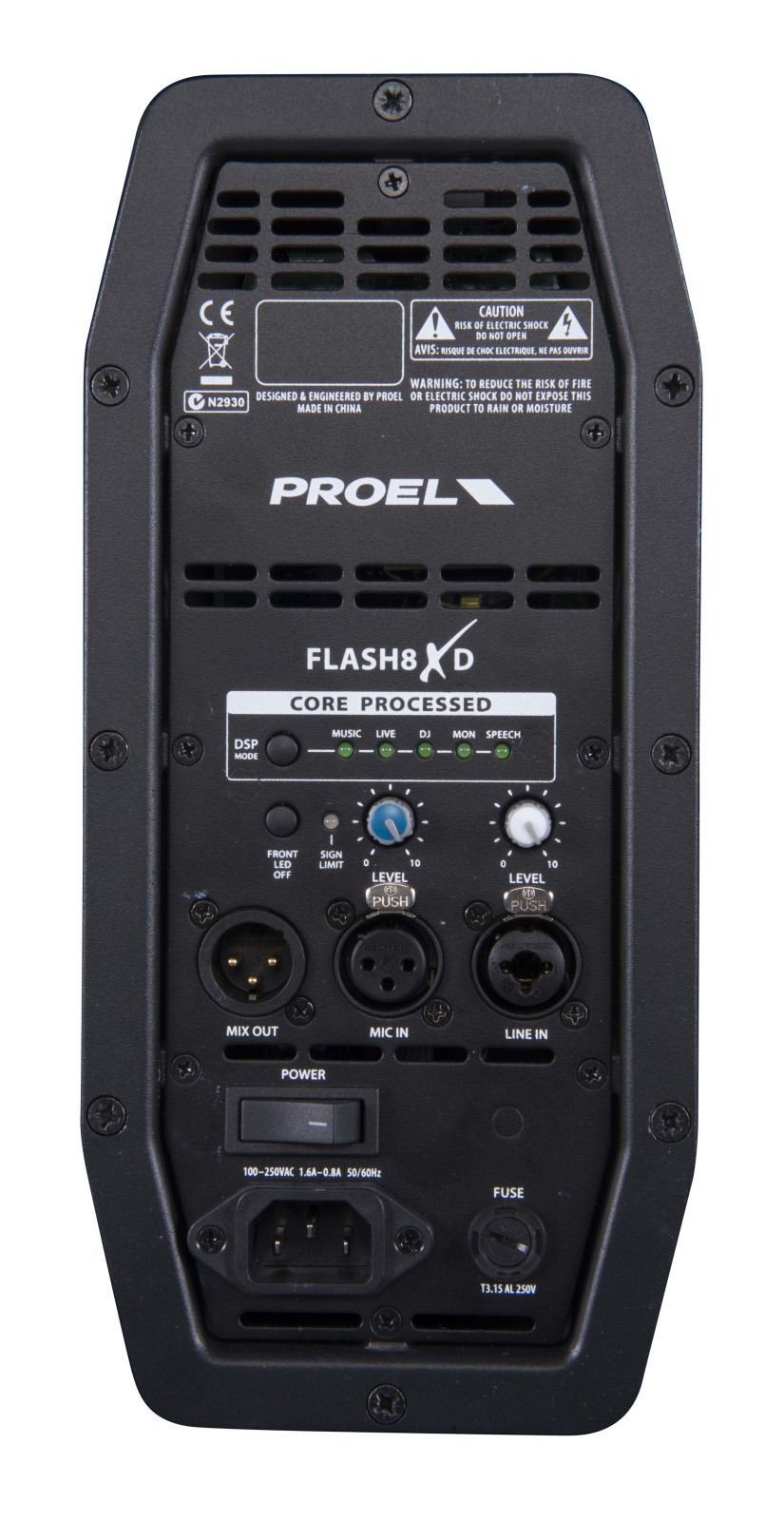

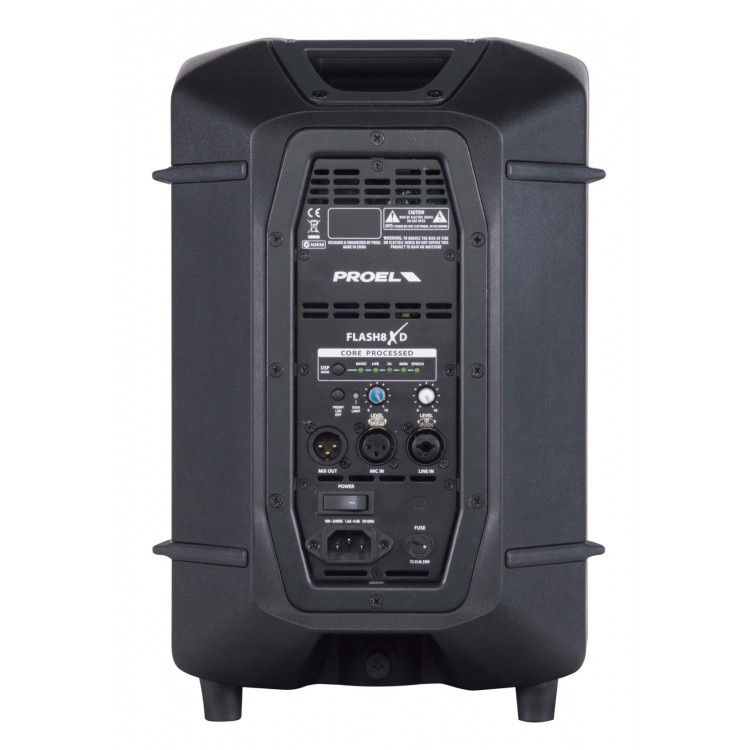

Connectors			IN: Combo, XLR F   MIX OUT: XLR M
Controls			MIC LEVEL, LINE LEVEL, DSP MODE, GND LIFT
Power Supply			100-250 VAC 50/60 Hz
Weight				9.0 kg (19.8 lb)
Floor Monitor Angle		42°
Flying System	4 x M8 - 	top/bottom
Cabinet Material		Polypropylene
Handles				1 x top aluminum
Mounting Pole			1 x bottom
Dimensions 			(W x H x D)	270 x 422 x 250 mm
