Audio creation made easy

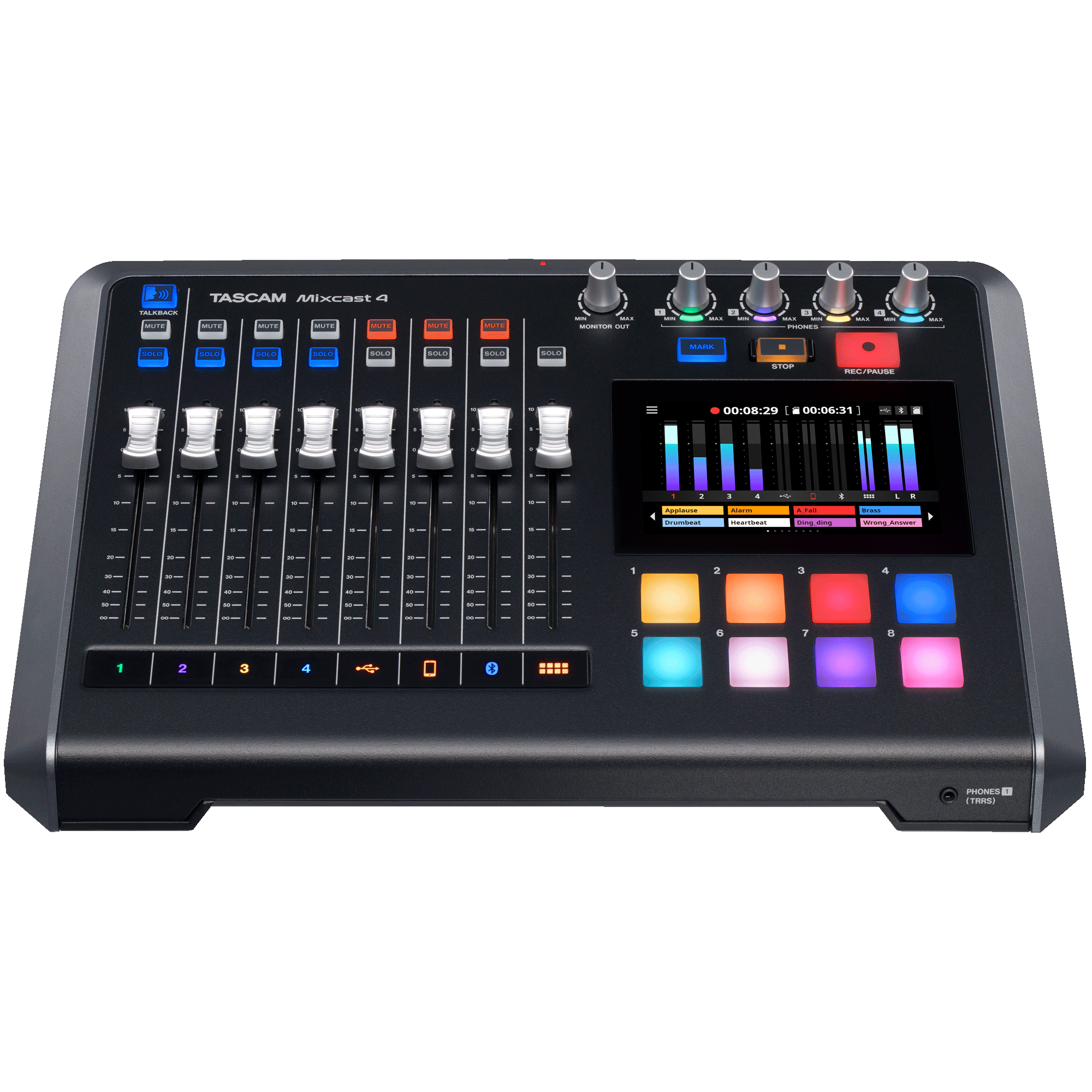

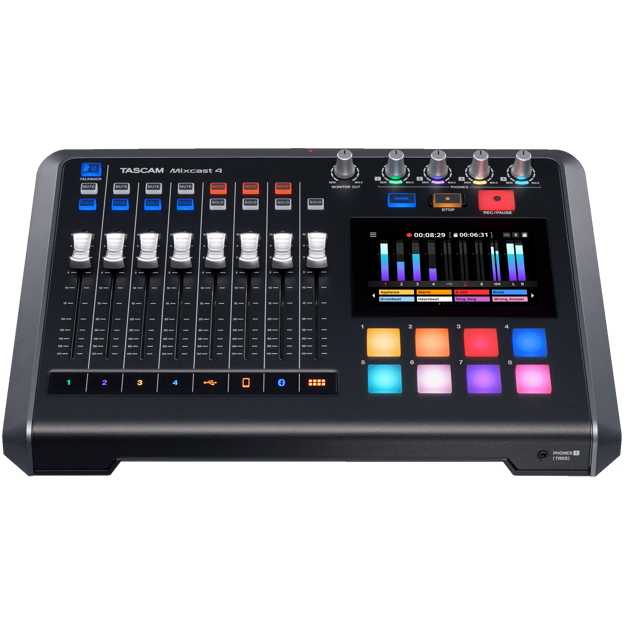

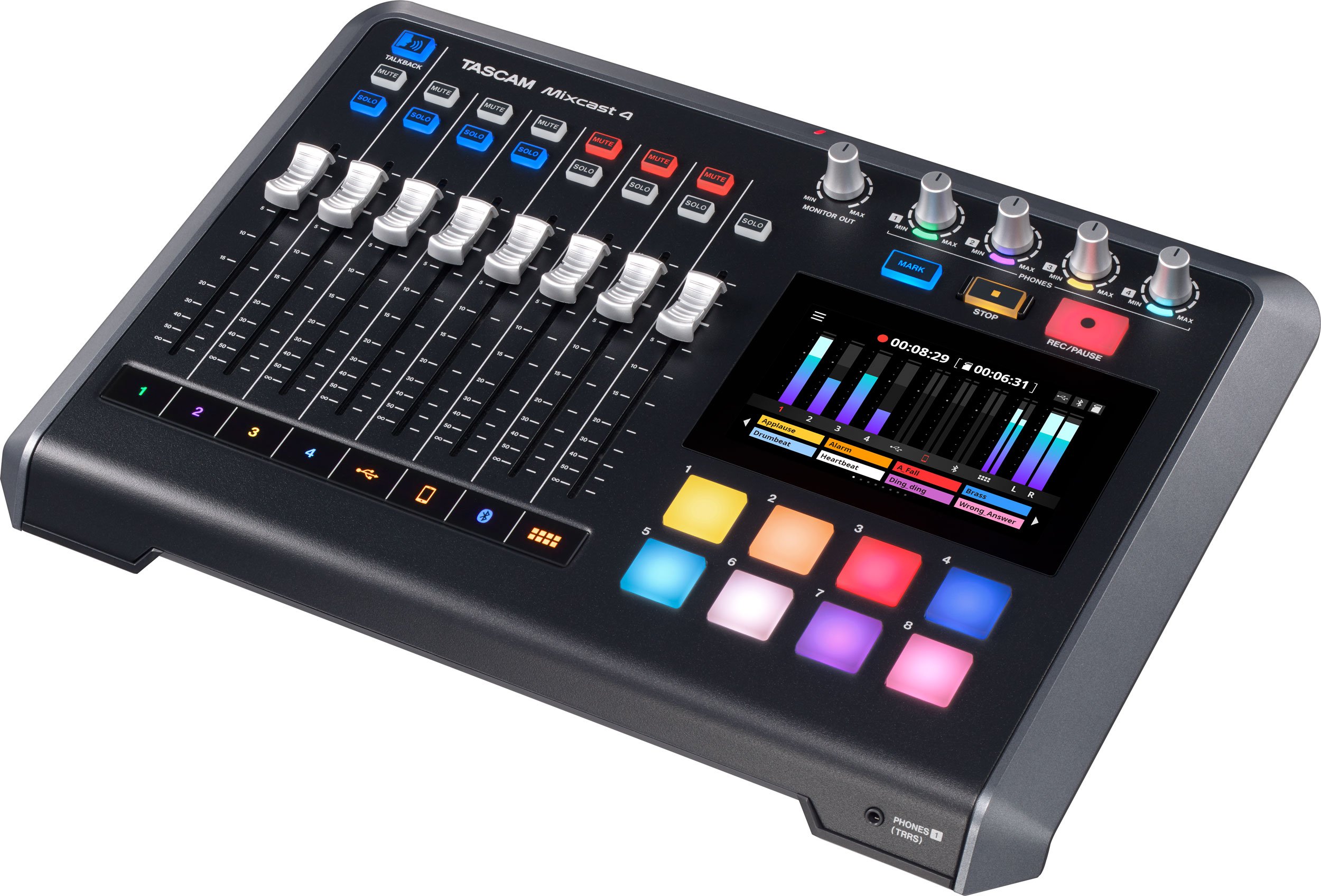

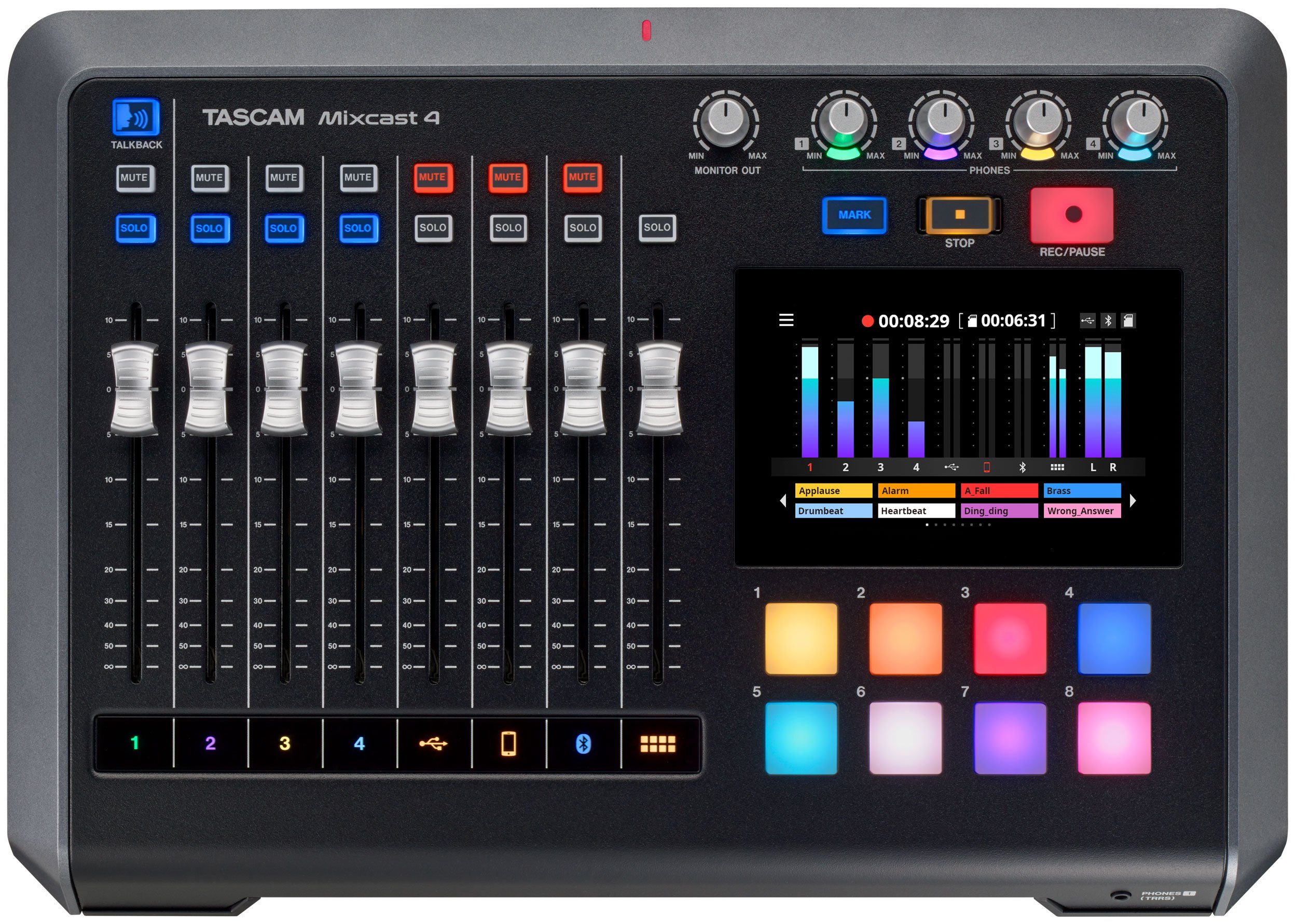

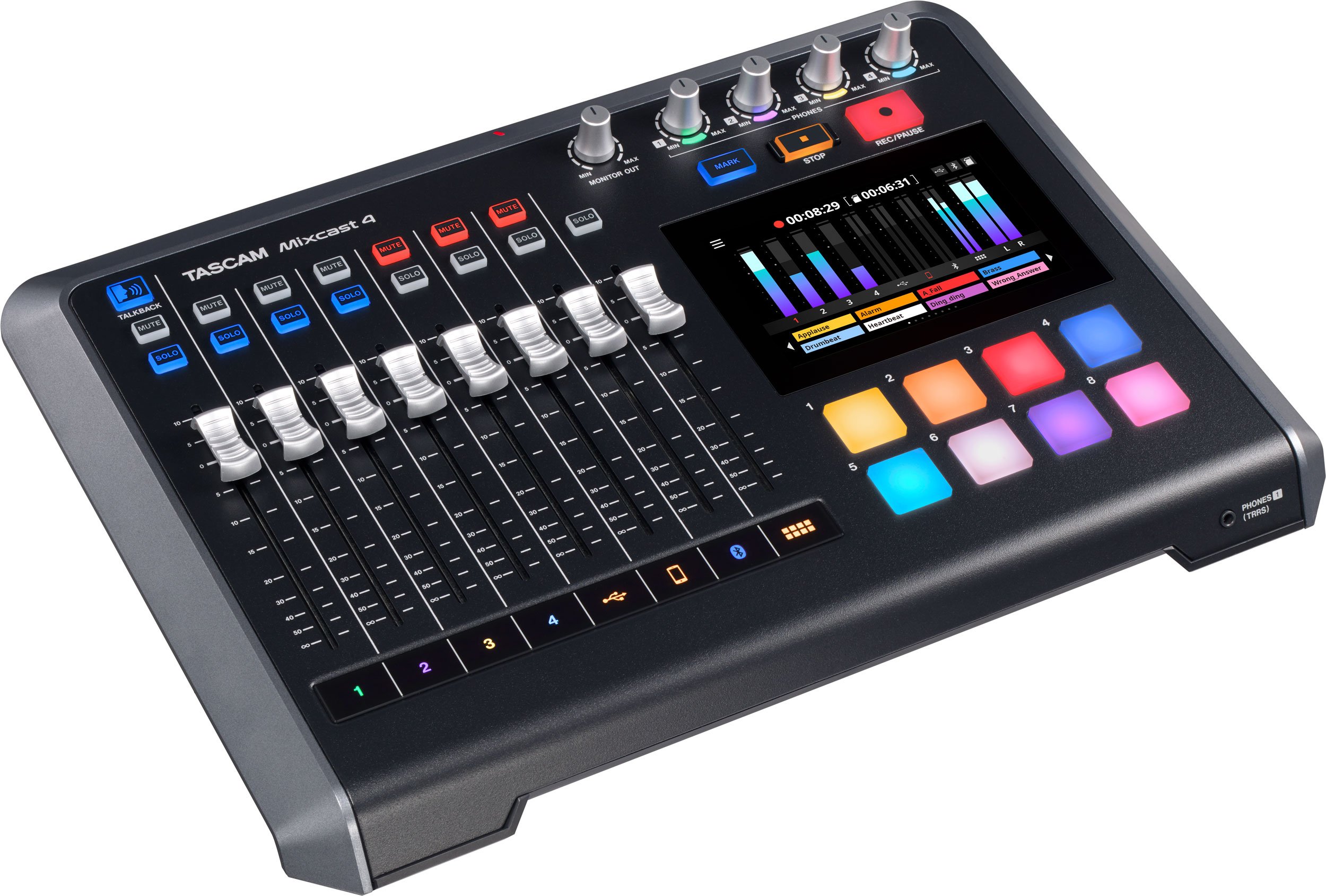

Mixcast 4 makes professional content creation easy. For podcast creation, live streaming, event production or voice over, Mixcast 4 can mix and record mic input with internal background music, effect sounds and jingles via the trigger pads, and external audio input from your phone, PC or Bluetooth device.
Together with the Tascam Podcast Editor software you get a complete package including waveform editing and multi-track recording for all work steps from pre-production to completion.
Stress-free touch panel control
Equipped with four mic inputs and four individual headphones outputs, the Mixcast 4 is always ready for podcast production without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The auto-mixing function, for example, can automatically adjust optimal levels and set mic priority for a perfect mix.
And thanks to the 5-inch colour touch screen, you can intuitively access the well-structured menu and make the desired settings with just a few simple steps.
A complete workstation with all the functions you need
From audio recording to the mixing of recorded audio, the Mixcast 4 offers a complete production environment with multiple convenient functions such as 14-track recording direct to the unit’s SD card, Bluetooth audio input, an Aux input connector to easily mix and record phone conversations (with mix-minus) or other sound sources, and USB connectivity that allows the unit to add sounds from a computer.
You can even use Mixcast 4 as a 14-in/2-out USB audio interface with your favourite DAW software.
Enhance content with real-time sound effects
The Mixcast 4 comes with eight banks of fully customisable, illuminated sound pads which can be triggered during a podcast production or live broadcast. In addition to preset sound effects, users can flexibly assign new sounds, music or even mic sounds that have been pre-recorded on the unit.
The Mixcast 4 sound pads also allow for easy and on-time voice effects such as pitch transformation, reverb and more to make live streams and recordings even more interesting and fun.
Tascam Podcast Editor available for post-editing and control
The Tascam Podcast Editor offers simple and practical editing of audio content, track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads.
There’s no need for expert knowledge on DAW software as Podcast Editor also offers intuitive graphics that will help users record audio easily using the Mixcast 4. Tascam Podcast Editor is designed specifically for Mixcast 4 and is available for both computers and mobile devices.
Features:
- Production of podcasts with up to four people: 4 mic inputs with auto-mix, 4 headphones outputs
- Invite guests and friends: Mix-Minus to include call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
- Sound pads for instant sound triggering and effects
- Easy and intuitive control using a 5-inch touchscreen
- Fully compatible with the dedicated Tascam Podcast Editor software to cover the entire production workflow
- Records up to 14 tracks directly to an SD card (12 channels + stereo mix)
- Built-in USB audio interface with 14 inputs and two outputs
- Nine language options including English, French, German, Italian, Spanish, Russian, Chinese, Japanese and Korean
Hardware:
- Four mic inputs over balanced XLR/TRS combo jacks
- Four headphones outputs with independent volume controls
- Headset input/output via 3.5-mm TRRS mini-jack (mirrors the output of headphones output 1)
- Stereo line input, selectable between dual balanced TRS jacks and a 3.5-mm TRRS jack
- Balanced monitor outputs via dual TRS jacks
- Stereo line output via 3.5-mm stereo mini-jack
- Eight Sound Pad buttons
- Use these to instantly play effect sounds, jingles, background music or other audio material
- Eight sound banks available for up to 64 sounds in total
- Quickly switch between the eight sound banks via the touchscreen
- One bank of sounds included (can be set with Podcast Editor)
- Eight large channel faders to mix the levels of
- four mic signals
- one stereo signal via USB
- one stereo signal from a mobile device
- one stereo signal via Bluetooth
- the Sound Pad sounds
- Mute and Solo buttons on each channel (sound pad channel: Solo only)
- Talkback button for announcements to the podcast participants
- Mark button to set marks for specific events or phases of the podcast during recording
Supported Operating Systems:
Windows
- Windows 10 (May 2021, version 21H1)
Mac
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
iOS
- iOS 14 / iPadOS 14
- iOS 13 / iPadOS 13
Spec description
Recorder specifications
Recording media
SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB)
Recording/playback formats
WAV(BWF)
48 kHz, 24 bit, 2 ch Stereo/14 ch Poly
Max. recordable tracks
14 tracks (12 track + 2 mix)
Analog audio input ratings
MIC INPUT jacks (1-4)
Connectors
XLR/TRS combo jacks
XLR
XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS
6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
+10 dBu (when LEVEL at min.)
Nominal input level
-10 dBu (when LEVEL at min.)
Minimum input level
-76.5 dBu (when LEVEL at max.)
Gain range
66.5 dB
Input impedance
2.1 kΩ
PHONES (TRRS) 1 jack (CTIA standard)
Connector
3.5 mm (1/8") 4-pole mini jack
Maximum input level
+4 dBV (when LEVEL at min.)
Nominal input level
-16 dBV (when LEVEL at min.)
Minimum input level
-82.5 dBV (when LEVEL at max.)
Gain range
66.5 dB
Input impedance
2 kΩ
LINE IN (TRRS) jack (CTIA standard)
Connector
3.5 mm (1/8") 4-pole mini jack
Maximum input level
+8 dBV
Nominal input level
-12 dBV
Input impedance
12 kΩ
LINE IN L/R (balanced) jacks
Connectors
6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
+24 dBu
Nominal input level
+4 dBu
Input impedance
11 kΩ
Analog audio output ratings
PHONES jacks (1-4)
Connectors
6.3mm (1/4") standard stereo jacks
Maximum output
45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)
PHONES (TRRS) 1 jack (CTIA standard)
Connector
3.5 mm (1/8") 4-pole mini jack
PHONES (TRRS) 1 output splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard)
Connector
3.5 mm (1/8") 4-pole mini jack
Maximum output level
-25 dBu
Nominal output level
-45 dBu
Output impedance
100 Ω
MONITOR OUT L/R (balanced) jacks
Connectors
6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level
+20 dBu
Nominal output level
+0 dBu
Output impedance
200 Ω
LINE OUT jack
Connector
3.5mm (1/8") stereo mini jack
Maximum output level
+6 dBv
Nominal output level
-14 dBv
Output impedance
200 Ω
Control input/output
USB port
Connector
USB Type-C
Formats
USB2.0 HIGH SPEED
USB AUDIO CLASS 2.0
USB MASS STORAGE CLASS
Bluetooth®
Output class
2 (about 10m* unobstructed transmission distance)
Supported profile
A2DP
Supported A2DP codecs
SBC, AAC
Supported A2DP content protection
SCMS-T
Recording times (in hours: minutes)
Recording format: 24-bit / 48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards.
Power
Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption
12.5 W (maximum)
Weight
2.55 kg
Operating temperature range
0 - 40°C
Dimensions
374.8(W) × 56.5(H) × 263.6(D) mm (excluding protrusions)
374.8(W) × 71.2(H) × 266.7(D) mm (including protrusions)
Include items
AC adapter (PS-1220E NUT), USB Type-C to Type-C cable, Owner's manual (inc. warranty)
* The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.
Audio Performance
Mic amp EIN (equivalent input noise)
-125 dBu or less (150Ω termination, LEVEL at max.)
Frequency response
Mic input jacks (1-4)
20 Hz - 20 kHz: +0.3 dB / -0.3 dB (JEITA)
S/N ratio
101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
Distortion
0.003%
( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
Crosstalk
95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B.
