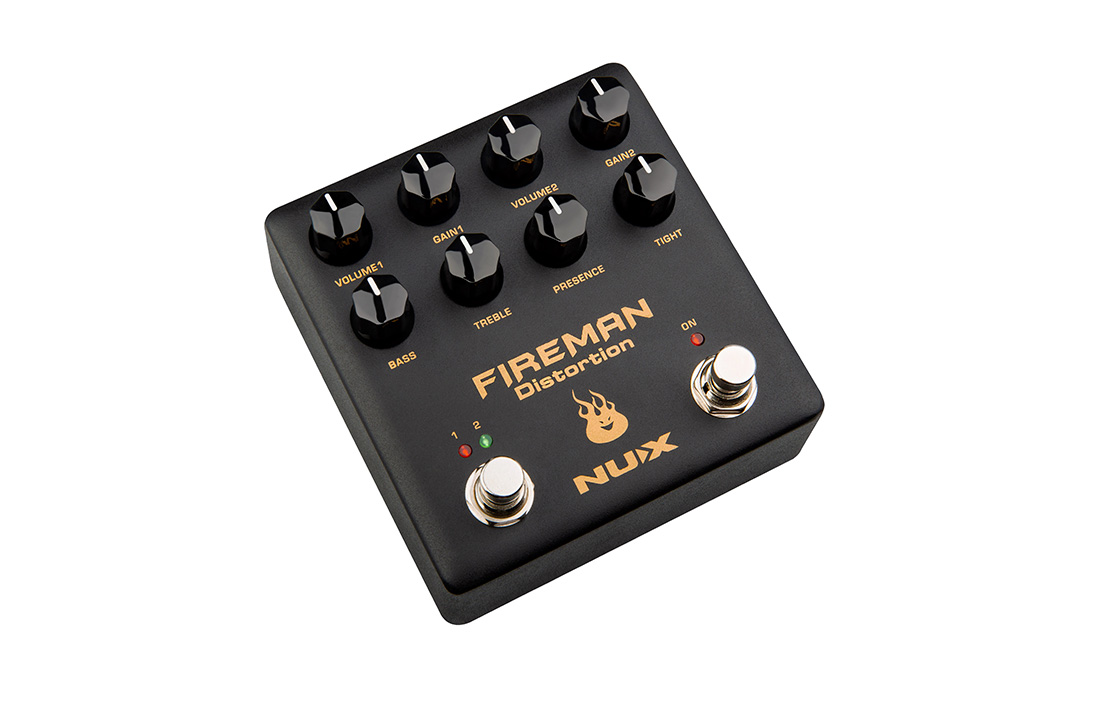

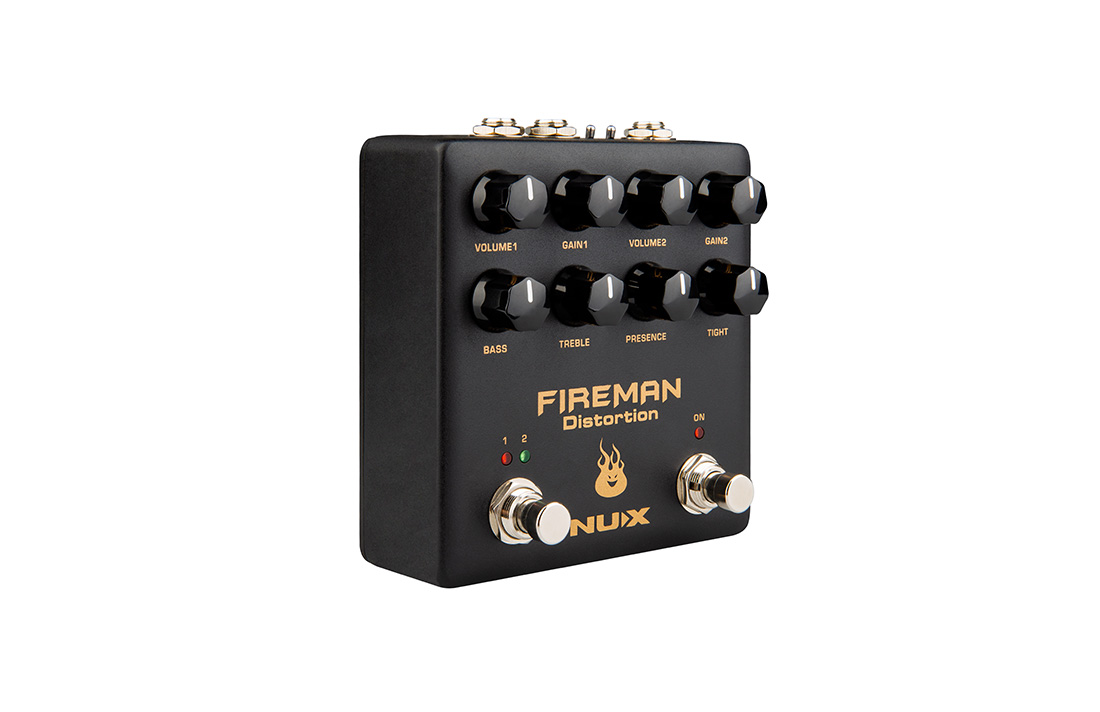

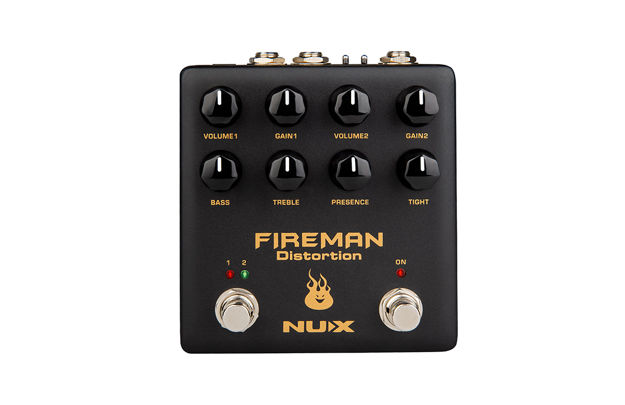

NUX NDS-5 FIREMAN DISTORTION

Fireman Distortion
- Dual Channel Brown Sound in a Box.

FIREMAN is based on the legendary amplifier builder's famous distortion pedal.
It's a very amp-like distortion pedal with Modern Brown Sound. We designed it
with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications.
FIREMAN offers a True-bypass / Buffer-bypass toggle switch,  and a 9V / 18V toggle
switch. The 18V position doubles the working voltage inside to give you
wider dynamic range.

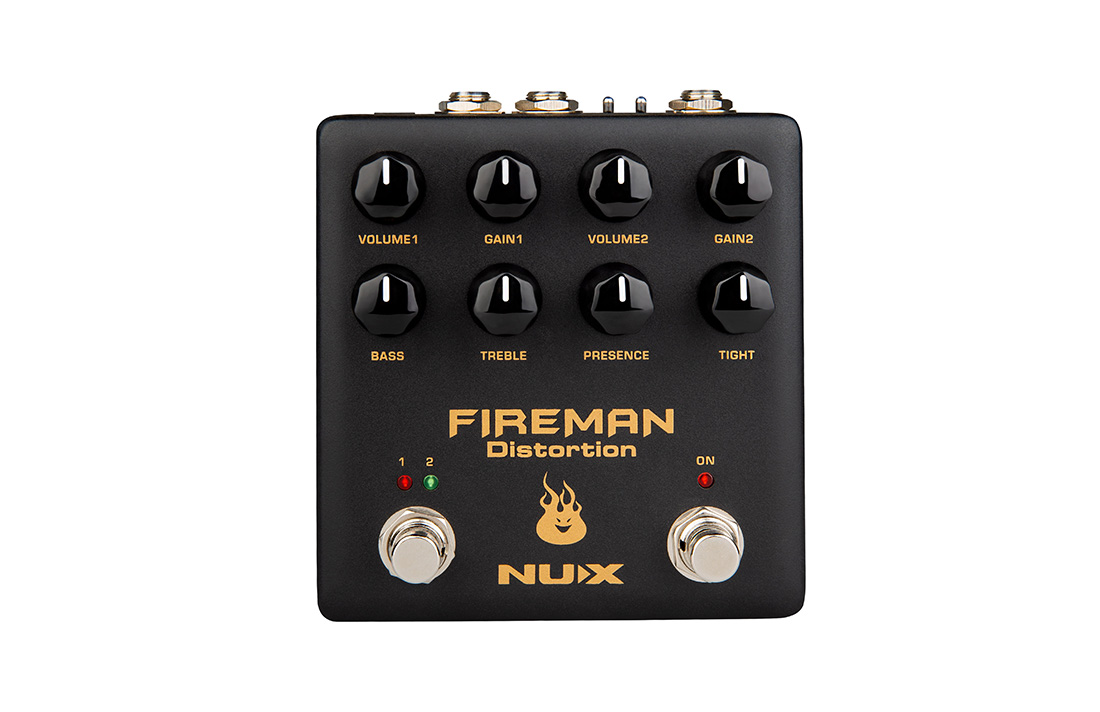

Controls

BASS:	 	Adjusts the low-end response of distortion sound.
TREBLE: 	Adjusts the high-end response of distortion sound.
PRESENCE: 	Adjusts the ultra-high-end frequency of distortion sound.
TIGHT: 		Shapes the low frequency content. ( Turn it down to tighten the sound.)
VOLUME1: 	Adjusts the output level while in Channel1.
GAIN1: 		Adjusts the distortion situation of the sound while in Channel1.
VOLUME2: 	Adjusts the output level while in Channel2.
GAIN2: 		Adjusts the distortion range of the sound while in Channel2.
1/2Foot-switch: Chooses the current Channel for 1 or 2.
ON Foot-switch: Engages or disengages the distortion sound.

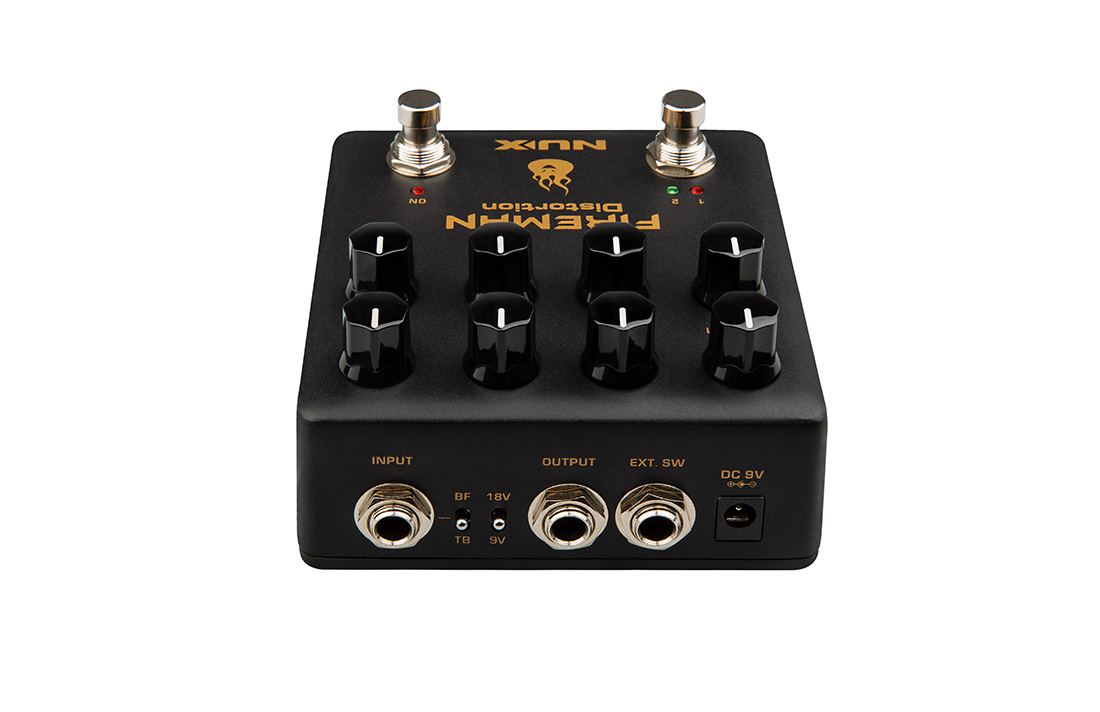

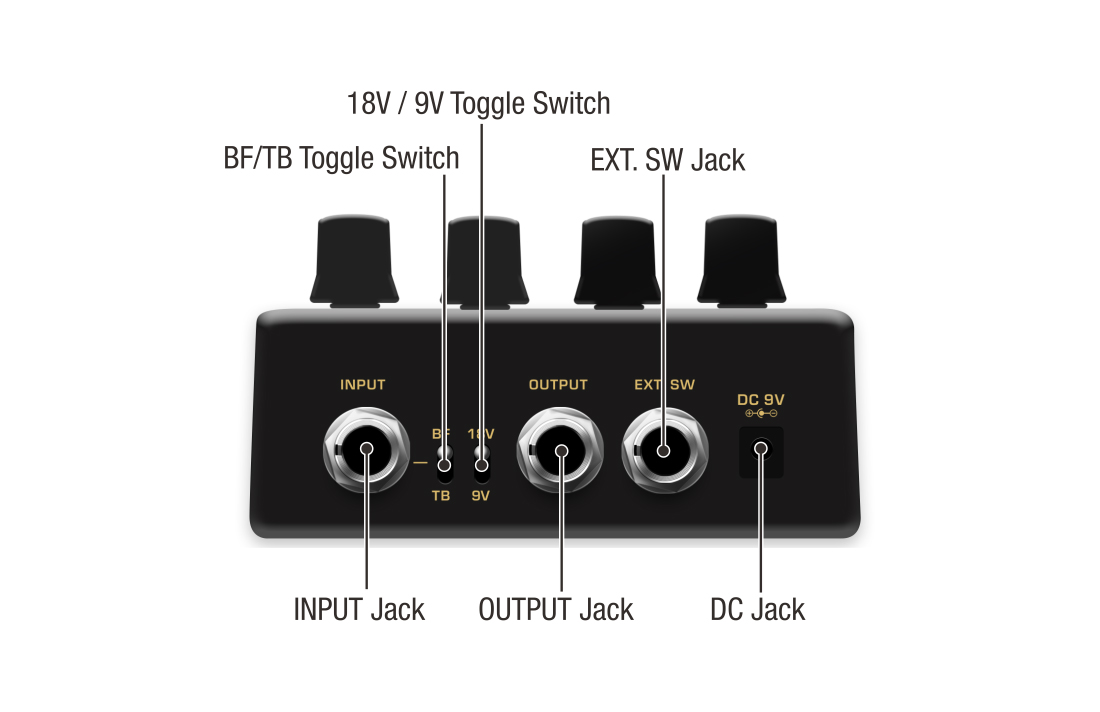

I/O

INPUT: 			Connects with your guitar or the signal from guitar side.
OUTPUT: 		Connects with the amplifier or to the amp side.
EXT. SW: 		Connects with TRS dual foot-switches to replace the 2 foot-switches
			function on the pedal.
BF/TB Toggle Switch:    BF means Buffer-bypass, TB means True-bypass.
18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the
			working voltage inside to get wider dynamic range
DC Jack: 		Connects with 9V Negative Tip power with 100ma adaptor.

Highlights

Modern Brown Sound in a box.
True-bypass / Buffer-bypass toggle switch.
18V / 9V toggle switch to get different dynamic range.
2 independent GAIN, VOLUME knobs for rhythm / solo application.


Specifications
- Frequency Response: 20Hz~20kHz-±1dB
- Input Impedance: 2.2MO
- Output Impedance: 1MO
- Power Supply: 9V DC,Negative Tip(ACD-006A)
- Dimensions: 105(L)×115(W)×58(H)mm
- Weight: 460g
