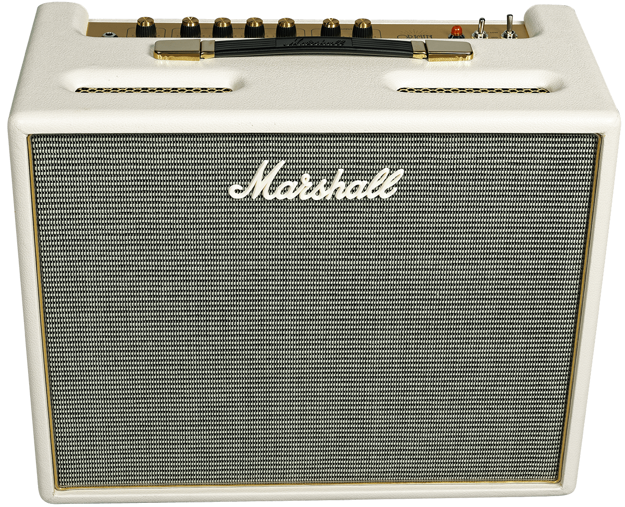

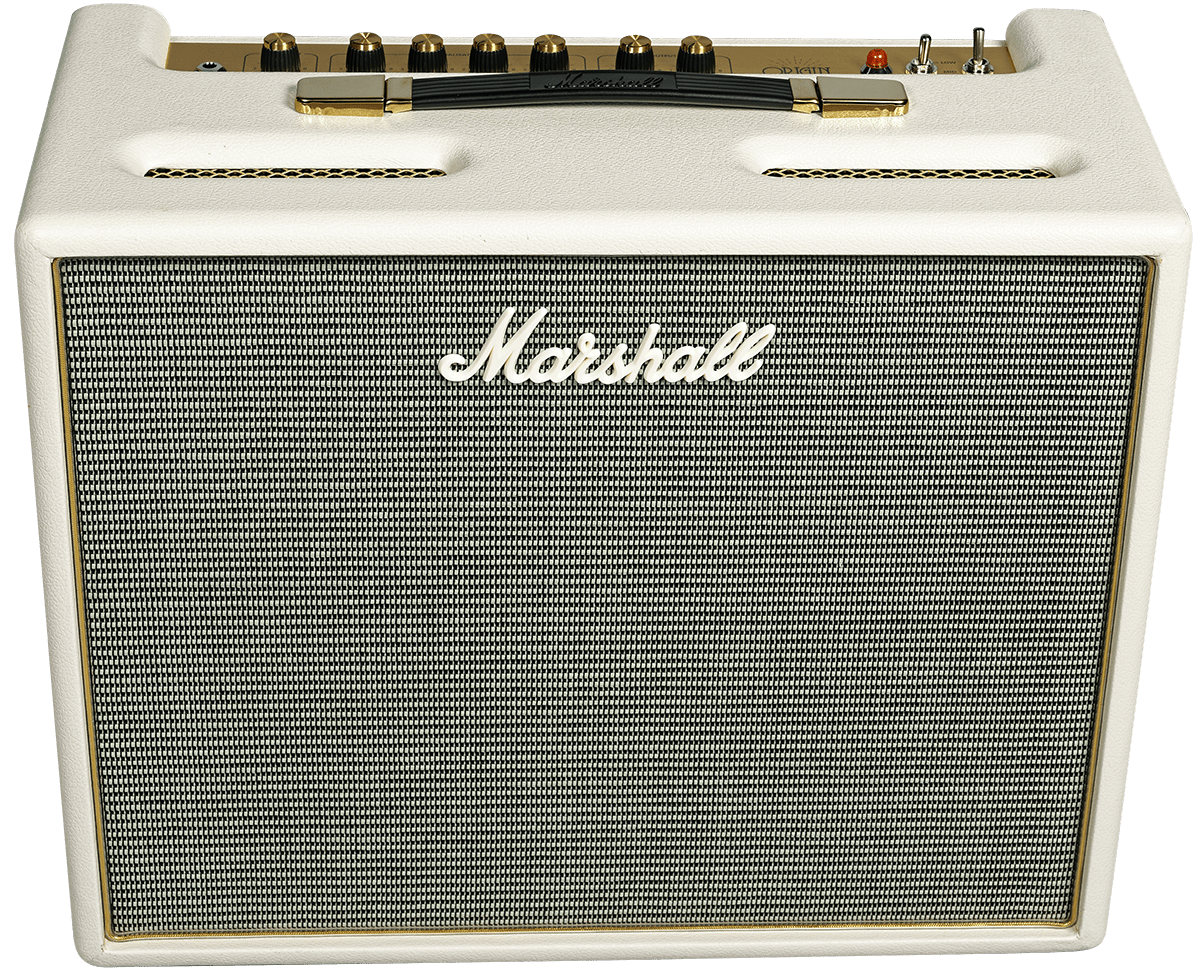

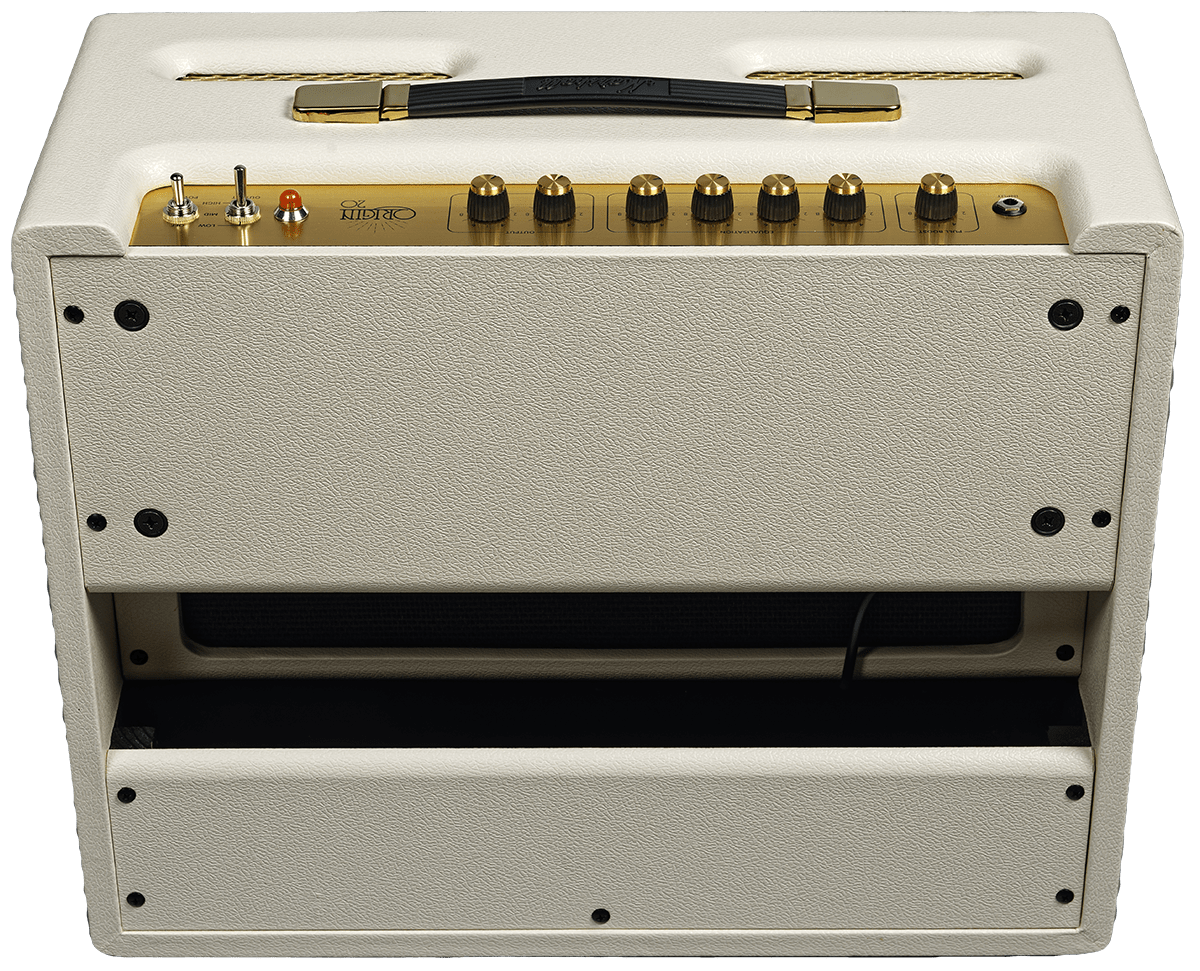

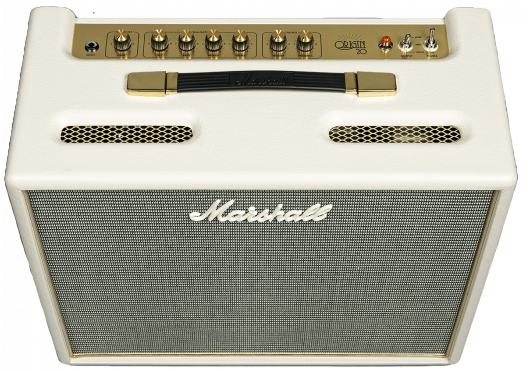

Marshall ORIGIN20CD1

Expression begins with the all valve Origin series. It delivers two inbuilt voices, a new tilt control, PowerstemTM our new power reduction technology and forms the perfect marriage with FX pedals. The classically styled single channel amps generate rich and harmonic tones that are ideal for players to explore new possibilities and craft their sound. There is a 2-way footswitch available with all models so you can control the gain boost and turn the FX loop on and off. The series has something for those playing in the bedroom, at rehearsal or on the stage. This 20W combo is designed for those that like expression through innovation. Using a Celestion V type speaker the Origin20CTM provides a classic all-valve Marshall tone.  A 2-way footswitch allows you to control the gain boost and turn the FX loop on and off. With classic styling and modern features this amp generates rich, harmonic tones so that you can craft a sound to suit your personality. ADD A LITTLE BOOST The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone. YOU HAVE THE POWER To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes. TILT YOUR SOUND With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer. CONTROL YOUR TONE Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.

Features

• Amp tubes : 2 x EL34
• Cabinet impedance (Ω) : 16 Ω
• Category : Guitar combo
• Dimensions (mm) : 520 x 240 x 240
• EQ : 3 channels
• Effects loop : Yes
• External cabinet output : Yes
• Footswitch input : Yes
• Input : jack
• Number of channels : 1
• Output : DI jack, 8 Ω cabinet jack, 16 Ω cabinet jack
• Pedalboard included : Yes
• Power output : 20 W
• Pre-amp tubes : 3 x ECC83
• Reverb : No
• Speaker : Close
• Speaker diameter : 10"
• Technology : Tubes
• Weight (kg) : 13.90 kg
• Additional Specs :
• Channels: 1
• Output wattage: High power 20W, mid power approix 3W, low power approx 0,5W
• Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω/8Ω load), DI out (1/4” jack)
• Inputs: 1 x 1/4" jack instrument input, footswitch

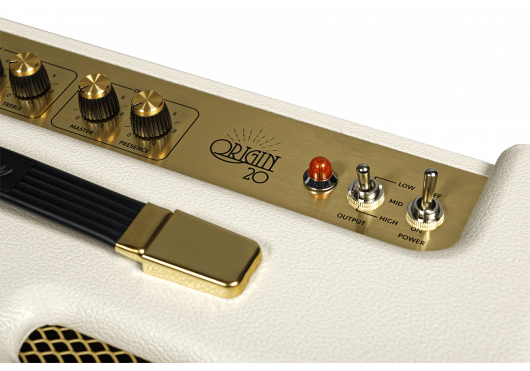

• Controls: Volume, boost, tilt, bass, middle, treble, presence, powerstem
• Effects: None
• Effects loop: Yes, Series, Send/Return
• Preamp valves: 3 x ECC83
• Power amp valves: 2 x EL34
• Speaker configuration: 1x10”
• Speaker model: Celestion V type (16Ω, 50W)
• Cable: Power cable included
• Footswitch: PEDL-90016 included
• Weight: 13,9 kg
• Width: 520 mm
• Height: 440 mm
• Depth: 240 mm
