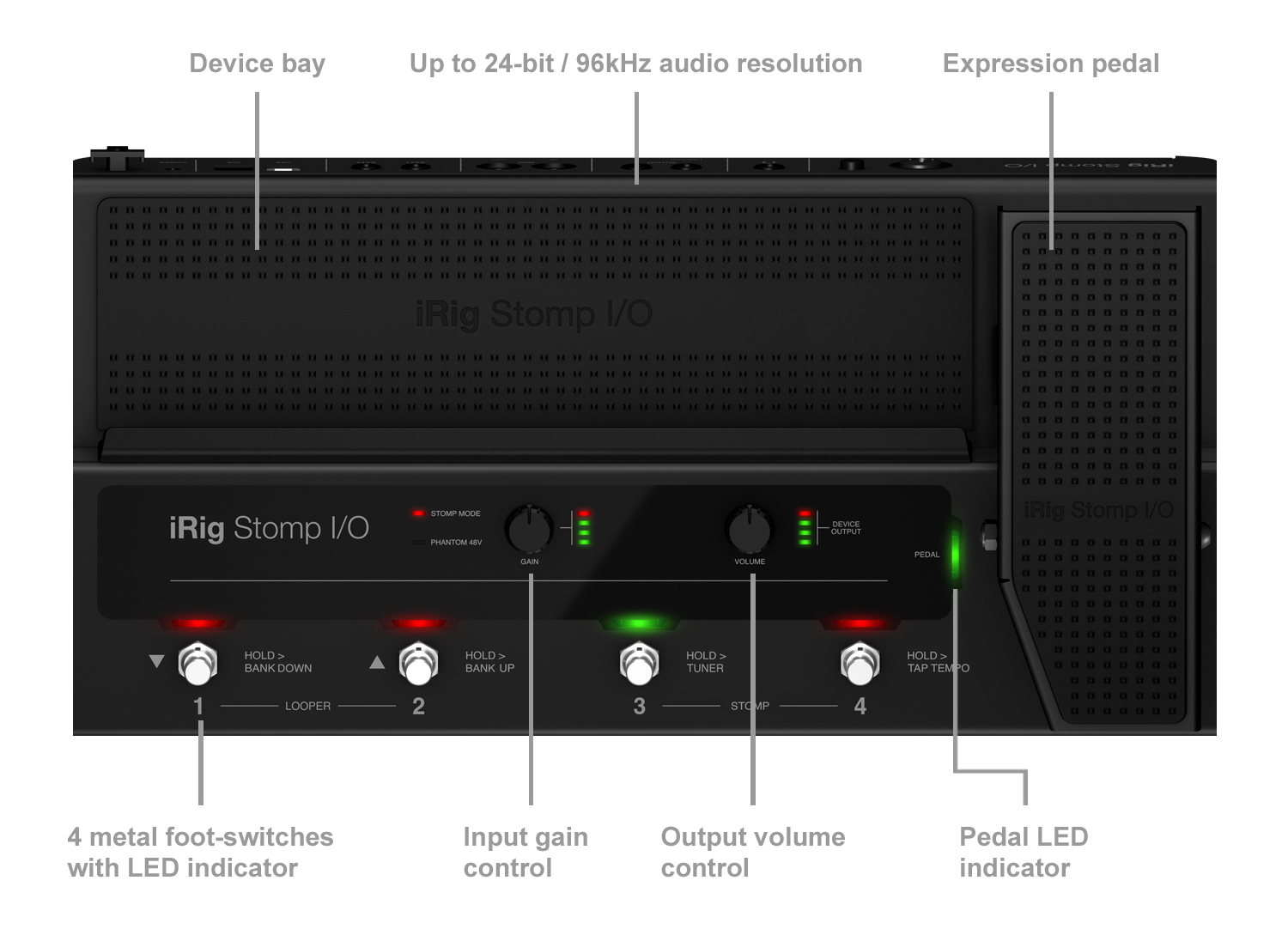

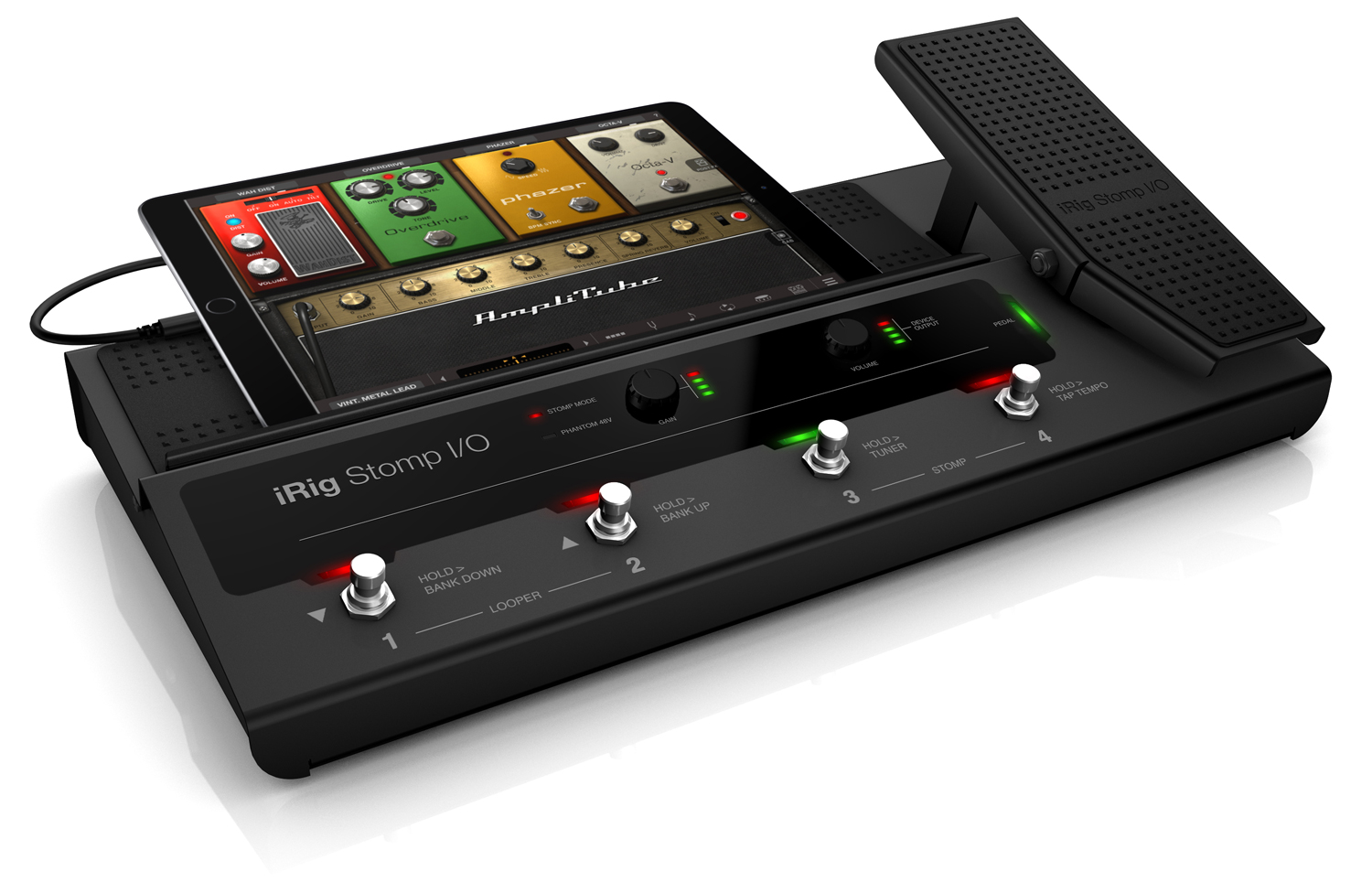

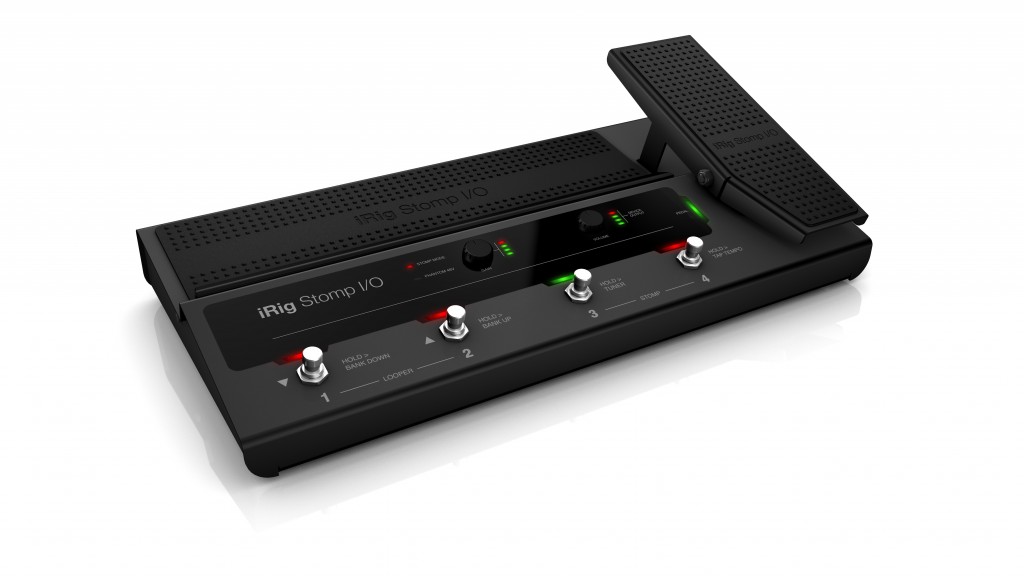

The ultimate floor tone rig. iRig Stomp I/O is a brand new type of USB pedalboard controller that integrates a professional, high-resolution, MFi certified audio interface with MIDI input/output for iPhone, iPad, Mac and PC.
It comes bundled with state-of-the-art guitar, vocal processing, and recording software for flexibility and usability, both live and in the studio.
Common
Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power: USB bus powered (when used with a computer) or DC IN
Device Connection: USB B-Type and Mini-DIN
Enclosure: metal sheet

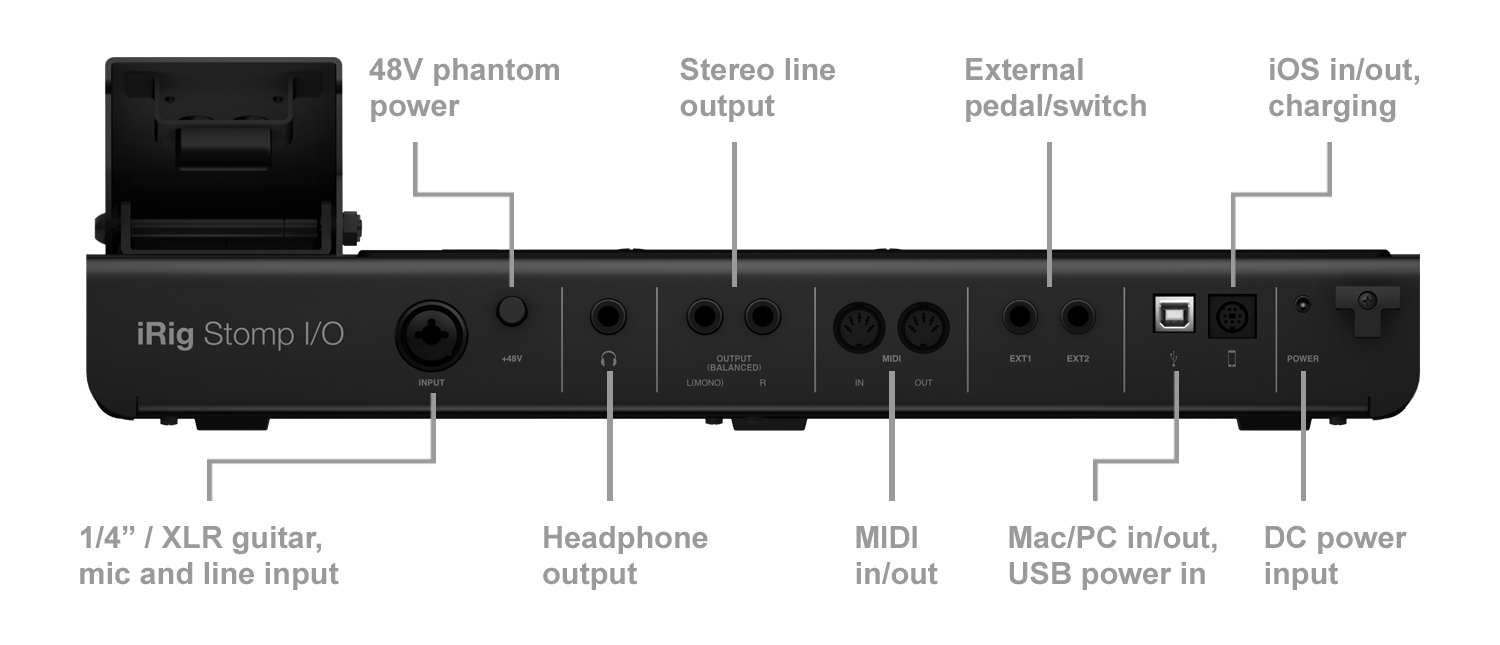

Microphone Input
Connector: balanced female 3-pin XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: approx 2 kOhms
Gain Range: approx 48 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz – 20kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
Connector: unbalanced, Hi-Z, TS 1/4" Jack. Tip: signal / Shield: ground
Instrument Input Level: from 30mVpp to 6.9Vpp
Instrument Input Impedance: 1MOhms
Gain Range: approx 27dB
Frequency response: 20 Hz – 20kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS
Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level control: numbered thumbwheel
Headphone Output Power: 100mW into 50Ohms
Stereo Line Output
Connector: 2x balanced female 1/4" TRS Jack. Tip: hot / Ring: cold / Shield: ground
Maximum Output Level: +16 dBu into 600 Ohms balanced load
Output Impedance: 150 Ohms balanced
Floating Balanced Outputs
MIDI Input/Output
Connector: 2x 5-pin DIN
