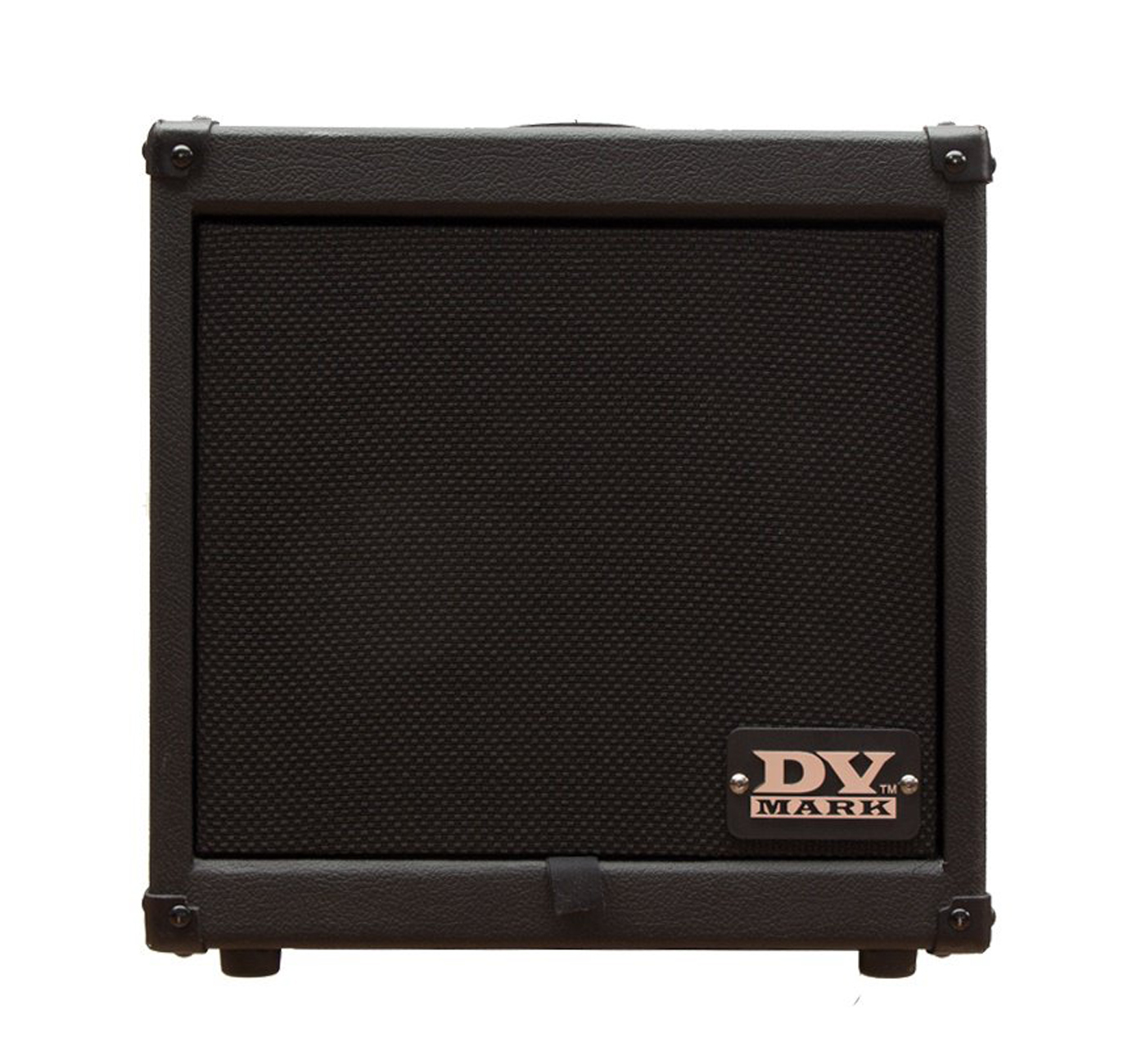

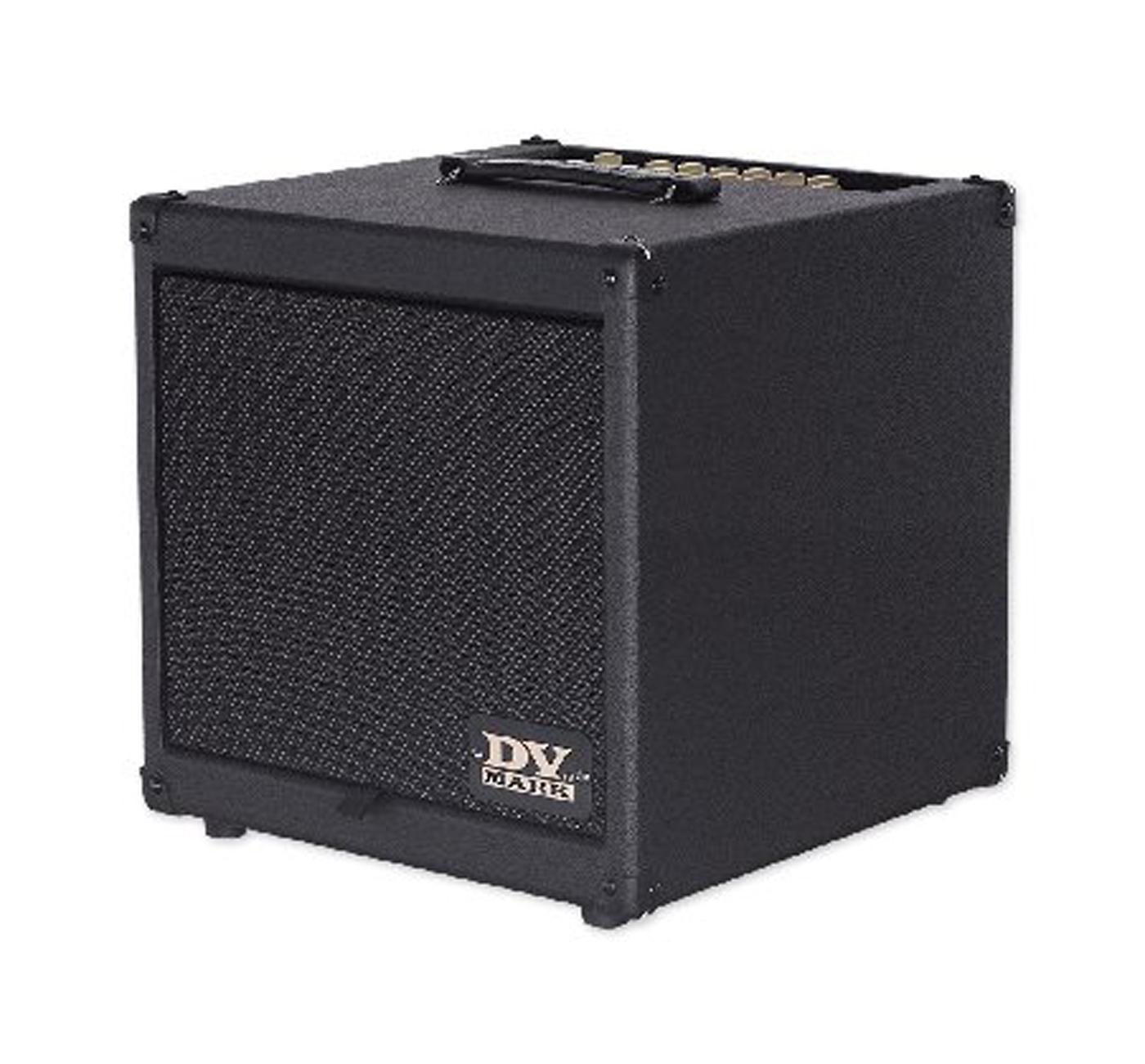

DVMARK AC 101

The DV AC101 (updated version of the Markacoustic AC101) is a compact, powerful combo designed for all
acoustic instruments including acoustic guitar, classical guitar, archtop guitar, acoustic bass, mandolin, violin,
cello, banjo, etc.
The two channels (one of which accepts a mic input) allow to use two pickups, two instruments, or an
instrument and a microphone!
It  includes 48V phantom power, feedback control and phase reverse, adding a new hi-performance compression
driver, pre/post EQ switch for the XLR DI, FX send/return, tuner out and a next generation of digital reverb and
chorus that are sweet-sounding, warm and natural.

The DV AC 101 is manufactured to be sold and used in the country of purchase, and it is factory preset
to that countrys voltage.
Due to homologation issues, the voltage may not be changed.

INPUTS
CHANNEL 1: Impedance 500 Kohm/  Maximum Vpp: 10
CHANNEL 2: Impedance  500 Kohm/  Maximum Vpp: 10
BALANCED CH2: Impedance  500 Kohm/  Maximum Vpp: 20
RETURN: unbalanced, Impedance 33  Kohm// Max 10Vpp

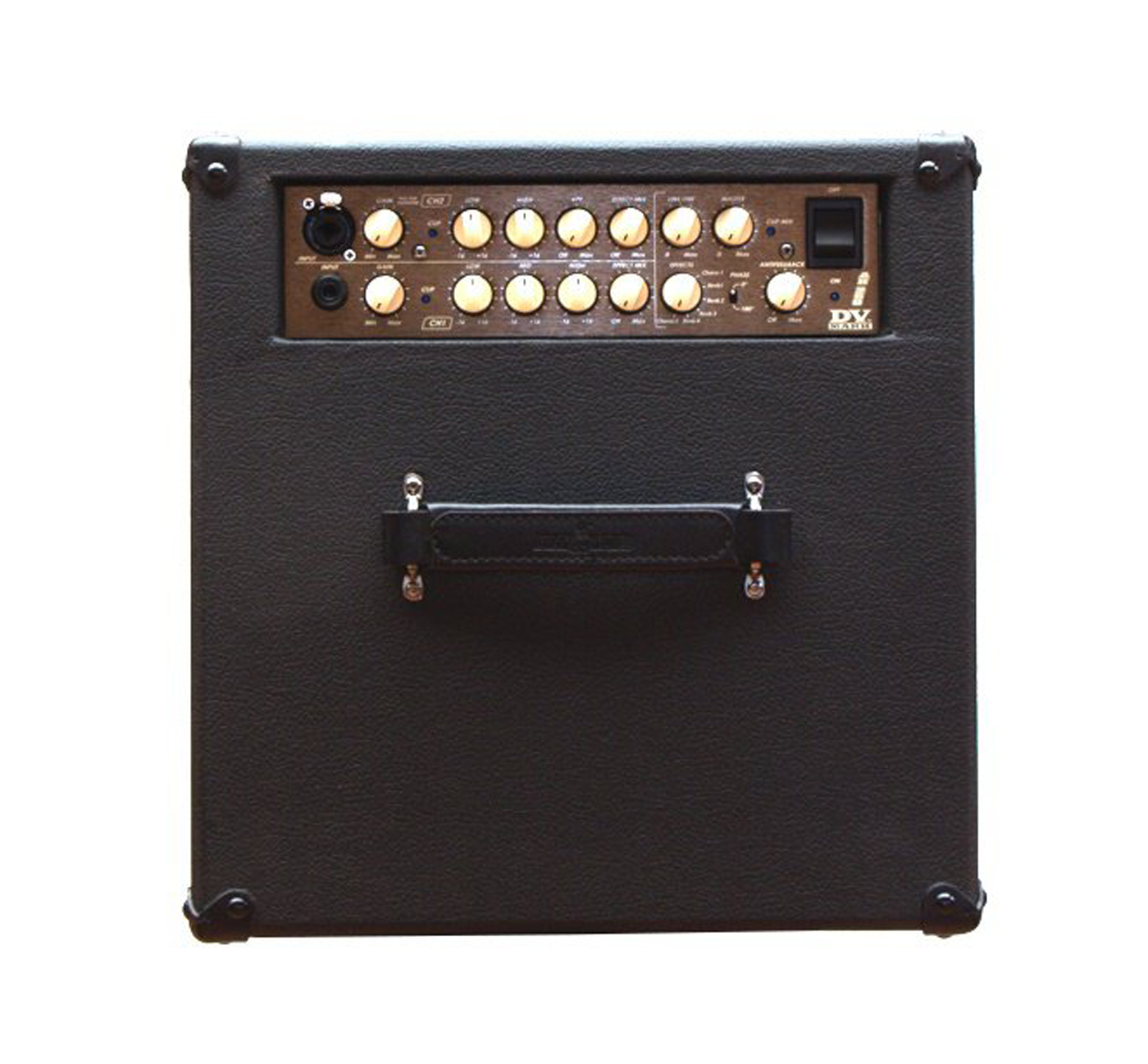

CONTROLS CH1
GAIN: -45dB ¸28 dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level ±16 dB (40 Hz)
MID:  Level ±16 dB (600Hz)
HIGH: Level ±16 dB min  (6 KHz)

CONTROLS CH2
GAIN: -43dB ¸ 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level ±16 dB  (60 Hz)
HIGH: Level ±16 dB min at (5 KHz)

OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz

OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp

SPEAKER: 1x10"
TWEETER: new 1" HF hi-performance compression driver with custom horn

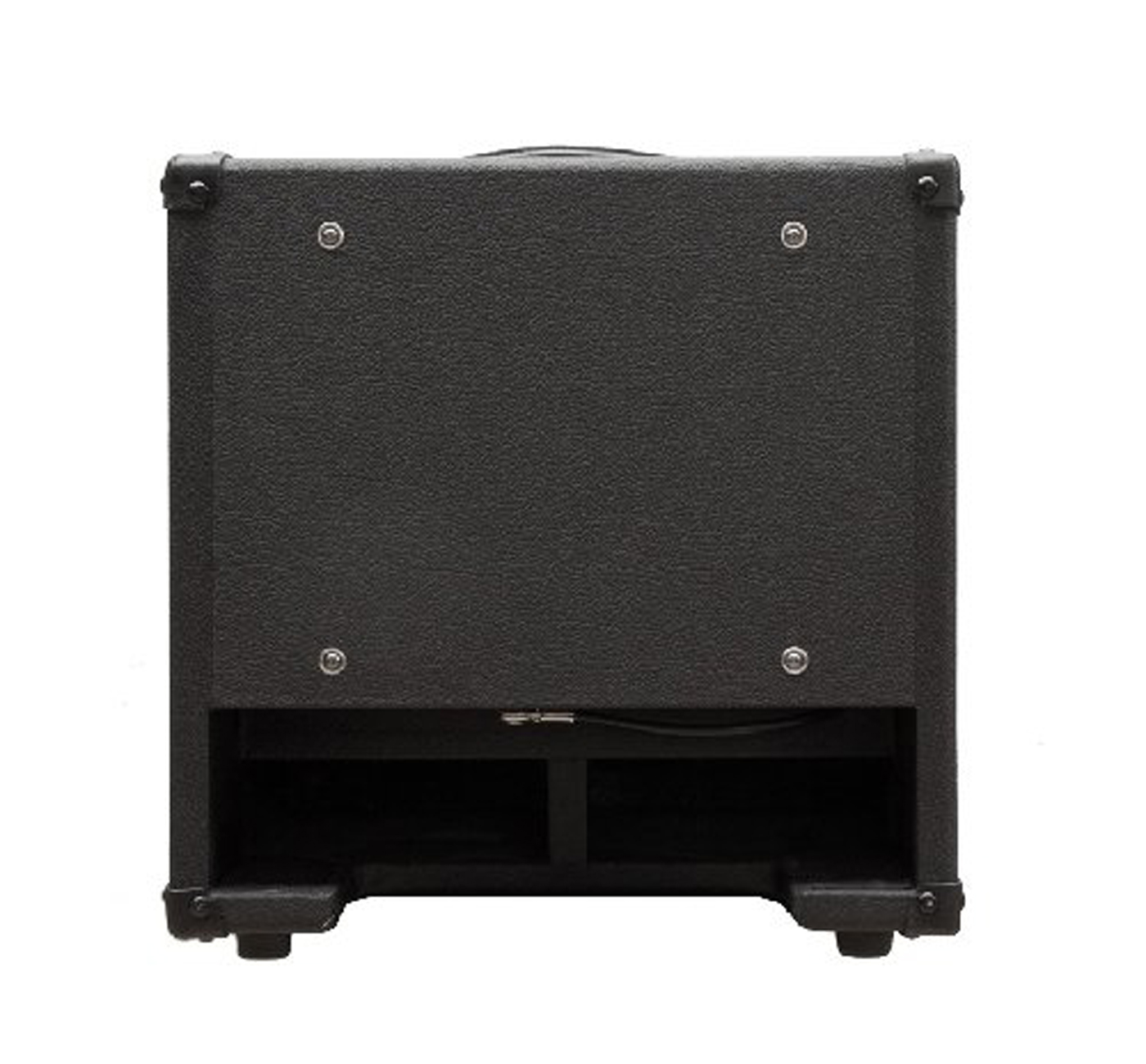

BASS PORT: rear
IMPEDANCE: 8 ohms
SENSITIVITY: 101 dB SPL
SPEAKER POWER HANDLING:
200W RMS (AES Standard)
AMP OUTPUT POWER:
(analog) 250W @ 4 ohm / 150W @ 8 ohm
FREQUENCY RESPONSE: 45 Hz to 20 kHz
CROSSOVER FREQUENCY: 3.5 kHz

ONBOARD DIGITAL EFFECTS

Product specifications are subject to change without notice.
