ADAM LINK

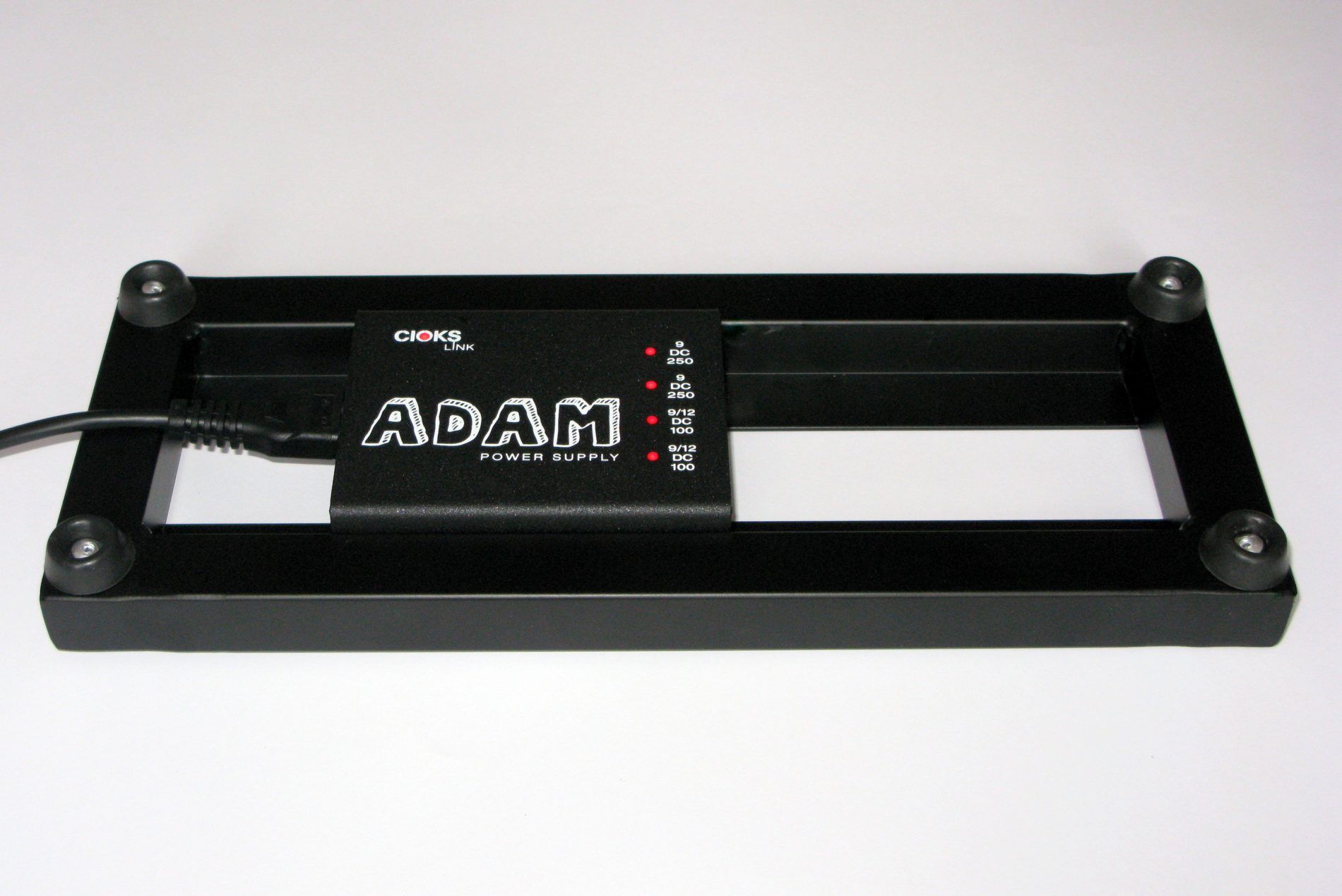

Adam Link is a small and very flat power supply for effect pedals with 4 isolated outlets. Being only 31mm high it fits under the flat Pedaltrain nano, mini, new nano+ and all metro boards. It offers voltages 9 or 12V and a total output current of 700mA. The top two fixed 9V outlets will power any two Strymon or other two medium current pedals. The bottom two outlets, configurable to either 9 or 12V, will power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. If needed, all 4 isolated outlets will give you 9V DC in the default position of the settings switch.

Features

• 4 isolated outlets with 9 or 12V
• Total output current of 700mA
• Two medium current 9V outlets with 250mA each
• Can power any two Strymon pedals
• short circuit protection of all outlets
• LED monitoring of each outlet
• 120 or 230V mains voltage operation
• Detachable mains power cord
• CIOKS unique mains link feature
• ADAM easily adds 4 extra isolated outlets to another link power supply
• Total of 6 Flex cables included
• Split Flex for powering two pedals of one outlet included
• Super flat design, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
• Compatible with Temple Audio pedalboards
• All pedalboard mounting hardware included

specifications

Outlet 1-2: 9 or 12V DC / 100mA each
Outlet 3-4: 9V DC / 250mA each

Size: 115x88x31mm (excl. detachable rubber feet)
Weight: 0,8kg

Warranty period: 5 years worldwide

Order number:
AM    CIOKS ADAM link – Power supply for effect pedals with 4 isolated outlets
