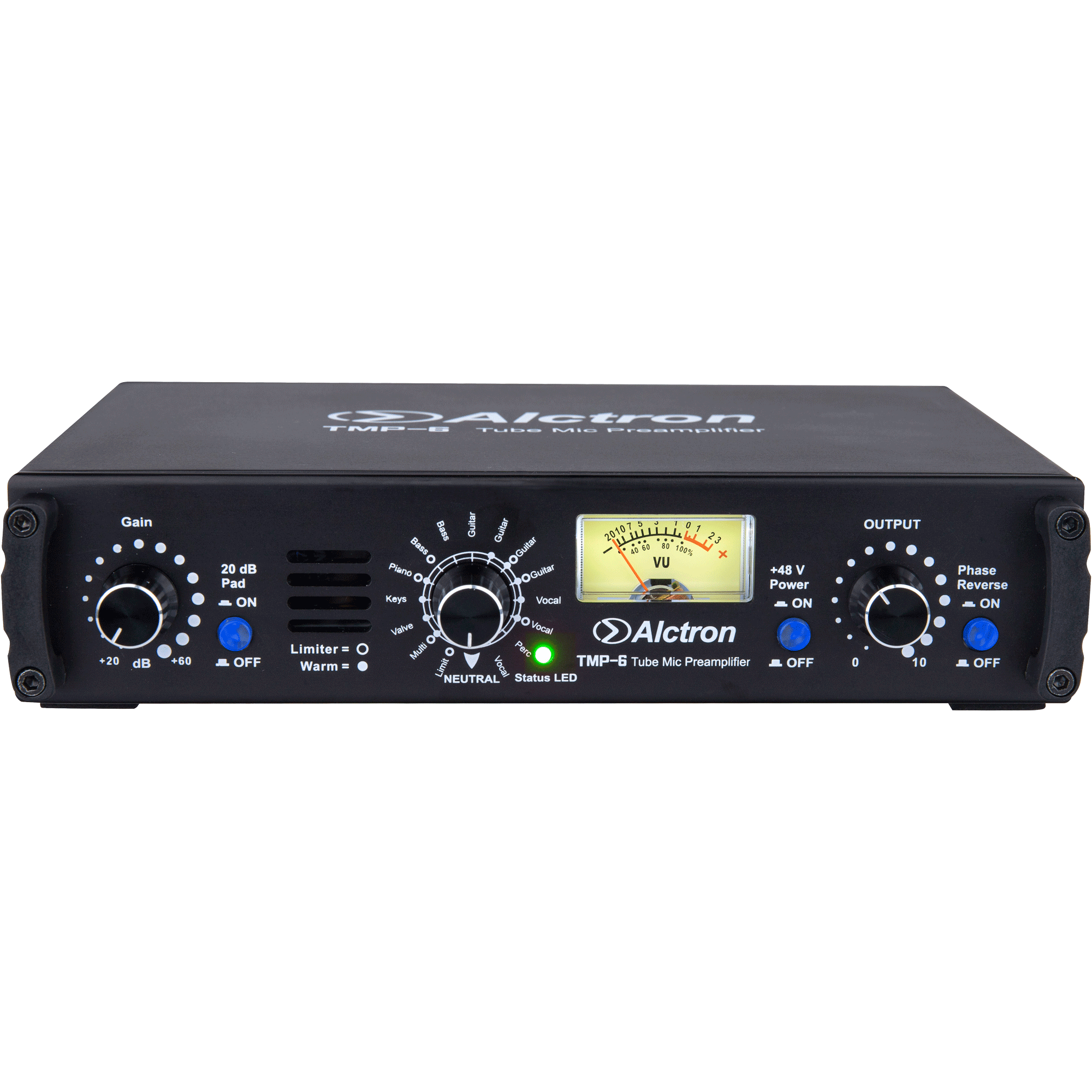

Alctron TMP-6

TMP-6 tube mic preamp is perfect for studio and live applications. Its creative electronic circuit adds the tonal versatilityand catches detail sound quality. The high quality 12AX7B tube amplifies sound in a premium way which makes the output sound more clear and natural. It has 16 different instrument tones for you to choice and two different input channels which make the TMP-6 suitable for more applications. Alum material ensures product sturdy and durable.

Features:

• 12AX7 vacuum tube, softer vocal

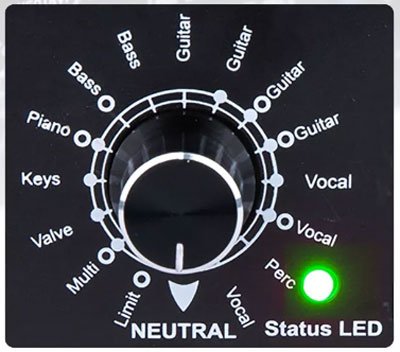

• 16 different modes tone, adjusts the tone convenience
• Built in OPL output limitation, offers output overloading protection
• 60dB adjustable gain, powerful punishment
• Comes with 48V phantom power, phase reverse, low cut

Specification

• XLR input
  • Connector: balanced/unbalanced
  • Type: transformerless, DC-decoupled input
  • Impedance: approx 2kohm
  • Max input level:-7dBu/20dB with pad, 1/4’’
• TRS input
  • Connector: balanced/unbalanced
  • Type: transformerless, DC-decoupled input
  • Impedance: approx 1Mohm
  • Max input level: +16dBu/20dB with pad

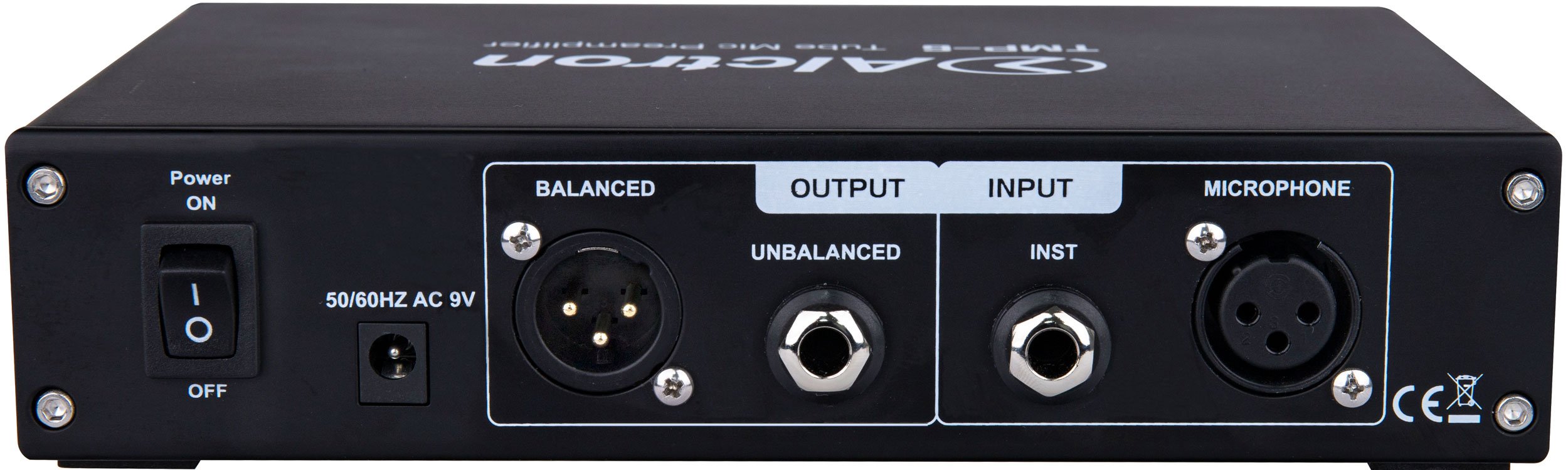

• Audio outputs
  • Connector: XLR and 1/4’’ TRS balanced/unbalanced
  • Type: transformerless, DC-decoupled output
  • Impedance: approx 700ohm bal/approx 350ohm unbal
  • Max input level: approx +16dBu@100kohm
