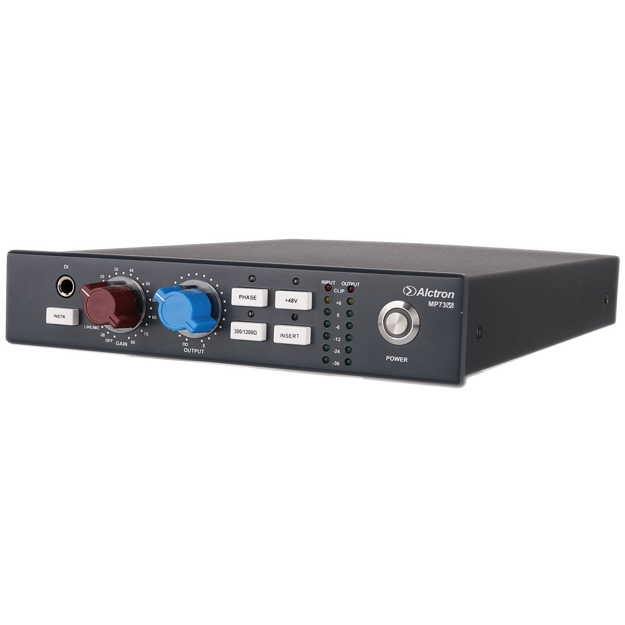

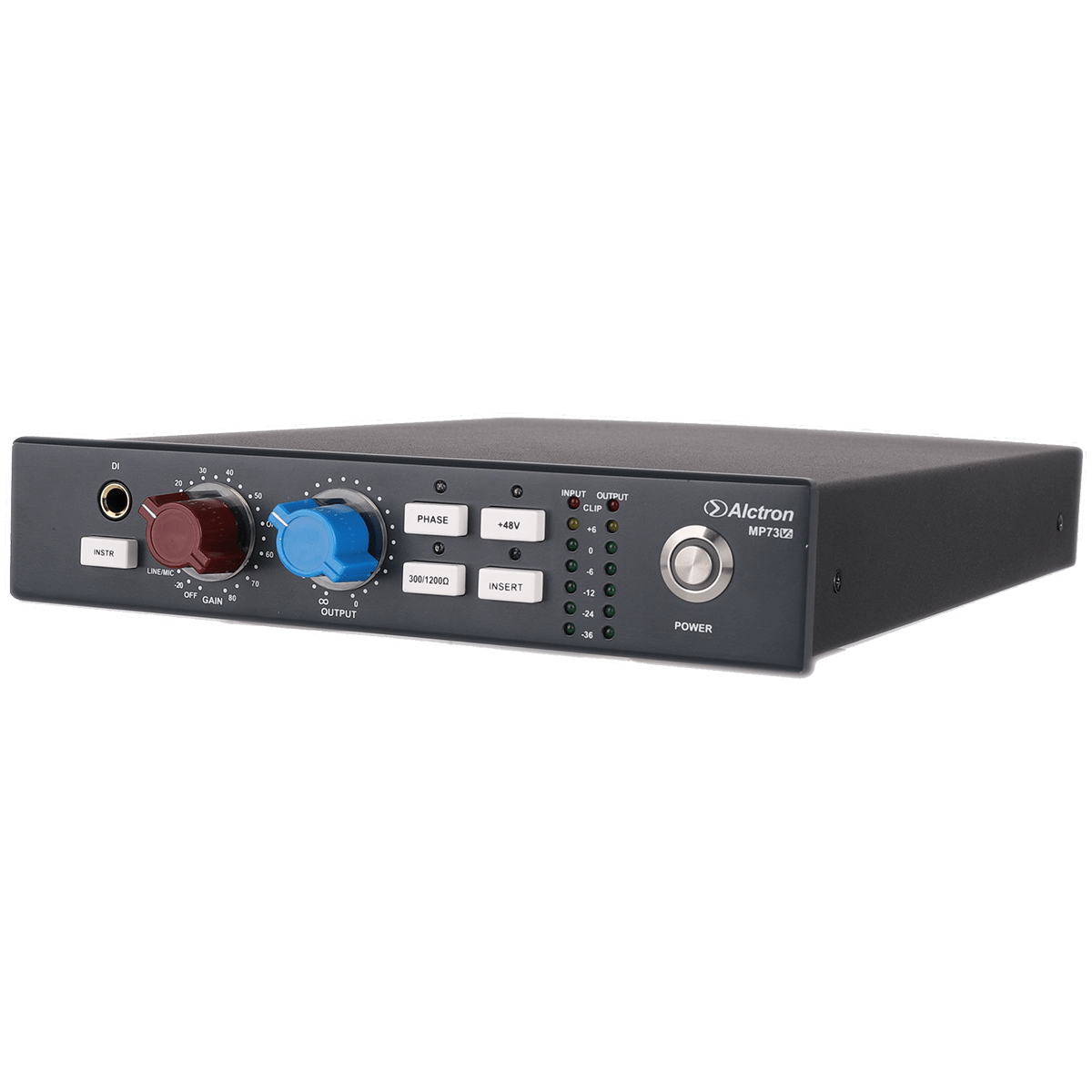

Alctron MP73 V2

MP73V2 is a single channel microphone amplifier. Its fully discrete signal path with three separate transformers for the mic input, line input and line output. Each transformer enhances performance in a way. The classic circuit ensures output sound smoother, natural and warmth. Via various button and knob to adjust the signal which offers ideal sound quality and avoids sound distortion. Its heavy-duty shell makes product sturdy and durable.

Features:

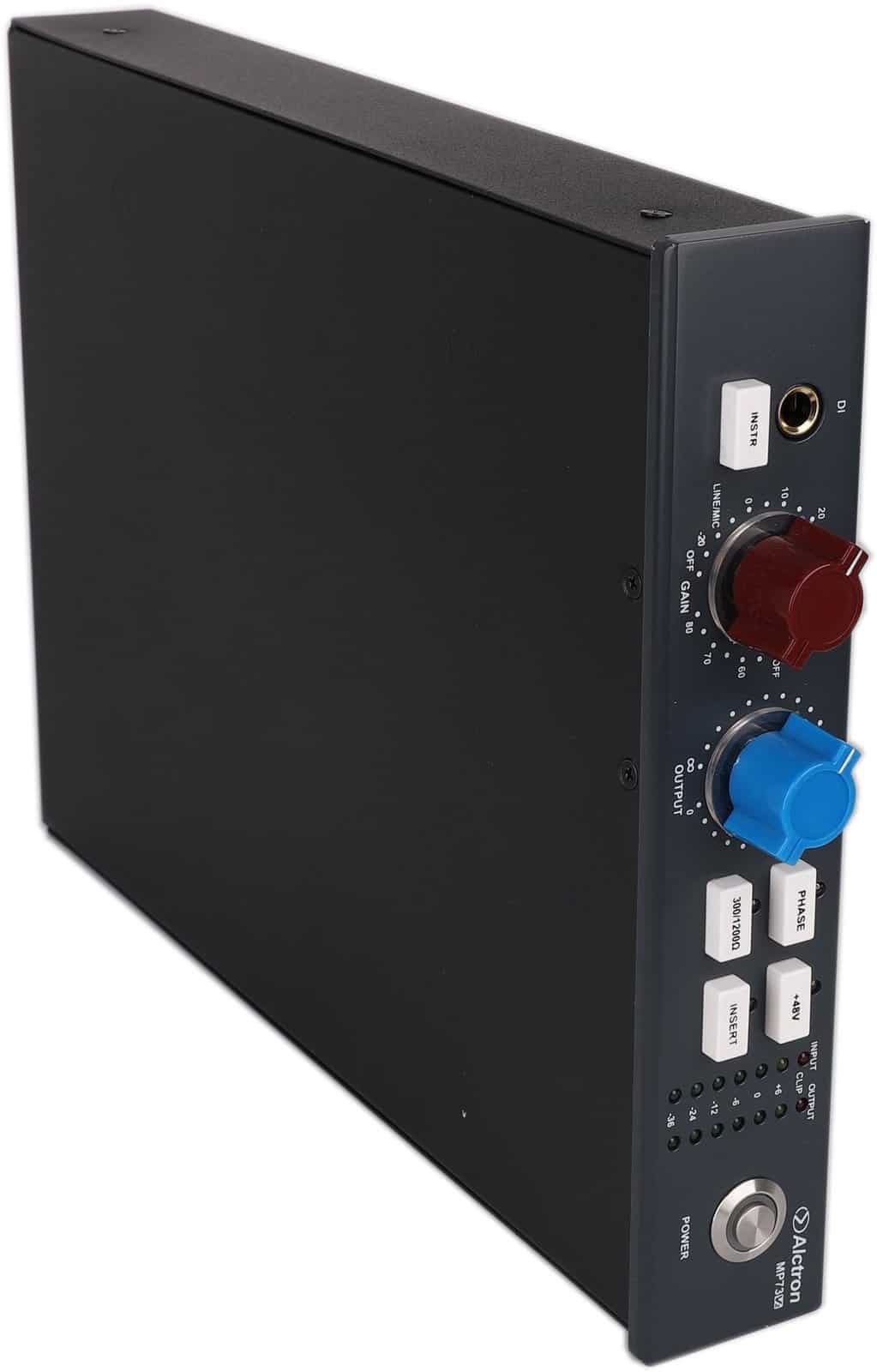

• The chassis is made from high quality steel to provide extra shielding against stray magnetic and RF
• Combines with unique circuit to amplifier ensures output signal more purity and clear

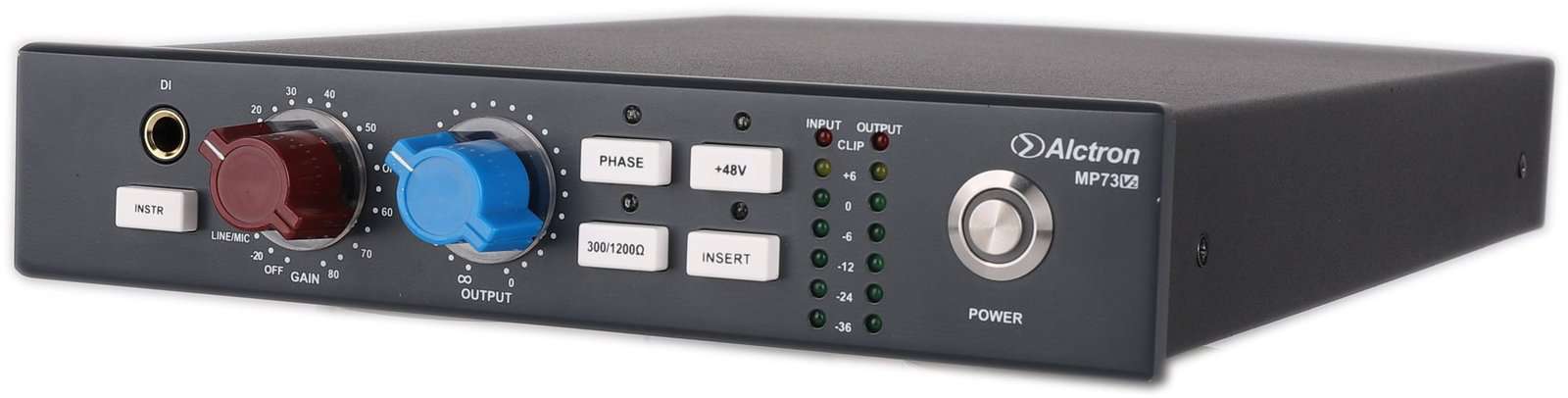

• Features output volume control knob and LED dynamic indicator to avoid distortion and overload
• Mic impedance switchable selection switch to choose the correct impedance to your mic

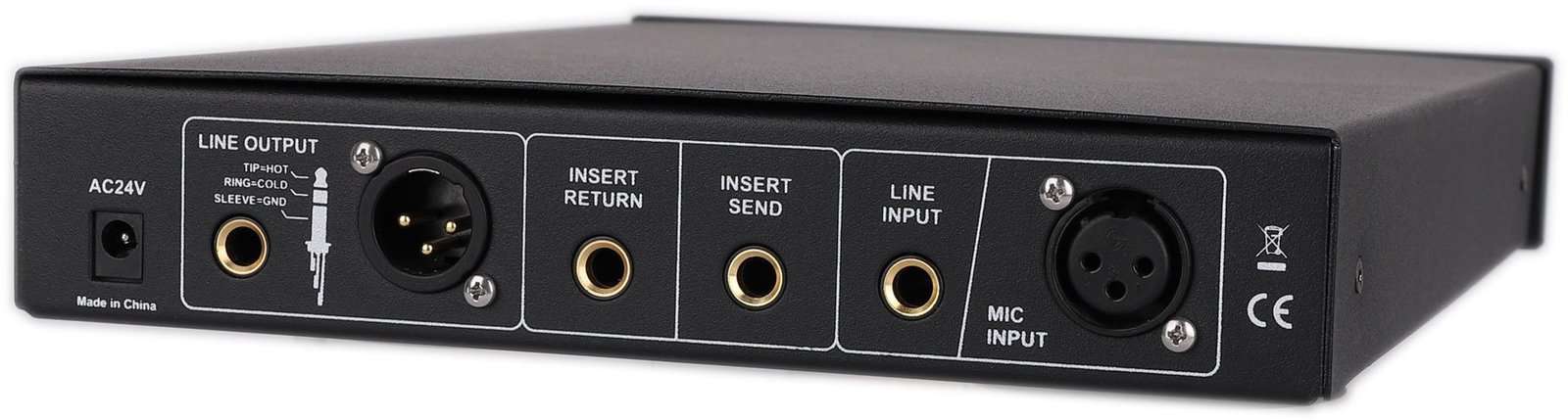

• Individual transformer for input and output connector without any interaction

Specification

• Line input
  • Connector:XLR/6.3 mm TRS
  • Input impedance:10kΩ balanced
  • Gain: -10dB~+20dB
• Mic input
  • Connector:XLR
  • Input impedance:300/1200Ω balanced
  • Gain:+20~±80dB
• Instrument input
  • Connector:6.3 mm TS
  • Input impedance:more than 100kΩ unbalanced
• Analog output
  • Connector: XLR/6.3 mm TRS
  • Output impedance: 75Ω balanced
• Max output level:+21dBu
• Distortion:less than 0.07% @1Khz
• Frequency response:20Hz-20kHz±0.5dB
• Power:AC 24V
